7
① Language
Selects the language for the
control software when the
ANI is in Standalone Mode. In
Standalone Network mode, this
is defined in the MXW System
control software.
② Device Serial Number
Displays the devices serial
number.
③ Firmware Version
Displays the current firmware
version of the device.
④ Reset Button
Reboots the device with factory
default settings.
⑤ Register This Product Link
Click to register the device
at www.shure.com to receive
product and software updates.
⑥ Audio Routing Mode
- MXW Mode: Enables automatic
channel routing when the device is a
part of an MXW group (assigned from
the MXW System control software).
- Standalone Mode: Channels must
be routed manually with Dante
Controller software.
⑦ Device Name
Device names can be customized
with up to 31 characters, except
'=','.' or '@'.
⑧ Addressing Mode
Auto: IP settings are Link-Local
or automatically accepted from a
DHCP server.
Manual: IP settings (IP Address,
Subnet Mask, and Gateway) are
static and are entered manually.
⑨ MAC Address
Unique identifier assigned to each
network interface.
⑩ Port 4 Mode
Configures the Port 4 of the
network interface:
- Switched Mode (default): Full
Ethernet support on port 4.
- Uplink Mode: Only control data
is transported. Multicast traffic for
Dante digital audio and the Shure
Web Device Discovery application is
restricted.
⑪ Front Panel Lockout
Disables the front panel controls
on the hardware. Channels can
still be selected for monitoring at
the headphone jack.
⑫ Password
The default password for the
device is 'admin'.
- Admin (default): Full editing rights.
The Admin can enable or disable a
Tech-level logon.
- Tech: Rights are limited to the Inputs/
Outputs page (hardware functions
only).
- Guest: Monitoring only.
① Channel Name
Channel name is customizable by clicking in the text box. Names can
be up to 12 characters long.
② Input Gain Setting (A, B)
Sets the analog input gain level: Line (default) or Aux.
③ Input Audio Meter
Displays input audio levels prior to the analog-to-digital converter.
④ Mute Button
Mutes or unmutes the channel's audio. The button illuminates red
when a channel is muted.
⑤ Output Gain
Sets the output gain level.
⑥ Output Audio Meter
Displays output audio levels prior to the digital-to-analog converter.
⑦ Attenuation
Output attenuation is adjustable in 1 dB increments.
⑧ Notes
Save project notes here, such as installation dates or IP information.

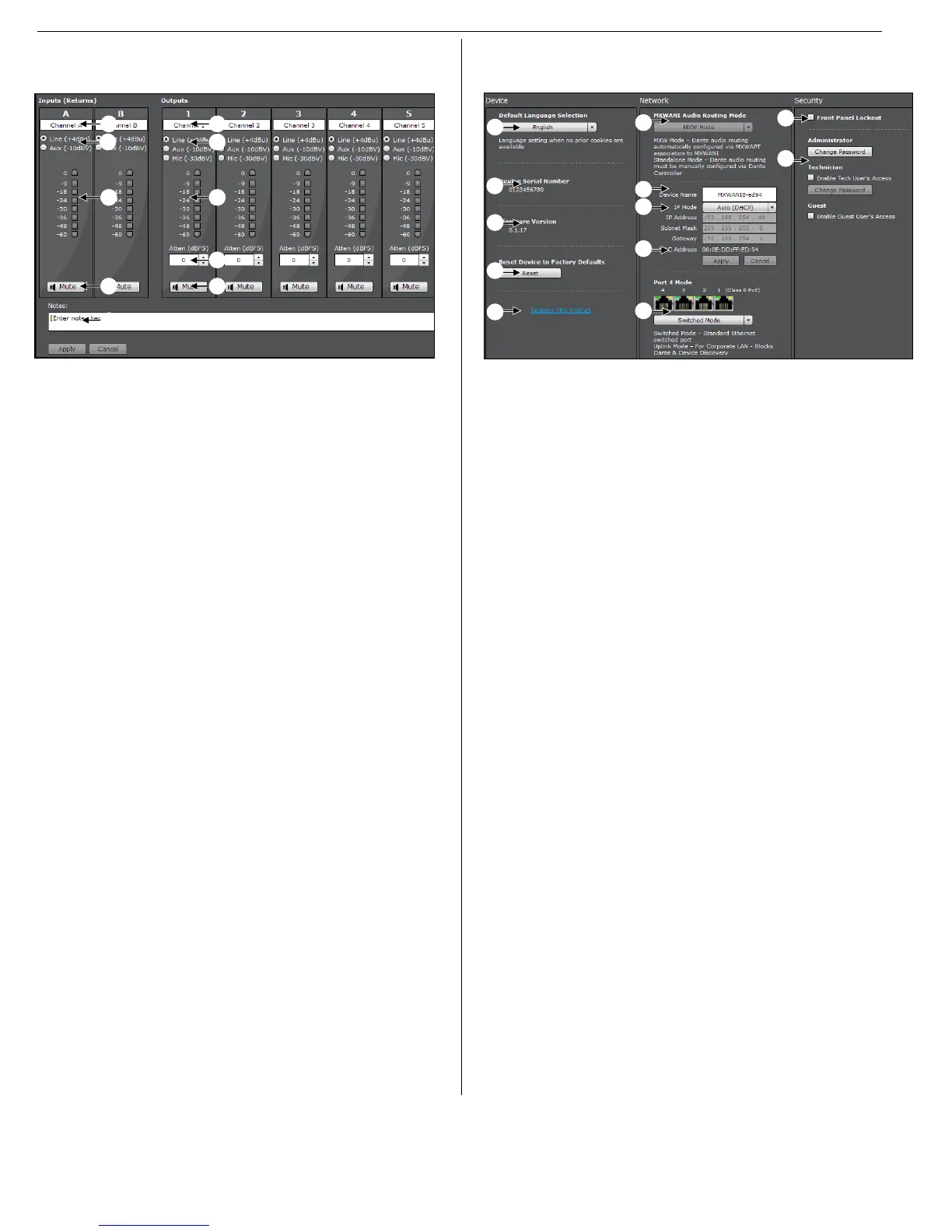

Inputs/Outputs Tab Preferences Tab
③
②
④
① ①
④
⑤
⑥
⑦
③
①
②
④
⑤
⑥
⑩
⑦
⑧
⑨
⑪
⑫
⑧
