PG2 Handheld Transmitter
Power/Mute Button
Power/Mute LED (See LED status below)
Channel Display (Display turns off after 10 seconds to conserve battery)
Channel Button
Battery Cover — Twist counter-clockwise to remove.
Battery Compartment
LED Status Signifies
Green Ready
Amber Mute is on
Red Battery is low
Flashing Red
on startup
Battery dead (must be replaced for transmitter to operate).
Flashing Green
and Red
Controls are locked
Flashing Amber
and Red
Mute is on and battery is low
Changing Battery
• Expected life for a 9 volt alkaline battery is approximately 8 hours.
• When the Power/Mute LED glows red, the battery should be replaced immediately.
Adjusting Gain
• Access the Gain Adjustment Switch by unscrewing the microphone head.
Use the tip of a pen or a small screwdriver to move the switch. (See fig. 4)
• The switch can be positioned in two gain settings on the PG2:
Gain Setting Suggested Uses
0dB For quiet to normal vocal performance.
–10dB Use only if audio is distorted due to high vocal
levels.

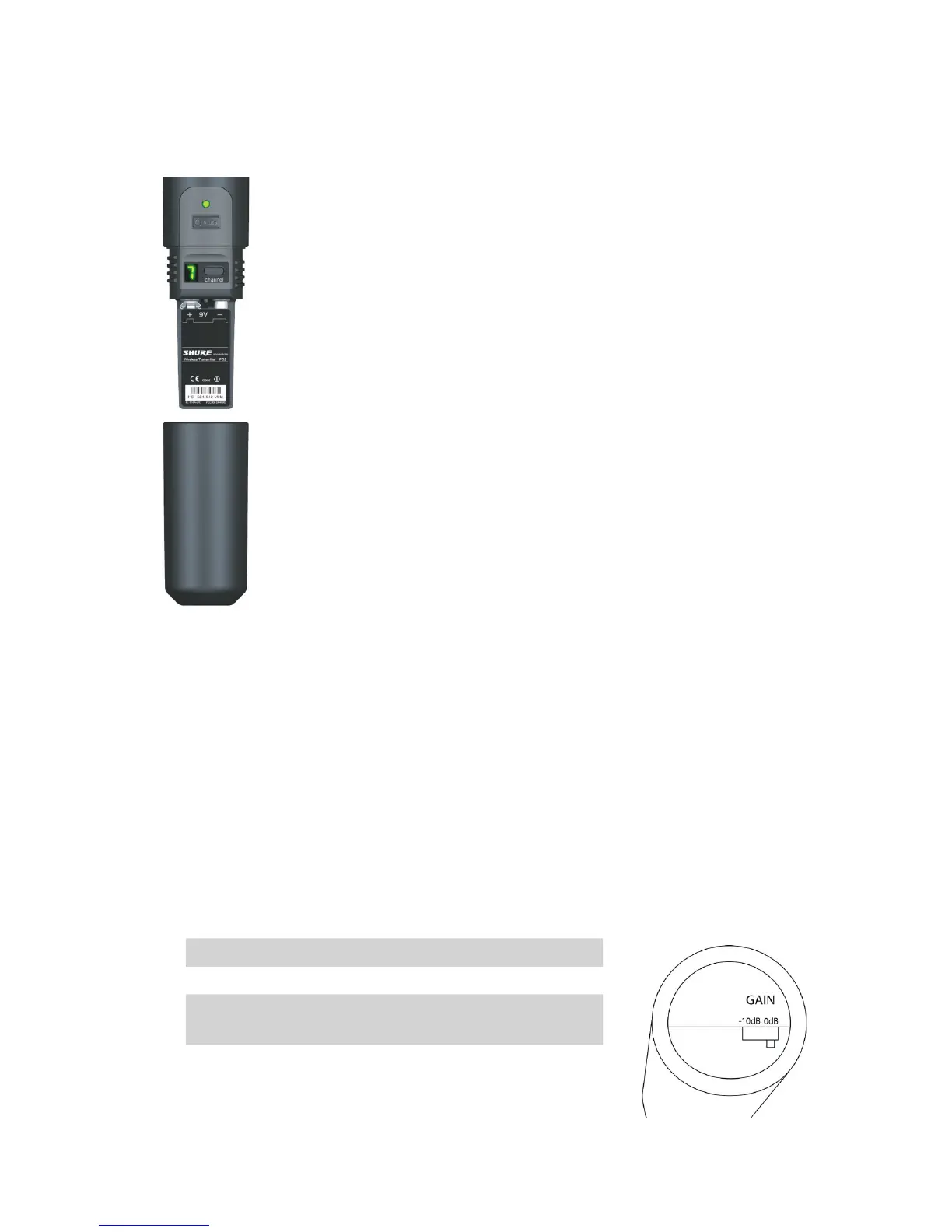

Figure 3.
Figure 4.
