Siemens RDF210 User Manual

Product standards
Automatic electrical controls for household
and similar use
Special requirements for temperature-
dependent controls
EN 60 730 – 1
EN 60 730 – 2 - 9
Electromagnetic compatibility
Emissions
Immunity
IEC/EN 61 000-6-3
IEC/EN 61 000-6-1
Devices of safety class II to EN 60 730
Pollution class normal
Degree of protection of housing IP 30 to EN 60 529
Connection terminals solid wires or prepared
stranded wires
2 x 0.4-1.5 mm
2
or 1 x 2.5
mm
2
Weight 0.28 kg
Color of housing front white, NCS S 0502-G (RAL
9003)
General
Connection terminals
LB1*M
N Q1Q2Q3 Y11N
3058G01
Y12
AC 230 V
L, N Operating voltage AC 230 V
B1* Changeover (QAH11.1+ ARG86.3) or
external room temperature sensor
(QAH11.1 / QAA32)
M Measuring neutral for sensor
Q1 Control output “Fan speed 1 AC 230 V
Q2 Control output “Fan speed 2 AC 230 V
Q3 Control output “Fan speed 3 AC 230 V
Y11 Control output “Valve” AC 230 V (N.O.,
for normally closed valves) or output for
compressor
Y12 Control output “Valve” AC 230 V (N.C.,
for normally open valves)
* Only with RDF210 or RDF210/IR

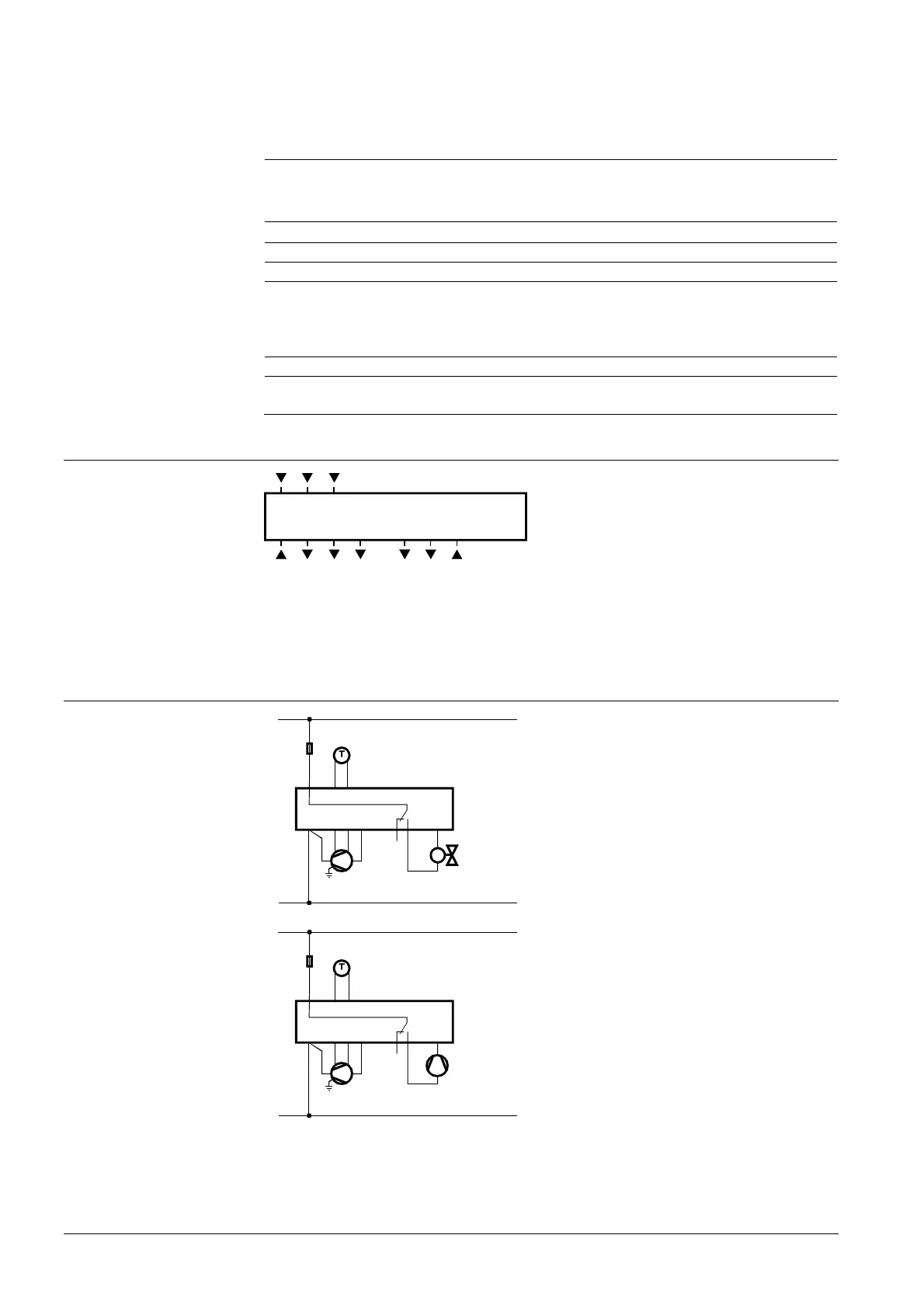

Connection diagrams
Application:
2-pipe fan coil units
L
N
/ QAA32
QAH11.1 +
ARG86.3
10 A
L
B1
M
N Q1Q2Q3 Y11 N
4(2)A
max.
4(2)A
max.
I II III
AC 230 V
Y12
*
*
RDF210
3
0
5
8
A
0
1
B1/B2
M1
Y1
N1
B1* Return air temperature sensor (QAH11.1)
or external room temperature sensor (QAA32)
B2* Changeover sensor (temperature sensor
QAH11.1 + changeover mounting kit
ARG86.3)
M1 3-speed fan
N1 Room temperature controller RDF210..
Y1 Zone valve
* Only with RDF210 or RDF210/IR
Application:
Compressor
in DX type equipment
L
N
QAH11.1 +
(ARG86.3)
/ QAA32
10 A
LB1M
N Q1Q2Q3 Y11 N
4(2)A
max.
4(2)A
max.
I II III
AC 230 V
Y12
*
*
RDF210
3
0
5
8
A
0
2
M1
C1
B1/B2
N1
B1* Return air temperature sensor (QAH11.1)
or external room temperature sensor (QAA32)
B2* Changeover sensor (temperature sensor
QAH11.1 + changeover mounting kit
ARG86.3)
M1 3-speed fan
N1 Room temperature controller RDF210..
C1 Compressor
• Only with RDF210 or RDF210/IR
Note: For compressor applications, RDF210 or
RDF210/IR is recommended
14/15
Building Technologies Room Temperature Controllers N3058en
HVAC Products 10.01.2006
