Installing the Device
2.5.2Wiring Examples
c. Connect the ground wire to the
chassis/ground terminal on the
terminal block.
4. Connect the chassis ground screw to ground (Potential Earth). It is recommend-
ed to terminate the ground connection with an M4 ring or spade lug, and then
torque to 1.7 N·m (15 lbf-in).
2
1
1
M4 Screw
2
M4 Ring Lug

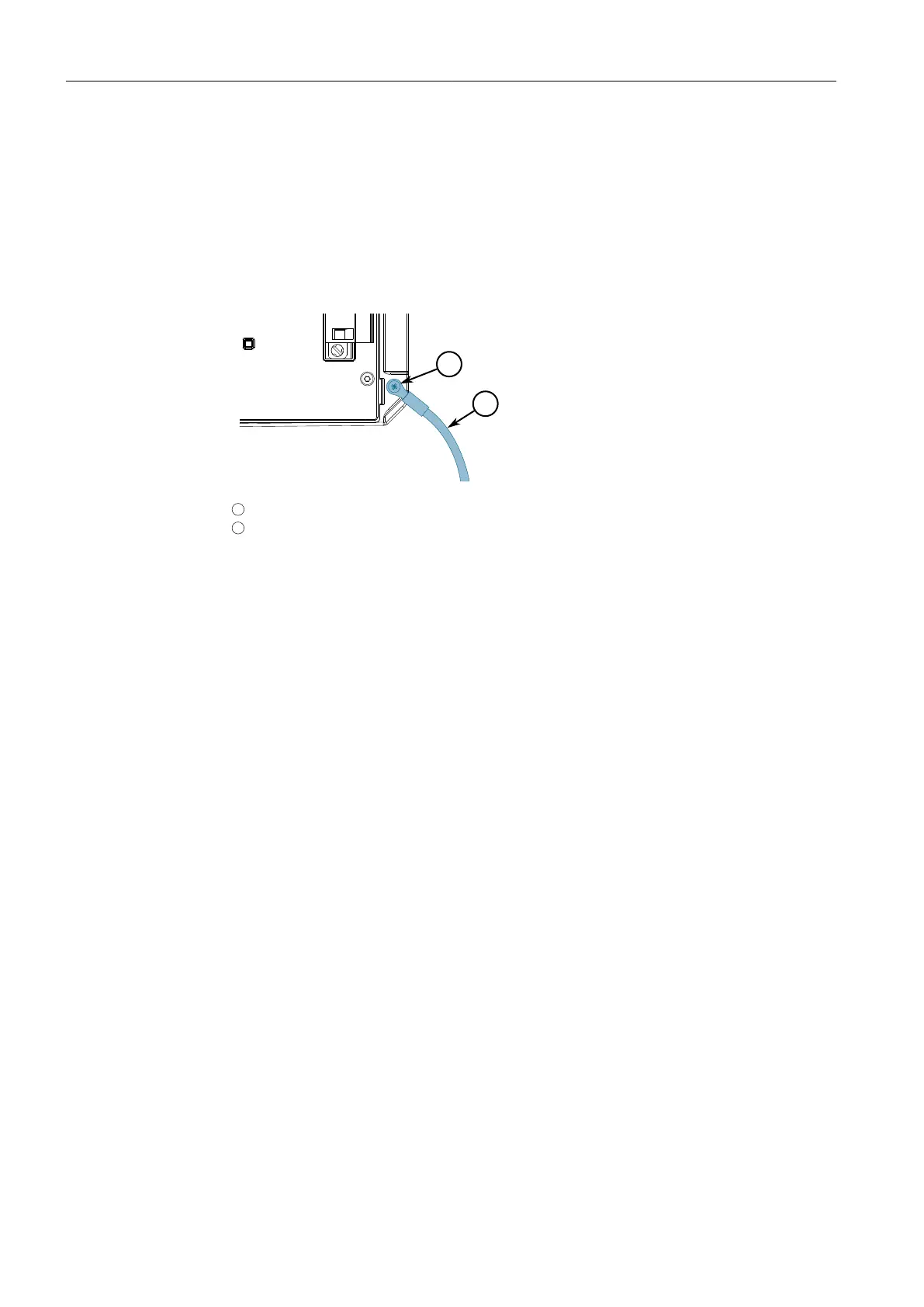

Figure2.10 Chassis Ground Connection
5. Connect the power cable to the power source.
2.5.2 Wiring Examples
The following illustrate how to connect single and dual power supplies to the device.
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
15
