Removal
To remove the device from the DIN rail, follow the steps below:
1. Disconnect all connected cables.
2. Pull out the terminal block for the power supply.
3. Lever the catch on the underside of the device approximately 5 mm out using a screwdriver
4. Pull the lower part of the device away from the DIN rail.

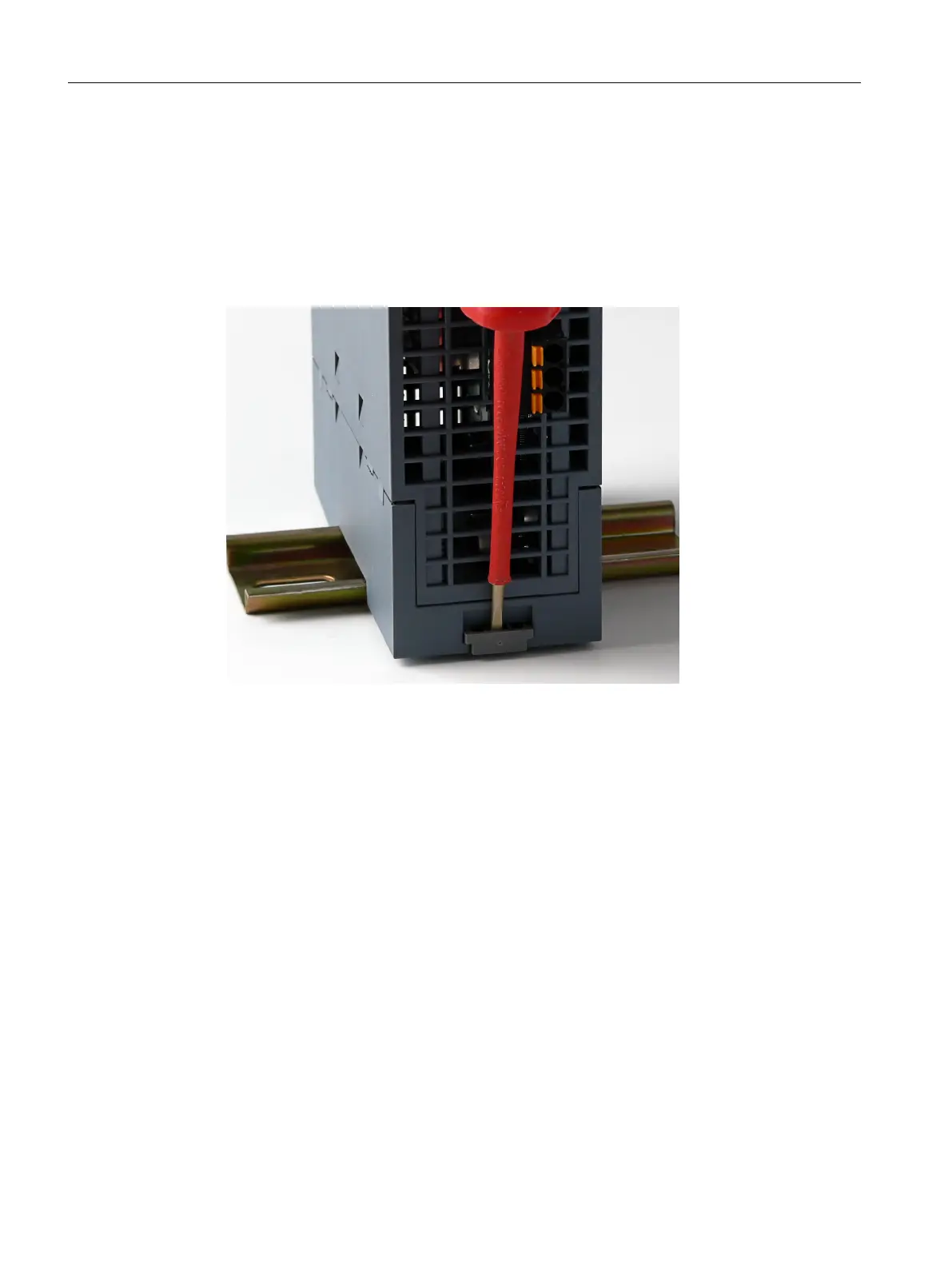

Figure 5-3 Removal from a 35 mm DIN rail
5.4 Wall mounting
To mount the device on a wall, you require the following:
• 2 wall plugs, 6 mm in diameter and 30 mm long
• 2 washers
• 2 screws 3.5 mm in diameter and 35 mm long
To mount the device on a wall, follow the steps below:
Assembly and disassembly
5.4 Wall mounting
SCALANCE XB-000
42 Operating Instructions, 01/2022, A2B00077300-11
