Dimension drawings
9.2 SCALANCE XR528-6M
SCALANCE XR-500
96 Operating Instructions, 05/2017, A5E03275845-11
9.2
SCALANCE XR528-6M

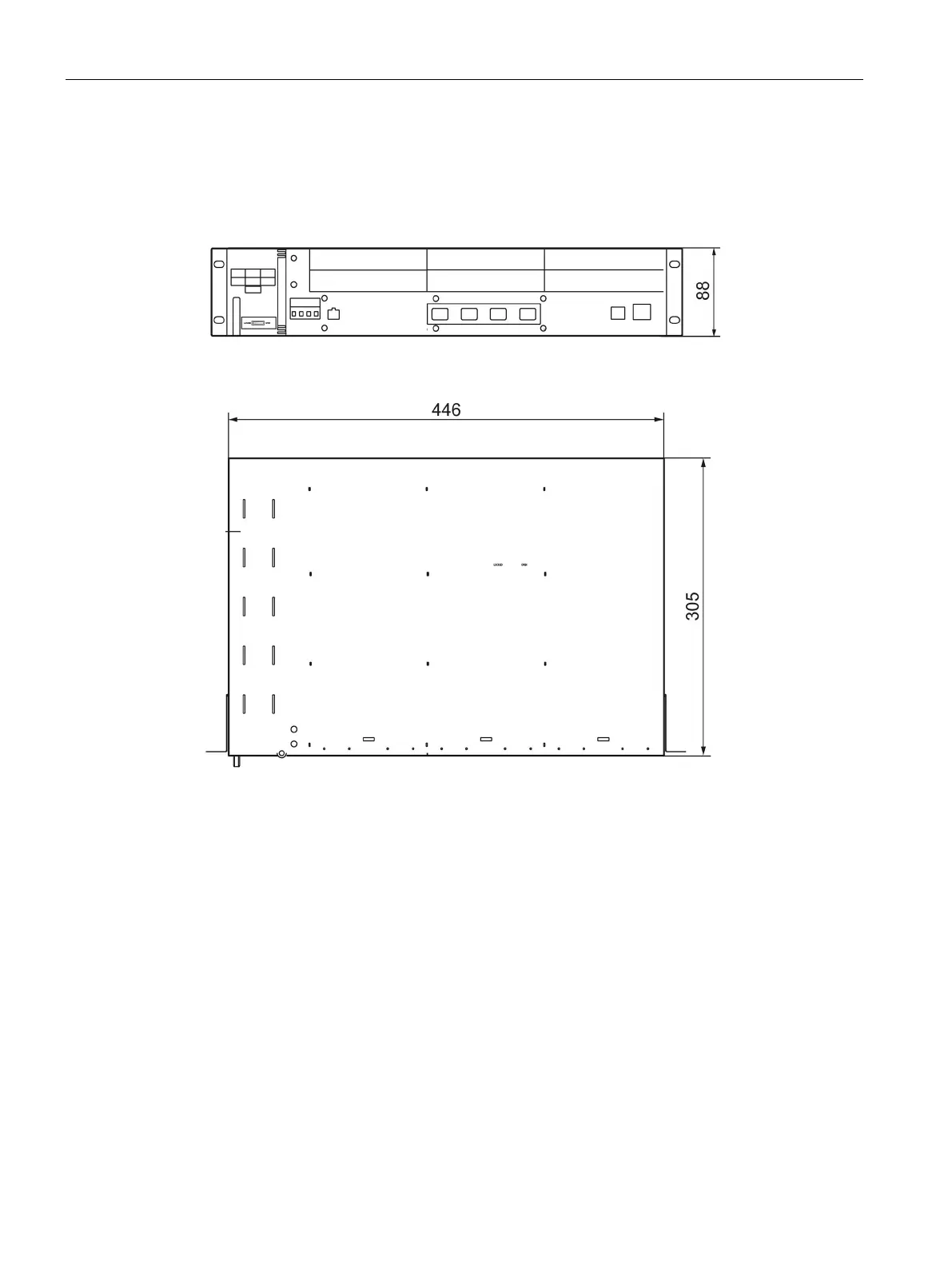

View from front and above
Dimensions are specified in mm.
