43/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Commissioning 01.2002
5.2 Checklist prior to start
What
ü
üü
ü
Is the output of the VSD ≥ motor rating?
Is the operating voltage range ok?
Is the rated voltage of the SED2 greater than the motor rated voltage?
Is the cross-section of the mains cable correct?
Are the cross-section and the length of the motor cables correct, and are
they connected properly?
Are all control lines connected properly?
Is the motor not blocked mechanically?
Is the medium (water) available for the pump actuator? (No dry run!)
Is there no pumping or blowing against still open valves or dampers?
Is the danger zone free of items or personnel?

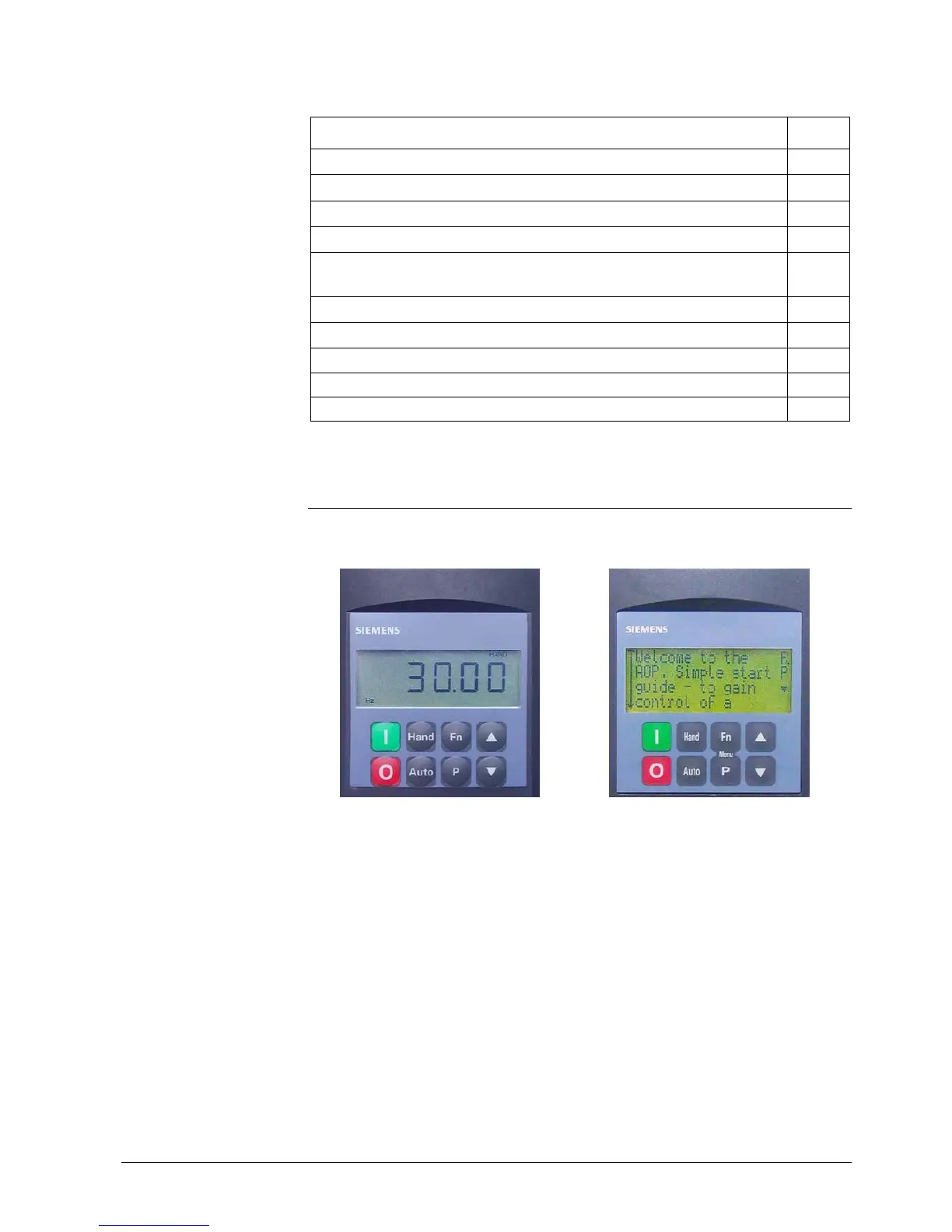

5.3 Operator panels for the SED2
The SED2 comes with the Basic Operator Panel (BOP) mounted as standard. An
advanced operator panel (AOP) is available as an option.
Basic operator panel
Advanced operator panel
5.3.1 Description of the basic operator panel (BOP)
The basic operator panel (BOP) provides access to the parameters of the VSD and
allows for application-specific settings of the SED2.
The parameters and measured values are shown in a 5-digit LCD display. The basic
operator panel can be mounted directly onto the variable speed drive or, alternatively, it
can be mounted into a control cabinet door using a special installation kit.
You cannot store parameter information with the basic operator panel.
For information on setting and changing parameters, refer to section 5.4.4.2 Setting
parameters with the BOP or AOP.
