Defines the time delay between the bypass alarm OFF and the bypass switching
contactor OFF. See bypass diagram below.
Setting range: 0 to 300 s
Recommended setting: 1 s (factory setting).
P1264
Defines the time delay between the bypass alarm ON and the VSD switching contactor
OFF.
See bypass diagram below.
Setting range: 0 to 300 s
Recommended setting: 1 s (factory setting).
P1264 P1262 P1262P1263
t(s)
(Bypass request)
Bypass contactor
VSD contactor
Alarm
5192D03en
Complete parameter setting by changing over to automatic control.

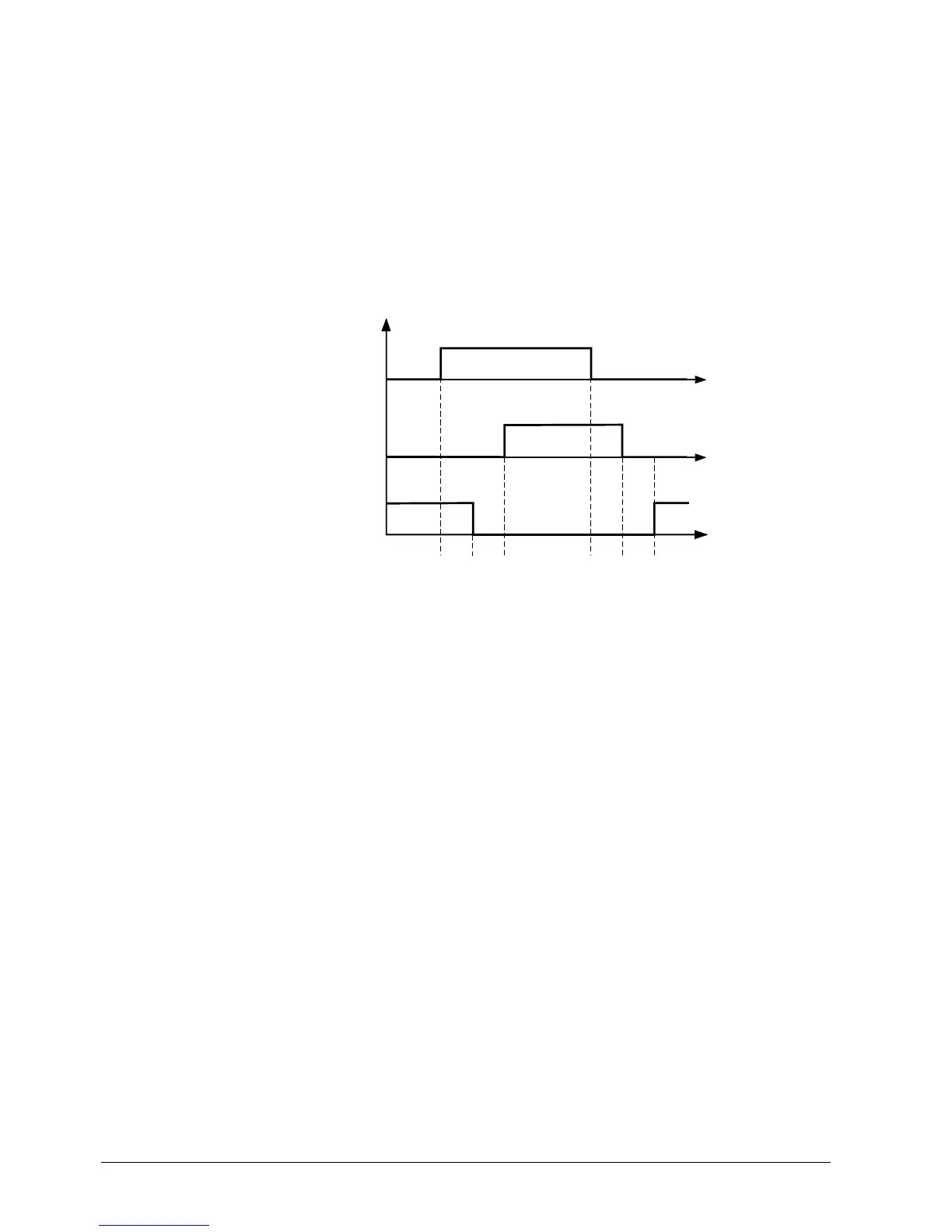

Bypass time diagram
