SIMATIC IPC477E frameless
A5E50148832-AA, 10/2020
13

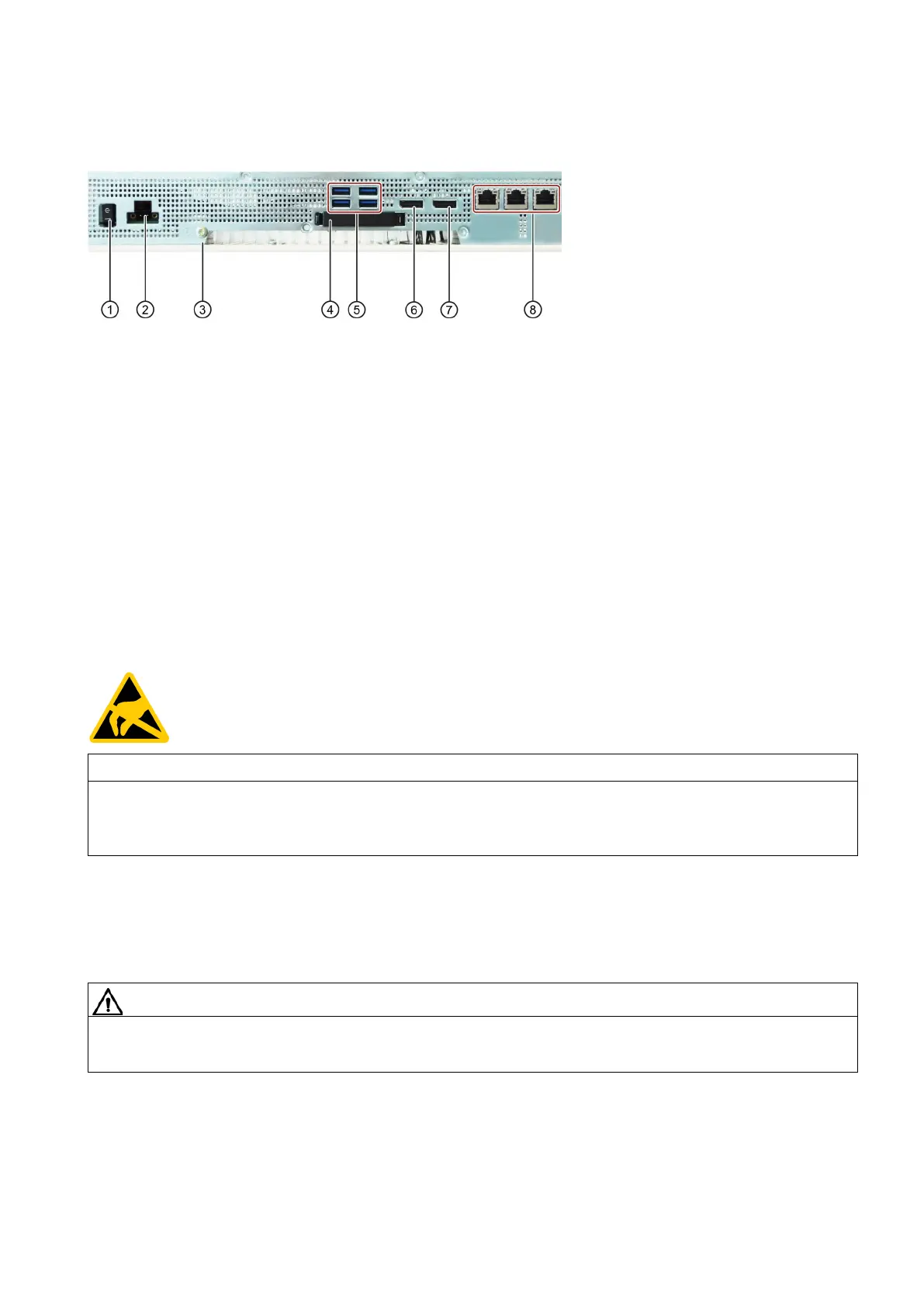

Interfaces
IPC devices with 24 V DC power supply
Protective conductor connection
Slot for external CFast card
USB 3.0 high speed/high current
3 x RJ45 (10/100/1000 Mbps)
Safety instructions and further information
The general safety instructions in the underlying operating instructions apply, see section "Validity (Page 12)".
ESD note
ESD Guideline
Electrostatic sensitive devices (ESD)
The frameless front is open at the back: When you touch electrostatic sensitive components, you can destroy them through
voltages that are far below the human perception threshold.
Observe the ESD guidelines described in the operating instructions of the standard device.
Mounting and connecting the device
Permitted mounting positions
Fire protection enclosure requirement not fulfilled
The device enclosure does not fulfill the requirement of a fire protection enclosure in any mounting position. With respect
to fire protection, it therefore cannot be installed without an additional fire protection cover.
The mounting positions described below are permitted for the device. For information on the maximum permissible ambient
temperatures during operation, refer to section "Environmental conditions (Page 22)".
