Electrical connection
8.3 System integration
1FK2 synchronous motors for SINAMICS S120
Configuration Manual, 06/2019, A5E46927724B AB
103
Table 8- 4 Rotation range of the signal connector ②
Motor
Connector size of
the signal connect-
or ②
Angle β
Angle β'
Drawing
1FK2❑03
M17
209
25
See table "Rotation range of the power
connector"
1FK2❑04 205 25
1FK2❑05
215
48
1FK2❑06
215
41
1FK2❑08
215
46
1FK2❑10
215
57
210 48
Table 8- 5 Maximum rotating torque for the connectors
Connectors
Max. torque when rotating
Connector M17
8 Nm
Connector M23
12 Nm
Connector M40
20 Nm
8.3.2
Power connection

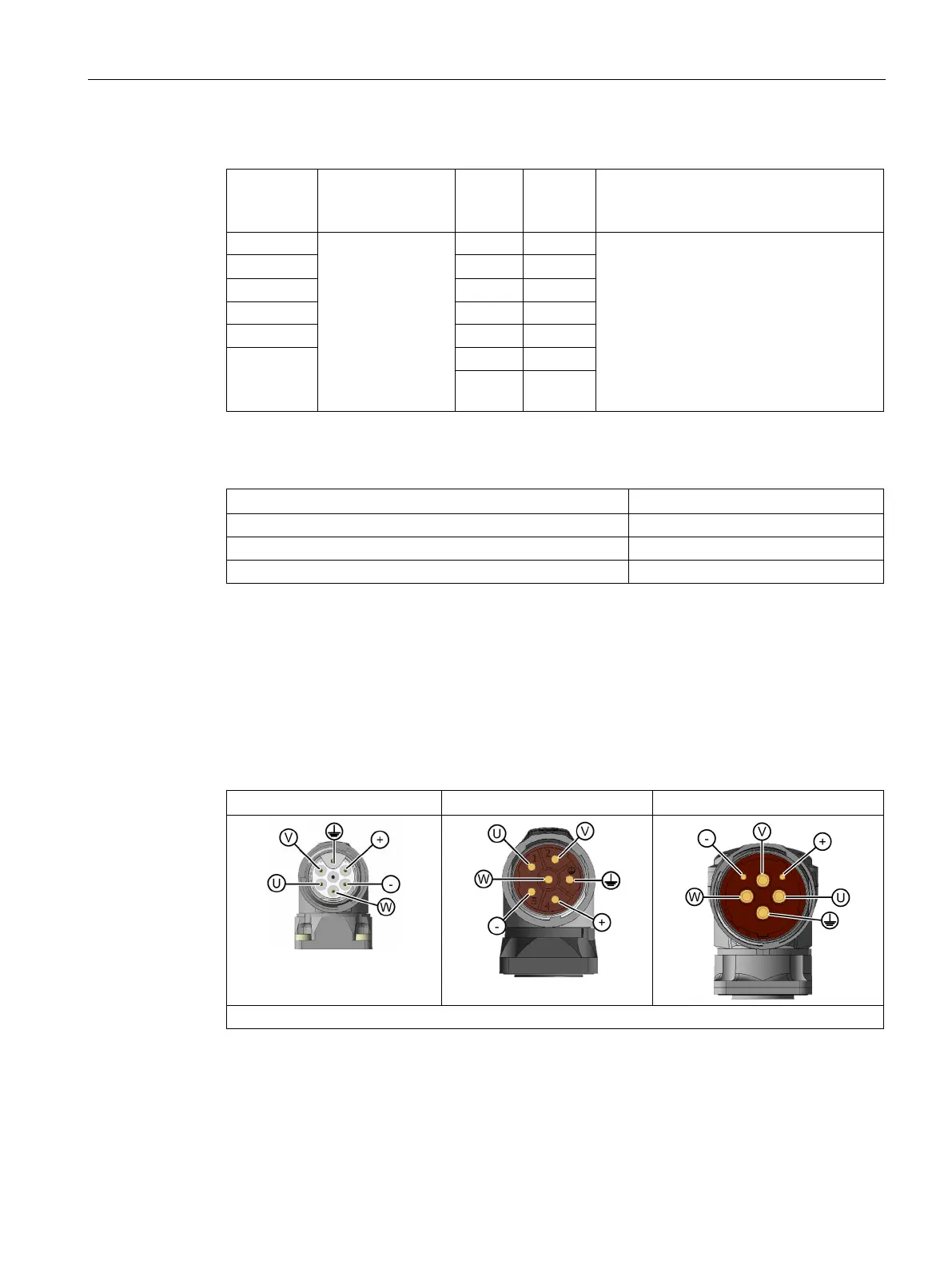

Designs of the power connectors
The 1FK2 is equipped with the following power connectors depending on the size and power
rating.
Round connector M17
Round connector M23
Round connector M40
Brake connection 24 V: "+" = BD1+; "-" = BD2-
The power connectors can be rotated within a certain range.
More precise information about the equipping of the motors and the angles of rotation is
provided in Chapter "Rotating the connector on the motor (Page 102)".
