workpiece reference edge (line through P1 and P2) and the reference axis in the working plane
(1st geometry axis of the working plane) and inner angle β of the corner.
Note
The coordinate system shown in the help displays is always in relation to the currently set
workpiece coordinate system.
Please be aware of this if you have swiveled or changed the WCS in any other form.
Precondition
You can insert any tool in the spindle for scratching when measuring the workpiece zero
manually.
- OR -
An electronic workpiece probe is inserted in the spindle and activated when measuring the
workpiece zero automatically.
Procedure

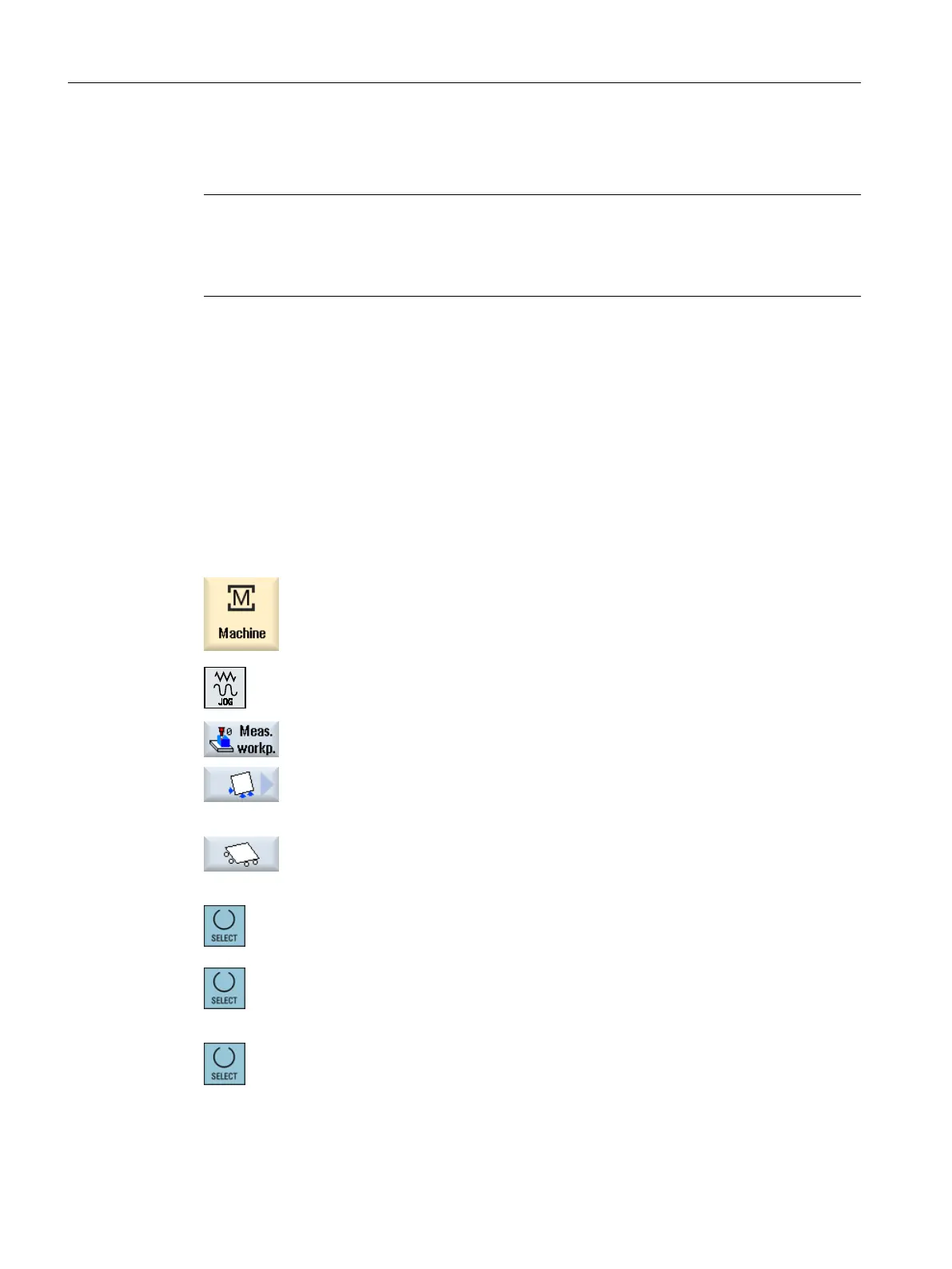

1. Select the "Machine" operating area and press the <JOG> key.
2. Press the "Workpiece zero" softkey.
3. Press the "Right-angled corner" softkey if the workpiece has a right-an‐
gled corner.
- OR -
Press the "Any corner" softkey, if you want to measure a corner not equal
to 90°.
- OR -
If these softkeys are not listed, press any vertical softkey (with the excep‐
tion of "Set edge") and in the drop-down list, select the desired measure‐
ment version.
4. Select "Measuring only" if you only want to display the measured values.
- OR -
5. In the selection box, select the desired work offset in which you want to
store the zero point.
- OR -
Setting up the machine
4.6 Measuring the workpiece zero
Milling
124 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
