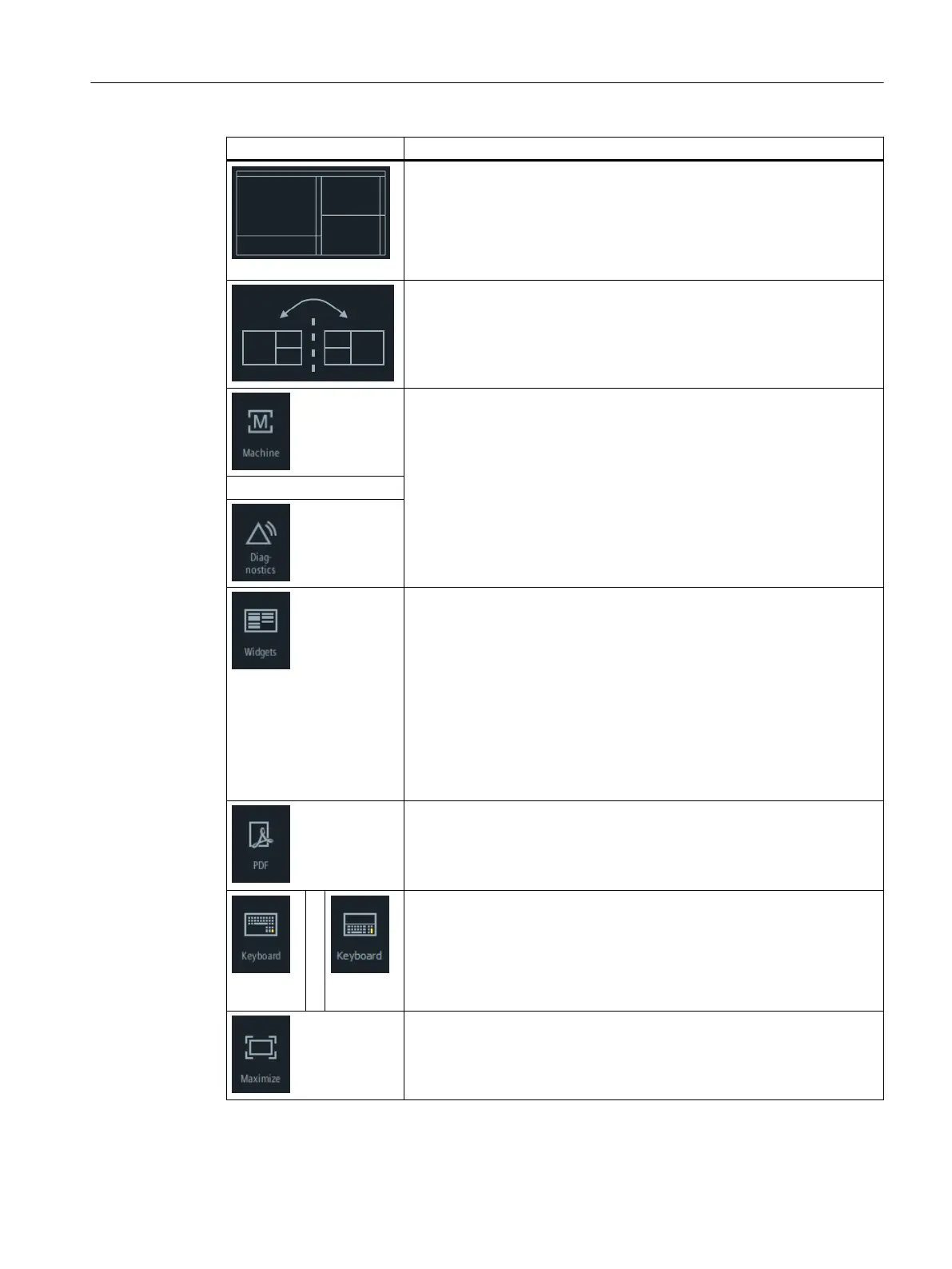

Operator control Function
4 display areas
● SINUMERIK Operate (with function block)
● Widget area
● Applications area (PDF, virtual keyboard)
● Area with virtual keyboard
Mirroring display areas
Mirrors the selected arrangement of the display areas.
Navigating in SINUMERIK Operate
Tap on the corresponding icon to directly open the desired operating area.
...
Widgets
The following widgets are available by default:
● Actual values (Page 79)
● Zero point (Page 80)
● Tool (Page 81)
● Axle load (Page 80)
● Alarms (Page 80)
● Program runtime (Page 82)
● Service life (Page 81)
PDF
Opens the PDF stored here.
Virtual keyboard
Displays a QWERTY keyboard in the display area for applications as well
as in the 4th display area below SINUMERIK Operate.
If the virtual keyboard is selected while the maximum representation of the
display area is active, the keyboard opens as a pop-up. The keyboard can
be moved as required on the display by means of touch operation.
Maximizing the display area
Enlarges the area with the SINUMERIK Operate and the area for the ap‐
plications to the full extent of the panel.
Multitouch operation with SINUMERIK Operate
3.6 SINUMERIK Operate Display Manager (840D sl only)
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 87
