4.2 Rear side
①Protective conductor connection
②Power supply interface X10
③Switch S2
④Ethernet interfaces X20 port 1/ port 2
⑤Handwheel connections X60/ X61
⑥Emergency stop
⑦4x mounting space for 22.5 mm elements
⑧Interface of the customer-specic inputs/outputs X516
⑨Interface of the customer-specic inputs/outputs X515

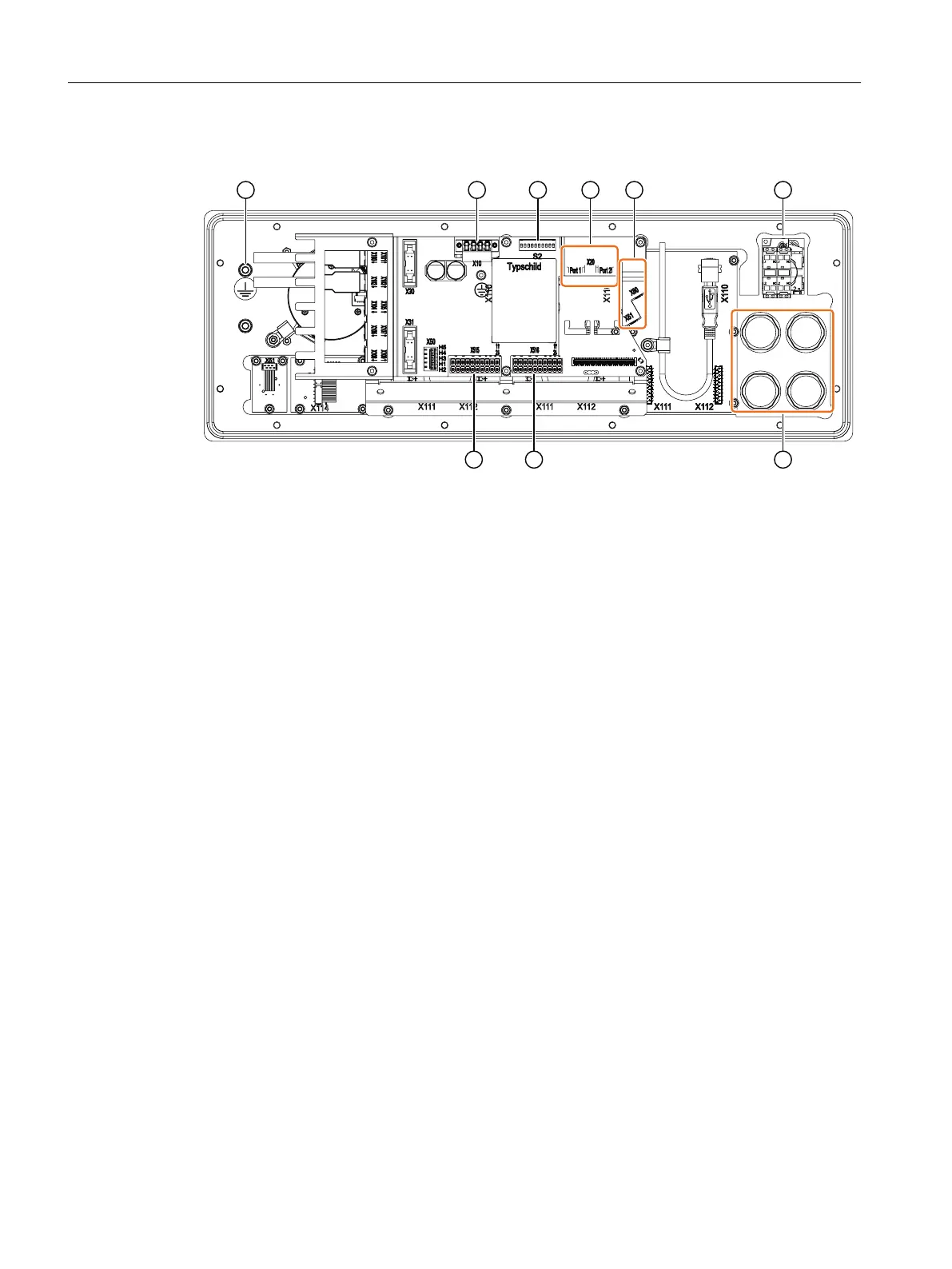

Figure 4-2 Rear view of the MCP 1900
Handwheel connecting cable
The handwheel connecting cable is not included in the scope of delivery. You will nd the article
numbers in Chapter "Spare parts/accessories".
Operator control and display elements
4.2 Rear side
ONE MCP Part 2: MCP 1900
18 Equipment Manual, 07/2020, A5E50324718B AA
