Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP modular 1ph/2ph
10 Manual, 04.2018, C98130-A7548-A1-4-7629
Connections and terminal designation
The line input terminals ① can be used to establish the connection to the supply voltage.
The output terminals
② are used to connect to the loads to be supplied (see also Section
Installation (Page 33)).

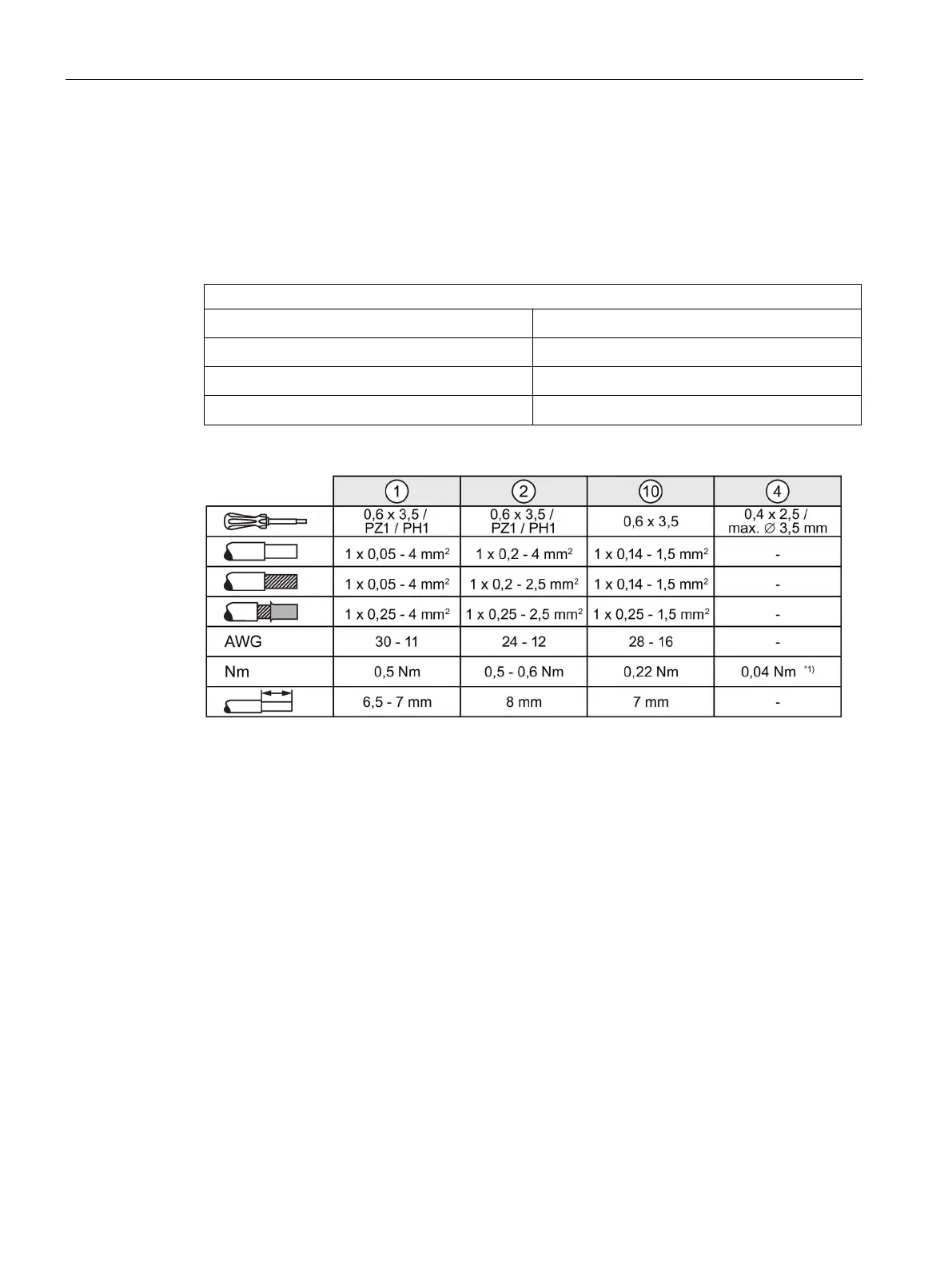

Connections and terminal designations for 6EP1333-3BA10 and 6EP1334-3BA10
Line input L1, N (L2), PE
One screw terminal each
Output +
2 screw terminals
Output –
2 screw terminals
Signaling contact 13, 14
One screw terminal each
*1)
Do not subject the end stop to higher loads
Figure 2-2 Terminal data for 6EP1333-3BA10 and 6EP1334-3BA10
