SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
3

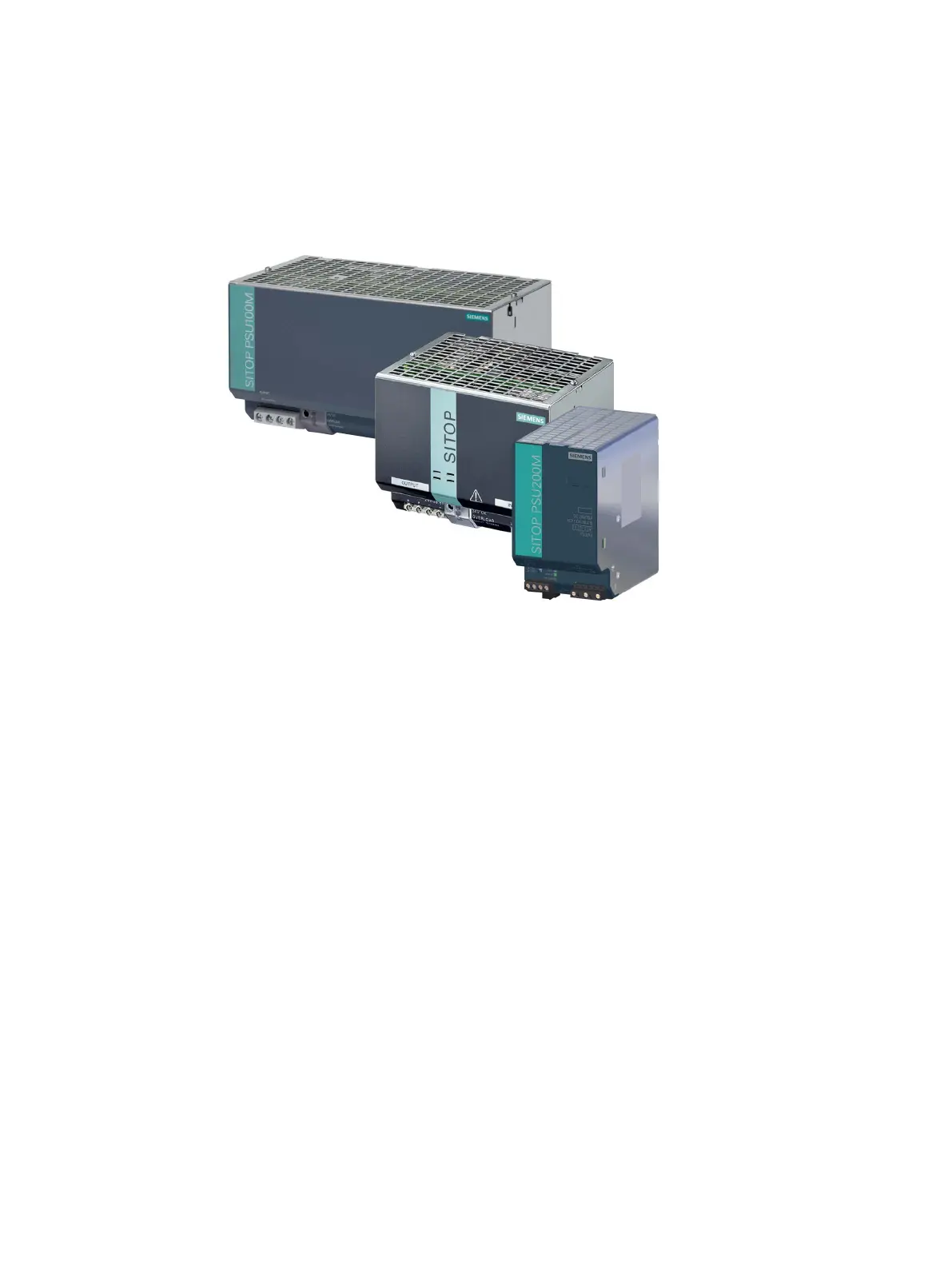

The 1-phase/2-phase power supply from the SITOP modular product line is a powerful,
stabilized technology power supply for automated machines and systems.
The key benefits of the product include:
● Wide-range input, which allows it to be connected to almost any 1-phase/2-phase line
supply around the world
● Output voltage can be adjusted in the range 24 - 28.8 V
● Power boost during operation with 300% rated current for 25 ms
● No lateral mounting clearances are required
● Ambient temperature -25 (0) … 70 °C
● Selectable short-circuit response (constant current or latching shutdown)
● A soft characteristic can be selected for a parallel connection (for uniform load distribution
of power supply units of the same type)
● Display of the operating state via 3 LEDs
● To increase the system availability, these reliable power supplies can be expanded using
SITOP supplementary modules (redundancy module, selectivity module, buffer module,
signaling module or signaling contact), as well as SITOP DC-UPS modules.
