Mounting position, mounting clearances
4.2 Other mounting positions
SITOP modular 1ph/2ph
Manual, 04.2018, C98130-A7548-A1-4-7629
29
4.2.3
6EP1336-3BA00

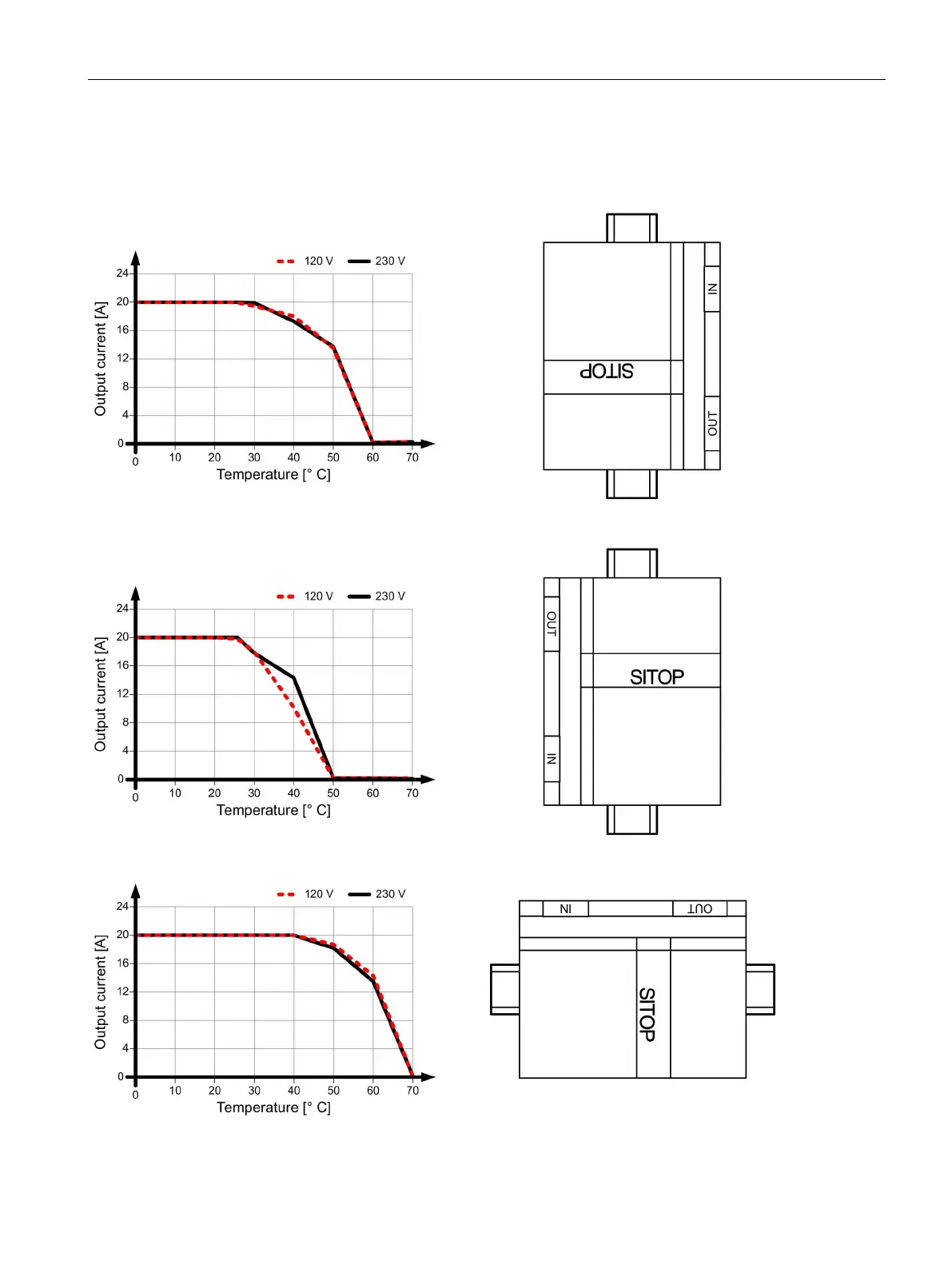

Figure 4-16 6EP1336-3BA00 mounting position (1)
Figure 4-17 6EP1336-3BA00 mounting position (2)
Figure 4-18 6EP1336-3BA00 mounting position (3)
