Description, device design, dimension drawing
2.3 Potentiometer
SITOP SEL1200-1400
12 Manual, 06.2019, A5E46496083-1-76
2.3 Potentiometer
The potentiometer ⑤ on the front of the device is used to set the response threshold of the
output current. When delivered, the maximum possible response threshold is set.

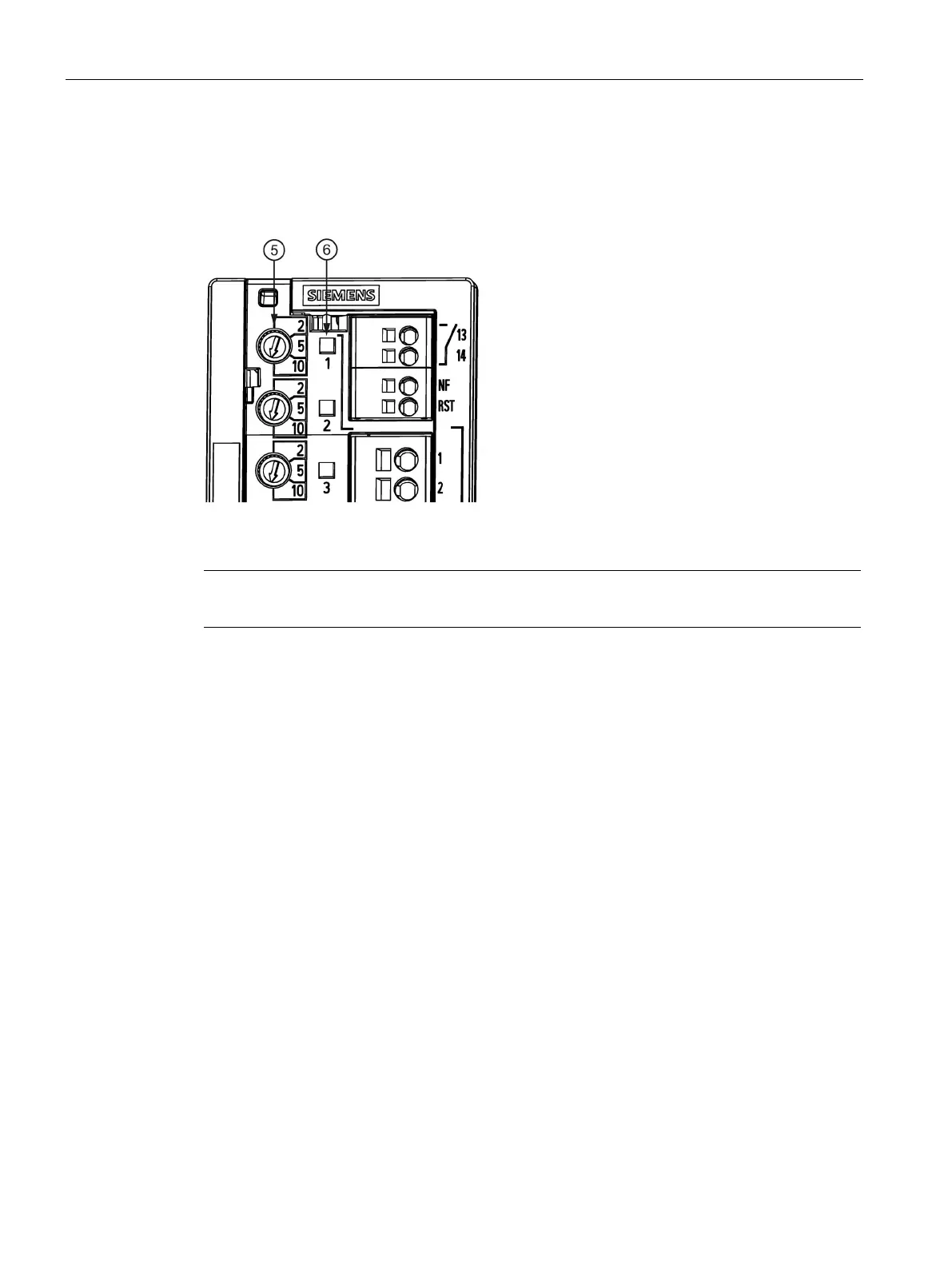

Figure 2-3 Potentiometer
Note
It is only permissible to use an insulated screwdriver when actuating the potentiometer.
For information on actuating the potentiometer (screwdriver, torque), see Figure 2-2
Terminal data (Page 11).
