Simplicity 1691996 User Manual

6 General Repair
6B Hand Controls Repair
6 -38
Parking Brake Knob Removal
1. The parking brake rod is threaded. Unscrew the
parking brake knob from the parking brake rod.
(Figure B–38)

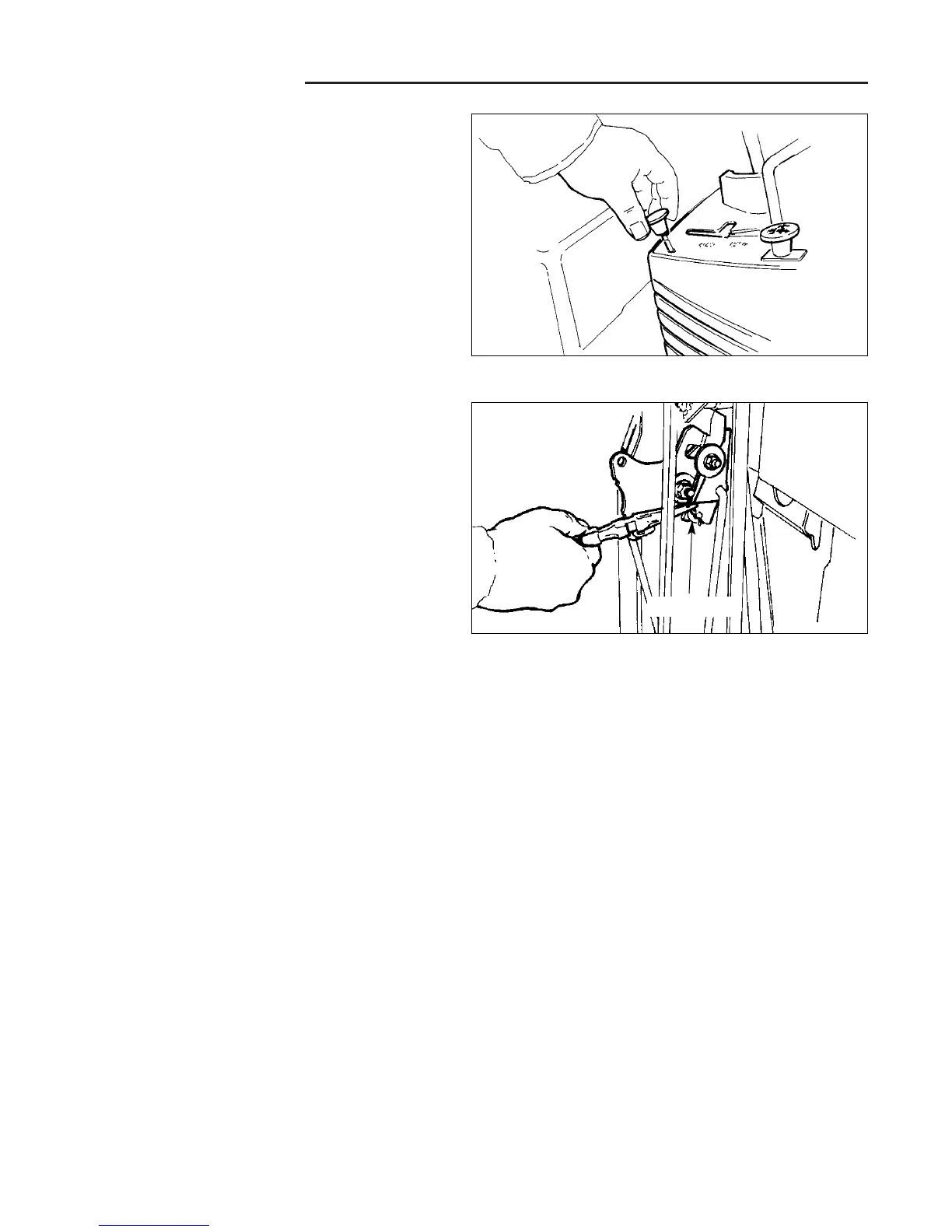

Figure B–38. Unscrew Parking Brake Knob
Figure B–39. Remove Cotter Pin From Parking
Brake Rod & Disengage From Brake
Cam
Parking Brake Rod Service
1. See Figure B–39. Remove the cotter pin from the
lower end of the parking brake rod, and after noting
the correct installation position of the rod, disengage
it from the parking brake cam. Lift the parking brake
rod up and out of the lower dash/frame area, and in-
spect for wear or damage. Replace as necessary.
Reassemble in reverse order of removal.
