6 - 49
6 General Repair
6C Foot Controls Repair
Clutch Rod Service -
Tuff Torq K215A Models
See Figure C–17 for specific assembly and part informa-
tion.
1. Using a needle-nose pliers, remove the cotter pin
from the clutch rod (see Figure C–18) Remove the
clutch rod from the return-to-neutral rod, foot pedal
arm, and parking brake cam.
Figure C–20. Check Clutch Rod
Straight
To Idler Arm
Assembly
To Foot
Pedal Arm

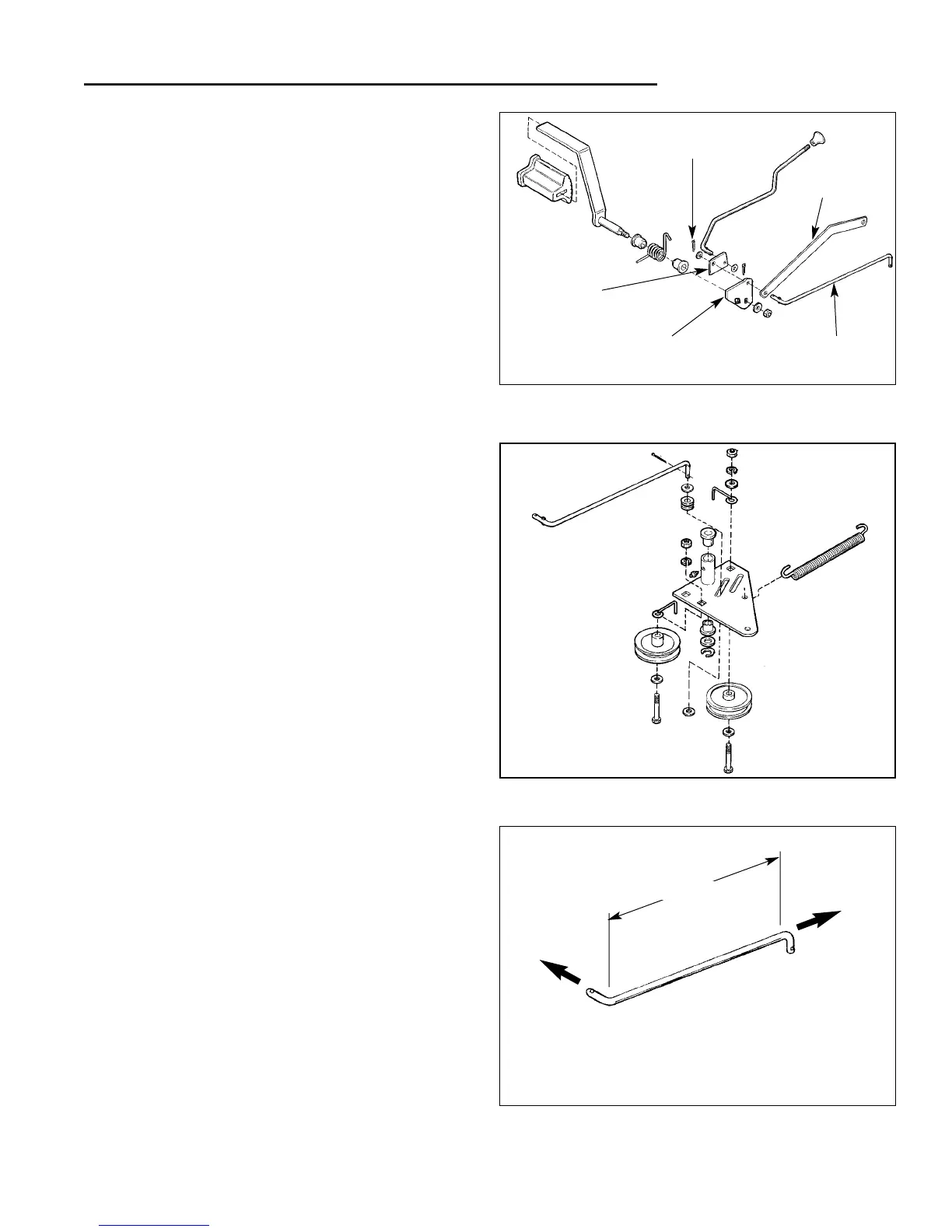

Figure C–19. Clutch Rod and Idler Arm assembly.
Figure C–18. Clutch/Brake Pedal Assembly Parts -
Typical
Foot Pedal
Arm
Parking
Brake Cam
Return-to-
Neutral Rod
Clutch Rod
2. Remove the cotter pin and washer that secure the
rear end of the clutch rod to the idler arm assembly
(see Figure C–19).
3. Remove the clutch rod inspect and replace as neces-
sary.
The clutch rod must be straight between the bends at
each end (Figure C–20).
Reassemble all parts in reverse order of disassem-
bly, and check for free movement before reinstalling
the clutch rod parts on the unit.
Cotter Pin
To Next Page
