6 - 46
6 General Repair
6C Foot Controls Repair

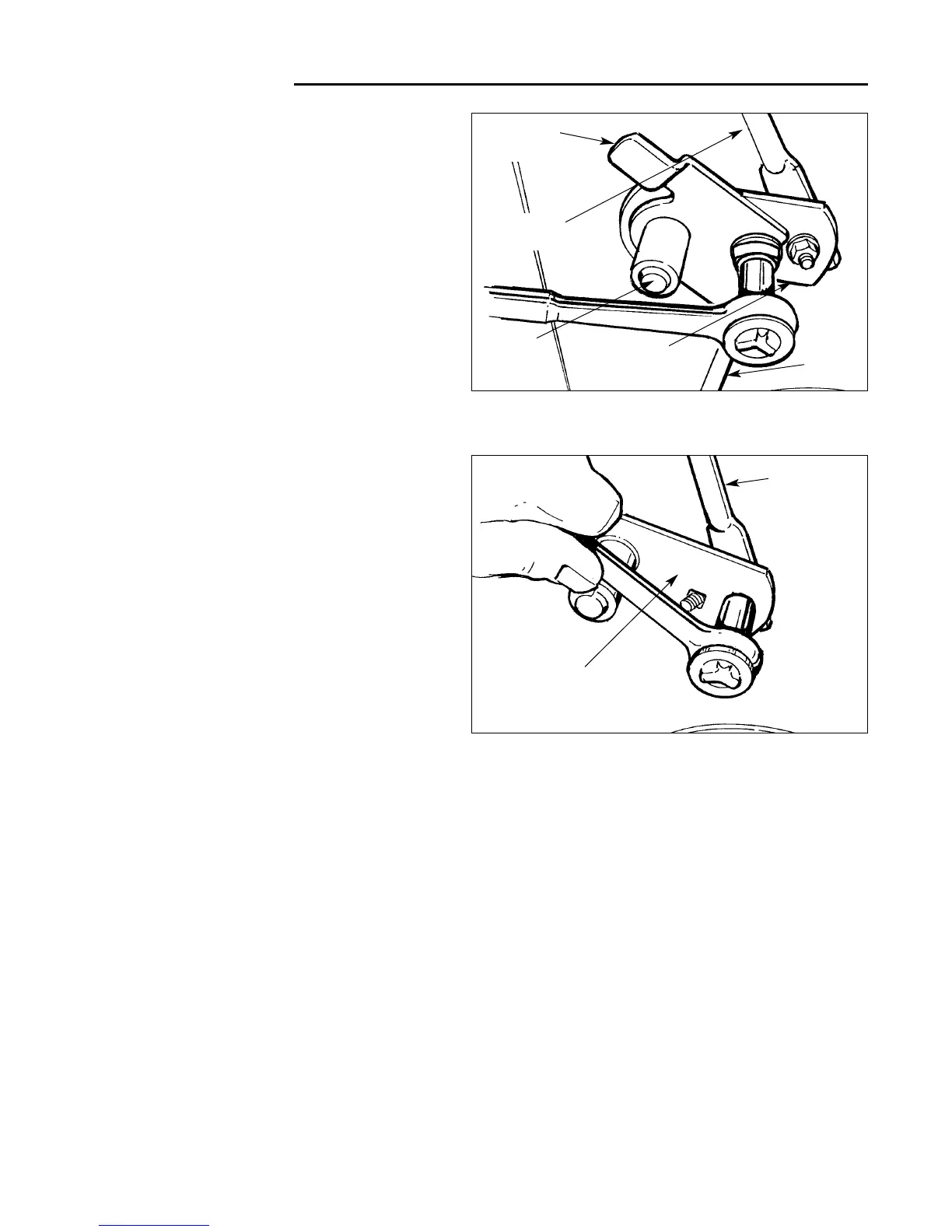

Figure C–15. Shift Pivot/Front Shift Rod Assembly
Front
Shift Rod
Shift Pivot
Assembly
Figure C–14. Lockout Lever/Shift Pivot Assembly
Lockout Lever / Shift Pivot Assembly
Service - Hydro-Gear 216-3010L Models
LOCKOUT LEVER SERVICE
The lockout lever is located directly under the idler arm
assembly and is mounted on the same pivot shaft. The
lockout lever, which is also referred to as a return-to-neu-
tral cam (See Adjustments section) connects the rear
shift rod, shift pivot assembly, and front shift rod.
When the brake pedal is fully depressed, the clutch rod
engages the arm on the lockout lever, causing the link-
age to pivot. This shifts the transmission into neutral, and
automatically repositions the shift lever into the neutral
gate. Visually inspect the lockout lever for wear, cracks,
corrosion, or other damage, and replace if necessary.
See Figure C–16 for assembly location information.
1. Remove the idler arm assembly (see Idler Arm
Assembly Service).
2. Detach the rear shift rod (see Figure C–14) from the
lockout lever and remove the lockout lever.
3. Detach the front shift rod from the shift pivot assem-
bly (see Figure C–15) and remove the shift pivot
assembly. Inspect for damage.
4. If no additional service in this area is required,
reassemble parts in reverse order of disassembly,
and make any necessary adjustments for proper neu-
tral and return-to-neutral operation, as shown in the
Adjustments section of this manual.
Lockout
Lever
Pivot
Shaft
Shift Pivot
Assembly
Front
Shift Rod
Rear
Shift
Rod
