Simplicity 1692380 Service & Repair Manual

6 - 3
6 Wheel Repair
Rear Wheel Removal
1 1 Key
2 1 Tire
3 4 Washer
4 1 Spacer
5 1 Rim
6 1 Valve
7 1 E-Ring
8 1 Hub Cap (Simplicity Models)
9 1 Hub Cap Retainer
(AGCO-Allis & Massey Ferguson Models)
10 1 Hub Cap
(AGCO-Allis & Massey Ferguson Models)
Ref. Qty. Description Ref. Qty. Description

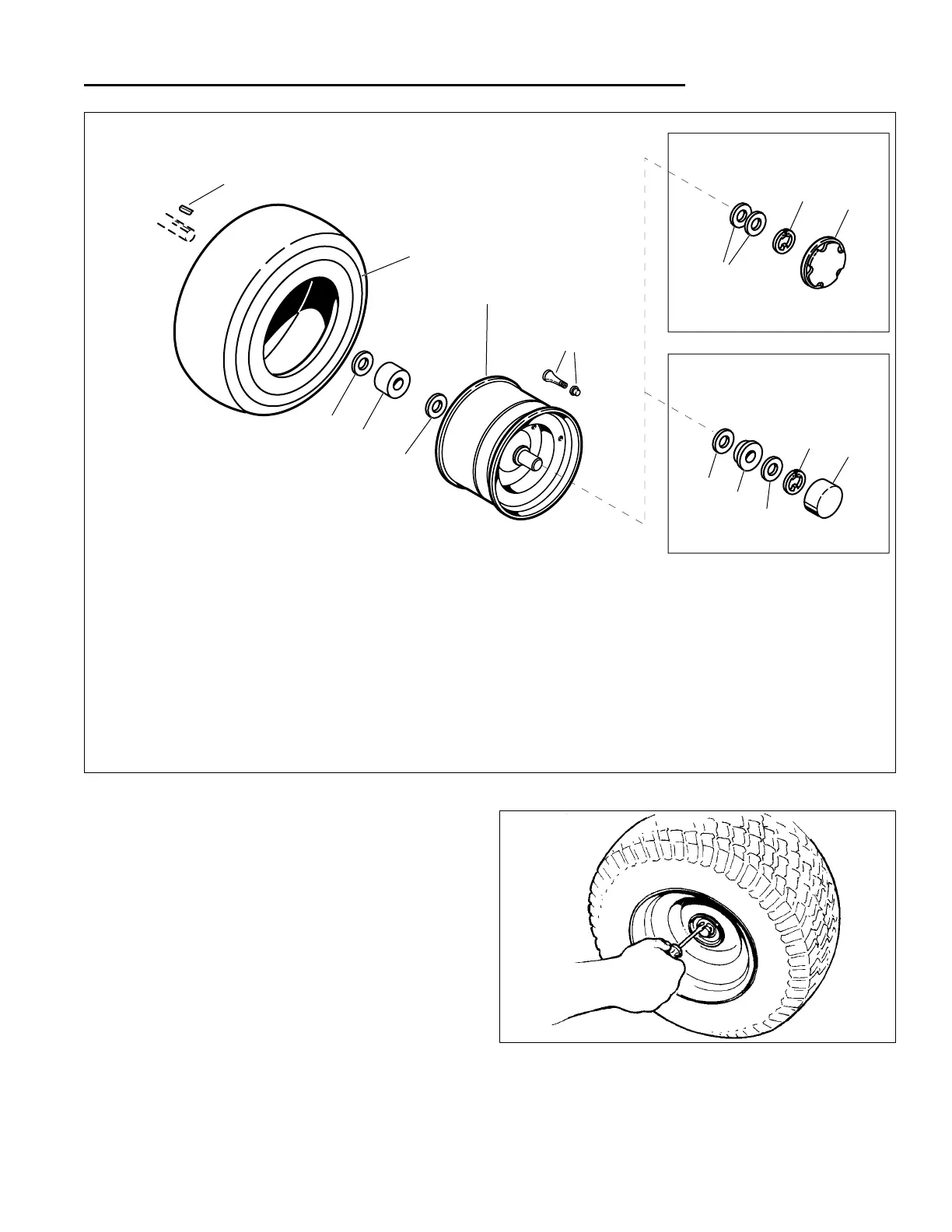

Figure 3. Rear Wheel Assembly
Figure 4. Rear Wheel Removal
REAR WHEEL REMOVAL
NOTE: The assembly shown in Figure 3 may differ
slightly from the assembly on your particular rider–specif-
ically the number of washers used. Each rider is individ-
ually checked and the necessary number of washers is
used. The wheel should be free to slide back and forth
slightly
Refer to Figure 3.
1. Elevate the rear end. (See Elevating Rear End for
Safe Service)
2. Remove the plastic hub cap (Ref. 8, 10). Remove
the e-ring using a screwdriver (see Figure 4).
3. Remove the washers (Ref. 3) and hub cap retainer
(Ref. 9) where applicable.
4. Remove the wheel assembly (Ref. 2 & 5), key
(Ref. 1), spacer (Ref. 4), and washers (Ref. 3).
5. Grease the axle shaft and reinstall in reverse order of
disassembly.
REAR WHEELS & TIRES
Simplicity Models
AGCO-Allis &
Massey Ferguson Models
1
2
5
5
3
4
63
6
8
3
9
10
7
3
7
63
