Simplicity 1692380 Service & Repair Manual

6 Wheel Repair
Front Wheel Removal / Bearing Replacement
FRONT WHEELS & TIRES
Simplicity Models
AGCO-Allis &
Massey Ferguson Models
6
2
1
1
3
174
5
7
8
9
7
6 - 4
1 2 Bearing
2 1 Rim
3 1 Grease Zerk
4 1 Valve
5 1 Tire
6 1 Washer
7 1 E-Ring
8 1 Hub Cap (Simplicity Models)
9 1 Hub Cap
(AGCO-Allis & Massey Ferguson Models)
Ref. Qty. Description Ref. Qty. Description

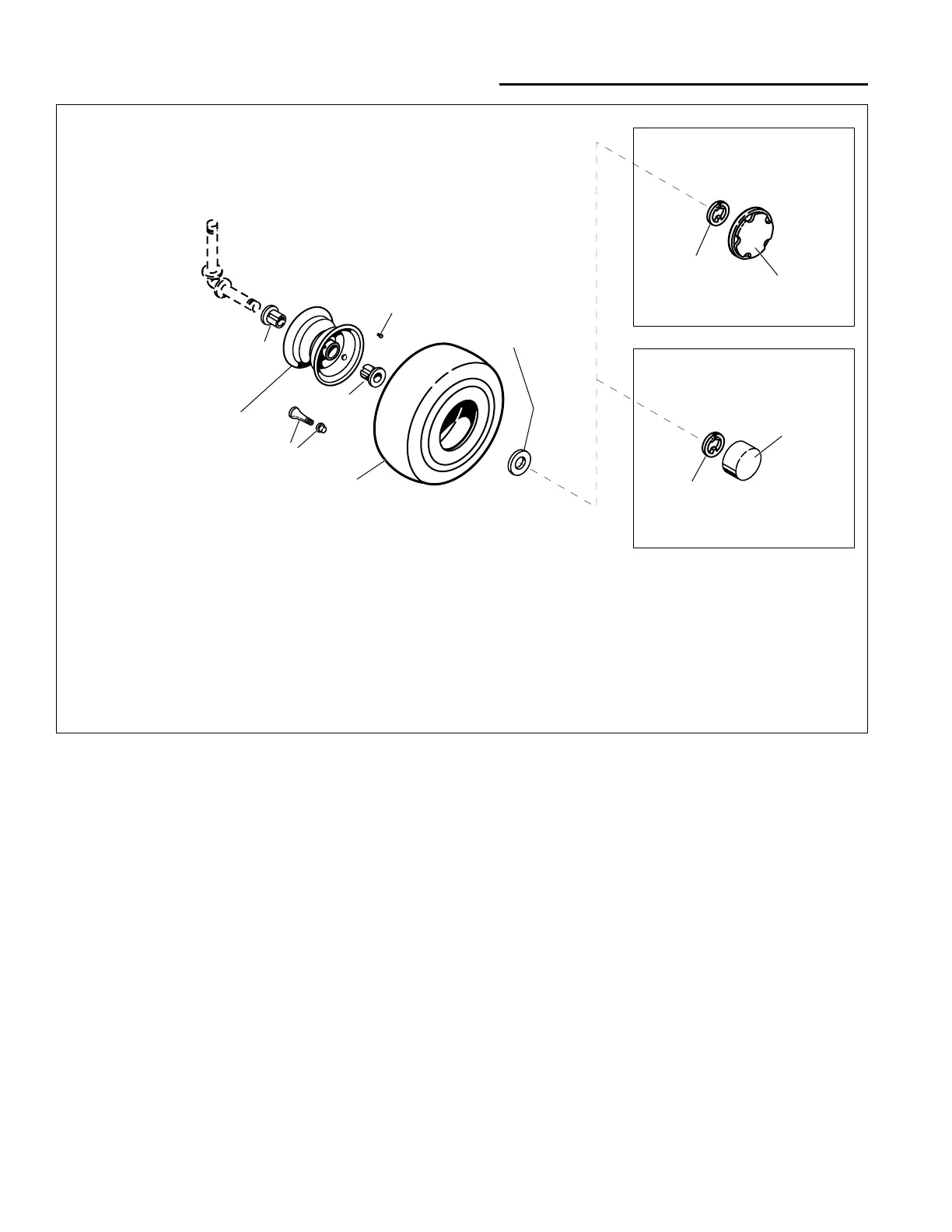

Figure 5. Front Wheel Assembly
FRONT WHEEL REMOVAL
Refer to Figure 5.
1. Elevate the front of the rider (see Elevating Front End
for Safe Service)
2. Remove the plastic hub cap (Ref. 8, 9). Remove the
e-ring using a screwdriver (see Figure 4).
3. Remove the washer (Ref. 6).
4. Remove the wheel assembly (Ref. 2 & 5).
5. Install in reverse order of removal.
WHEEL BEARING REPLACEMENT
Refer to Figure 5 for assembly.
1. Elevate the front of the rider (see Elevating Front End
for Safe Service)
2. Remove the front wheel (see Front Wheel Removal).
3. Using a drift and hammer, tap the old bearings
(Ref. 1) out of the rim (Ref. 2).
4. Press the new bearing (Ref. 1) into the rim (Ref. 2)
using an arbor press.

Simplicity 1692380 Specifications

General

Brand	Simplicity
Model	1692380
Category	Lawn Mower
Language	English
