Simplicity 6 User Manual

15

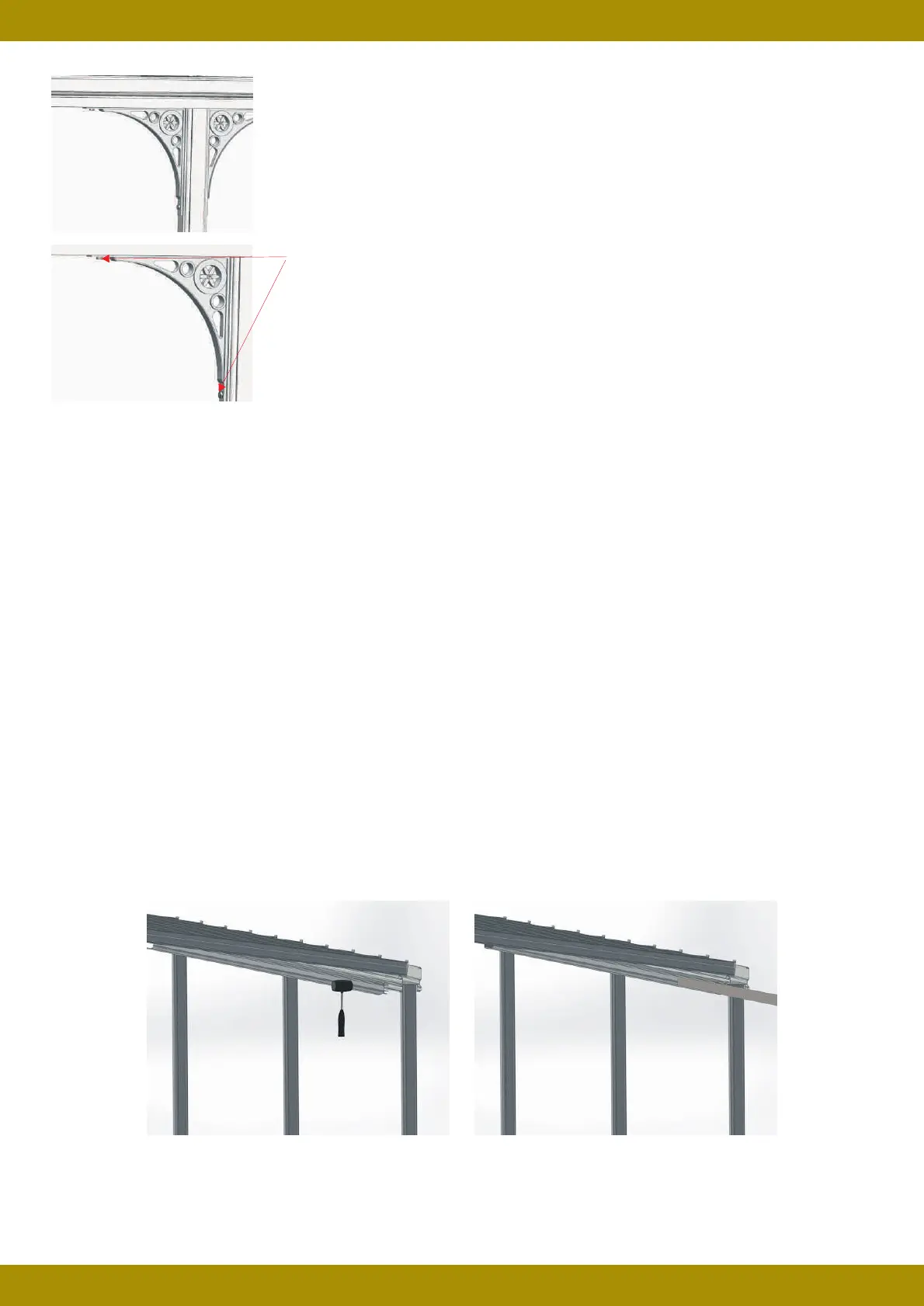

Image shows gallows brackets fitted to gutter channel and
post.
Please see the position of the fixings.
STEP 22
Lighting installation (if required)
Attaching the light channel to the Simplicity 6 gutter beam:
Inside of the light channel you will find a 12 Volt LED self-adhesive strip light, to access this just
unscrew the aluminium end cap and slide out the polycarbonate lenses. You will need to connect
the black and red cables to some compatible flex cable that is small enough to run through the
trims on the alfresco, or through the wall plate and the main bars.
Before you attached the light channel please consider the cable route and ensure you have
enough cable to run it through the main bar and out of the wall plate to the capacitor. Then you
need to drill up through the trim channel above the light channel into the main bar next to the main
bar fixing bolt, then crimp the cables that exit the light channel with the additional cable required for
the run, if the hole in the light channel is not already drilled, slide the lens out of the light channel
by unscrewing the aluminium end cap and drill the hole using a 6mm drill bit ensuring it is aligned
to the main bar hole you have just drilled. Once you have passed the cables through the hole
simply snap the light into place or using a rubber mallet tap it into the light channel as below
image. Then run the cables up the main bar and out of the wall plate at the desired location.
