Regular Maintenance
LUBRICATION
Lubricate the unit at the locations shown in Figures 12
through 15 as well as the following lubrication points.
Grease:
• front caster wheel axles & yokes
• deck lift pivot blocks
• mower deck spindles
• mower deck idler arm
Use grease fittings when present. Disassemble parts to
apply grease to moving parts when grease fittings are
not installed.
Not all greases are compatible. Use Dealer Line Grease
or automotive lithium equivalent.
Oil:
• control handle pivots
• seat plate pivots
• deck lift pivots
• discharge chute hinge
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease
off belts and pulleys. Remember to wipe fittings and
surfaces clean both before and after lubrication.

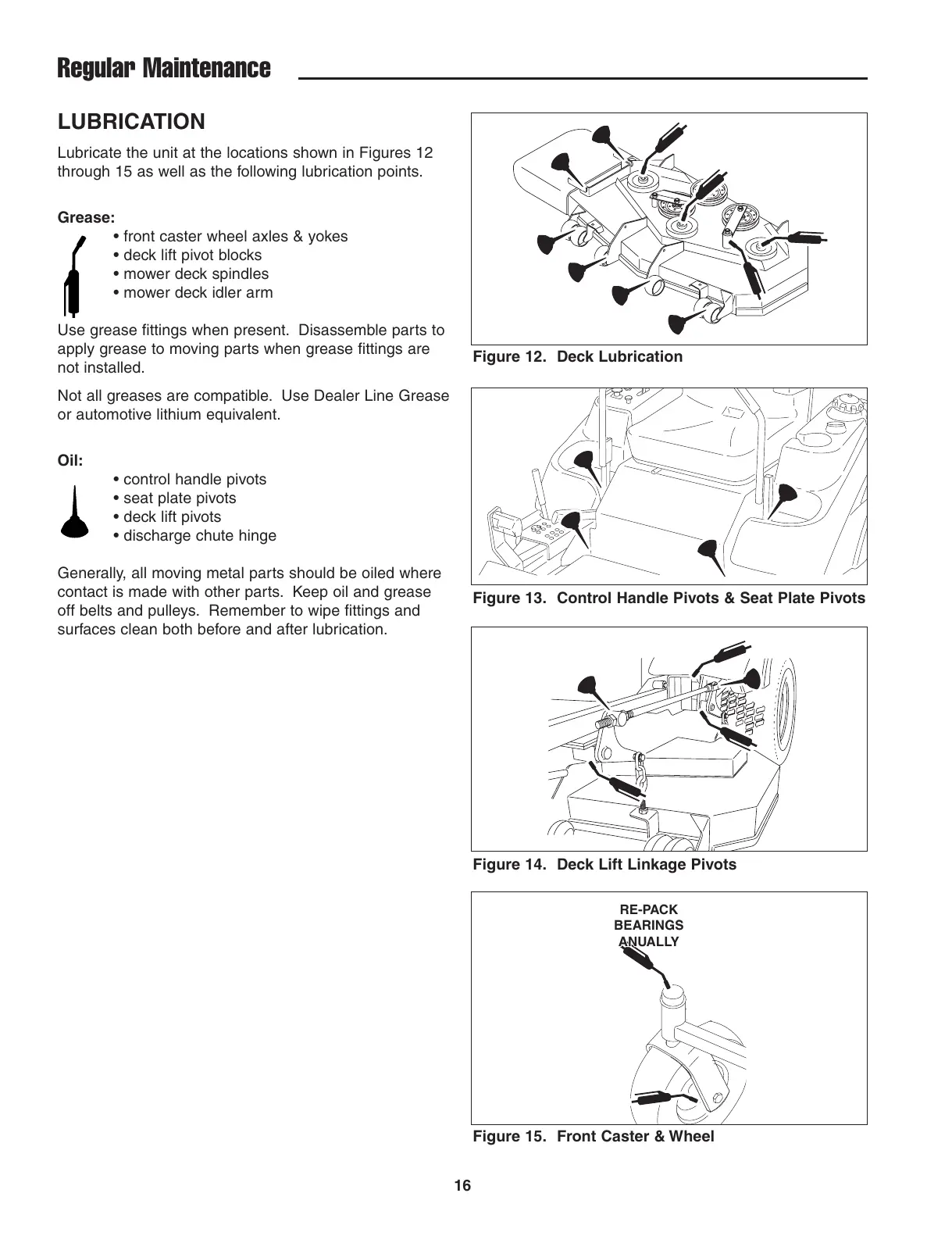

Figure 12. Deck Lubrication
Figure 14. Deck Lift Linkage Pivots
Figure 15. Front Caster & Wheel
Figure 13. Control Handle Pivots & Seat Plate Pivots
