31

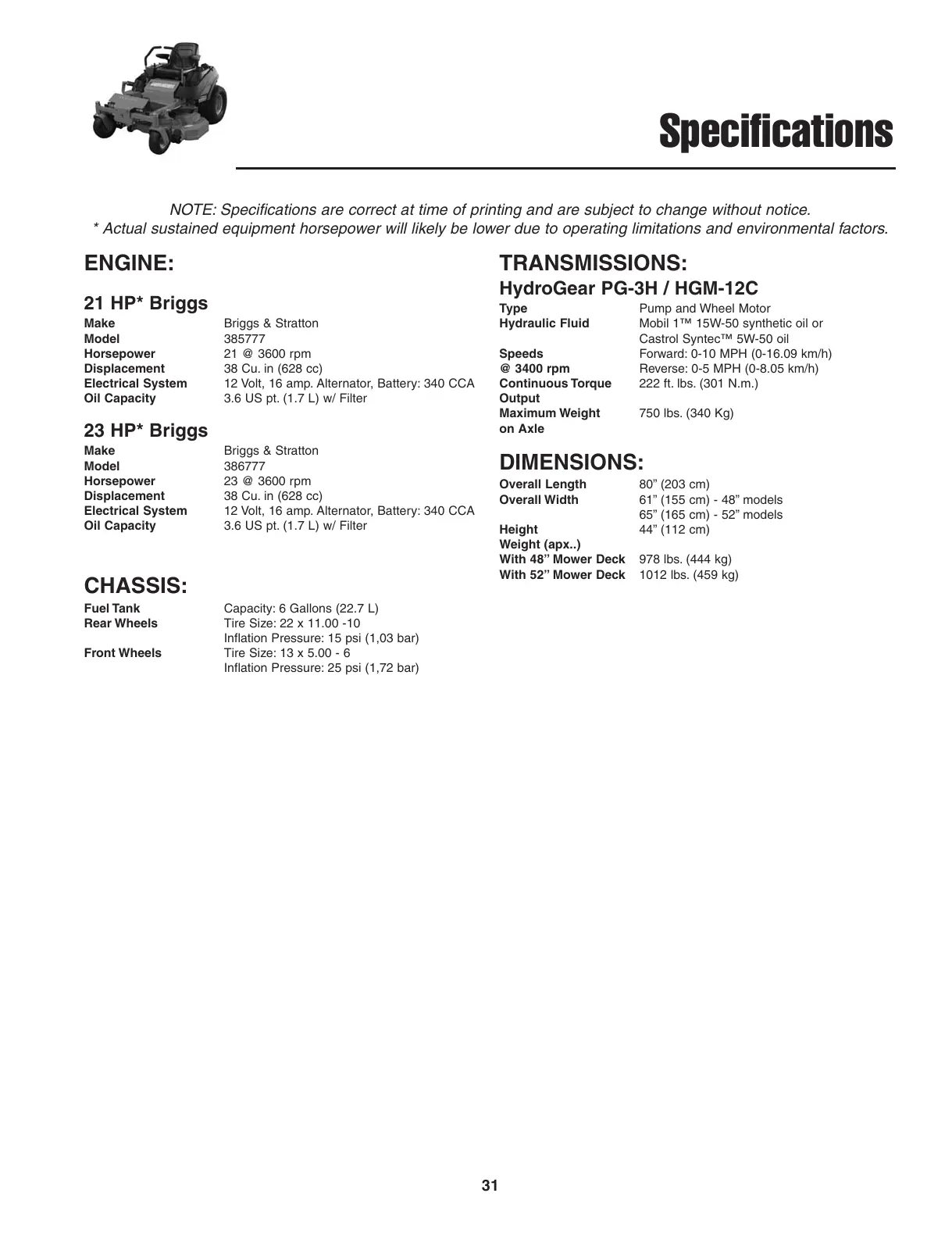

Specifications
ENGINE:
21 HP* Briggs
Make Briggs & Stratton
Model 385777
Horsepower 21 @ 3600 rpm
Displacement 38 Cu. in (628 cc)
Electrical System 12 Volt, 16 amp. Alternator, Battery: 340 CCA
Oil Capacity 3.6 US pt. (1.7 L) w/ Filter
23 HP* Briggs
Make Briggs & Stratton
Model 386777
Horsepower 23 @ 3600 rpm
Displacement 38 Cu. in (628 cc)
Electrical System 12 Volt, 16 amp. Alternator, Battery: 340 CCA
Oil Capacity 3.6 US pt. (1.7 L) w/ Filter
CHASSIS:
Fuel Tank Capacity: 6 Gallons (22.7 L)
Rear Wheels Tire Size: 22 x 11.00 -10
Inflation Pressure: 15 psi (1,03 bar)
Front Wheels Tire Size: 13 x 5.00 - 6
Inflation Pressure: 25 psi (1,72 bar)
TRANSMISSIONS:
HydroGear PG-3H / HGM-12C
Type Pump and Wheel Motor
Hydraulic Fluid Mobil 1™ 15W-50 synthetic oil or
Castrol Syntec™ 5W-50 oil
Speeds Forward: 0-10 MPH (0-16.09 km/h)
@ 3400 rpm Reverse: 0-5 MPH (0-8.05 km/h)
Continuous Torque 222 ft. lbs. (301 N.m.)
Output
Maximum Weight 750 lbs. (340 Kg)
on Axle
DIMENSIONS:
Overall Length 80” (203 cm)
Overall Width 61” (155 cm) - 48” models
65” (165 cm) - 52” models
Height 44” (112 cm)
Weight (apx..)
With 48” Mower Deck 978 lbs. (444 kg)
With 52” Mower Deck 1012 lbs. (459 kg)
NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
