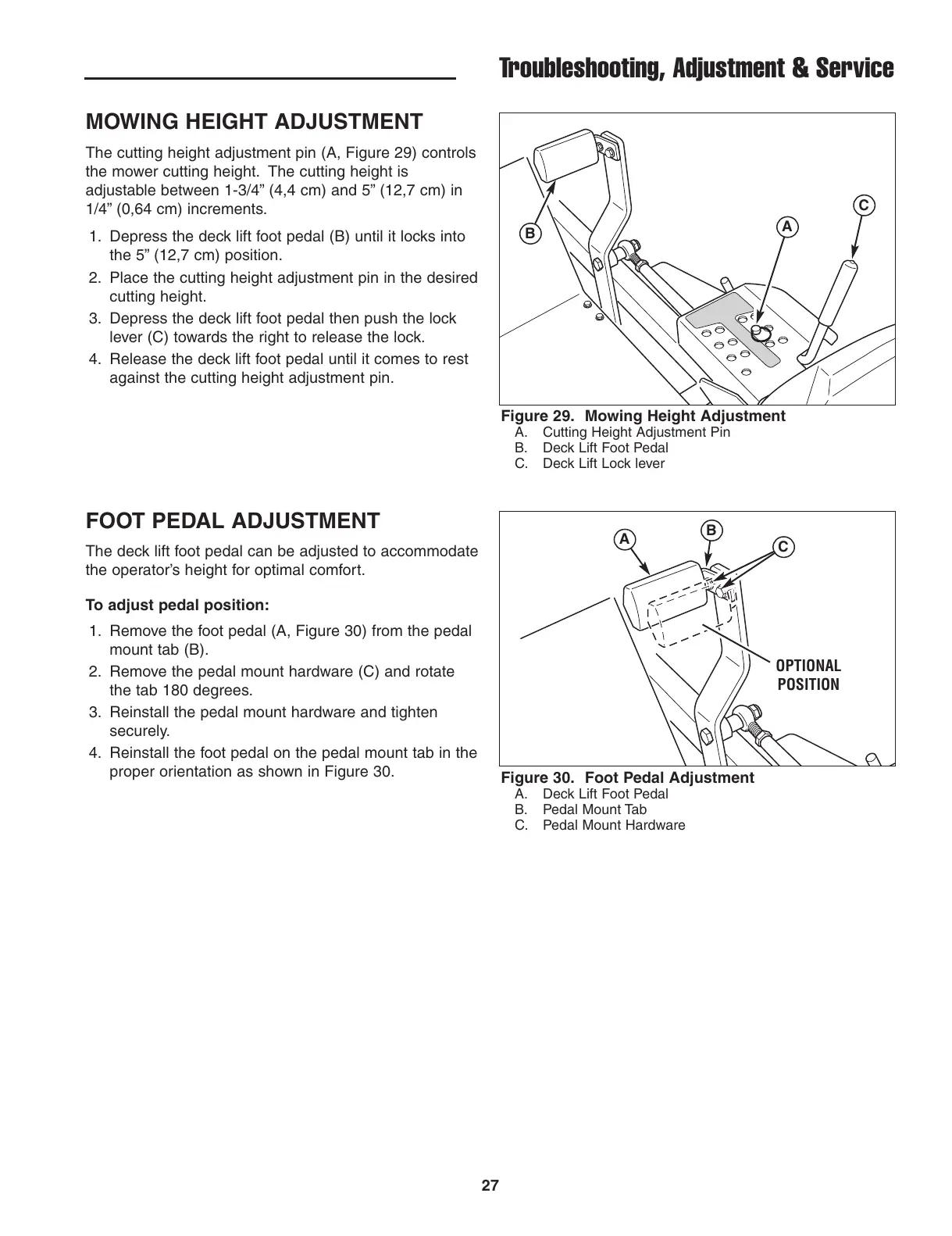

Troubleshooting, Adjustment & Service
27
MOWING HEIGHT ADJUSTMENT
The cutting height adjustment pin (A, Figure 29) controls
the mower cutting height. The cutting height is
adjustable between 1-3/4” (4,4 cm) and 5” (12,7 cm) in
1/4” (0,64 cm) increments.
1. Depress the deck lift foot pedal (B) until it locks into
the 5” (12,7 cm) position.
2. Place the cutting height adjustment pin in the desired
cutting height.
3. Depress the deck lift foot pedal then push the lock
lever (C) towards the right to release the lock.
4. Release the deck lift foot pedal until it comes to rest
against the cutting height adjustment pin.
C
FOOT PEDAL ADJUSTMENT
The deck lift foot pedal can be adjusted to accommodate
the operator’s height for optimal comfort.
To adjust pedal position:
1. Remove the foot pedal (A, Figure 30) from the pedal
mount tab (B).
2. Remove the pedal mount hardware (C) and rotate
the tab 180 degrees.
3. Reinstall the pedal mount hardware and tighten
securely.
4. Reinstall the foot pedal on the pedal mount tab in the
proper orientation as shown in Figure 30.
Figure 29. Mowing Height Adjustment
A. Cutting Height Adjustment Pin
B. Deck Lift Foot Pedal
C. Deck Lift Lock lever
B
A
