THREADING
• Raise take-up lever to its highest position by
turning hand wheel toward you. Raise
presser foot to release the tension discs.

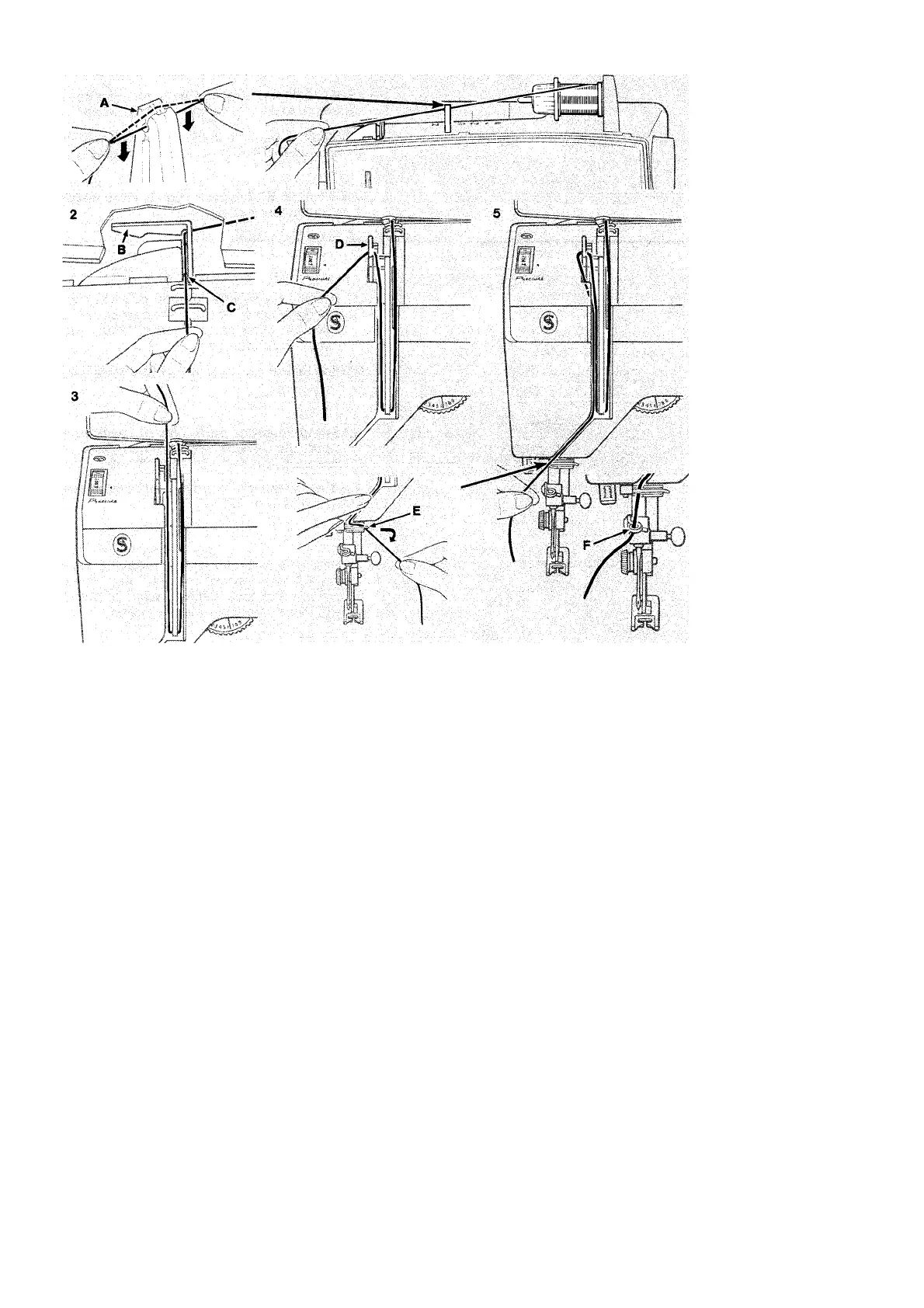

1. Lead thread from spool holder and snap it
down into thread guidepost A.
2. Raise console cover and thread the rear thread
guide by holding thread in left hand and guiding
it over wing B and into channel C.
3. Draw thread firmiy between tension discs,
down right-hand channel, and up left-hand
channel.
4. Thread take-up lever D by guiding thread
down over top of lever and then up Into
eyelet.
5. Lead thread from take-up lever down into
ieft channel and then Into lower thread
guides E and F.
• Thread the needie using the needle
threader. Refer to page 10 for instruc
tions on using the needle threader.
