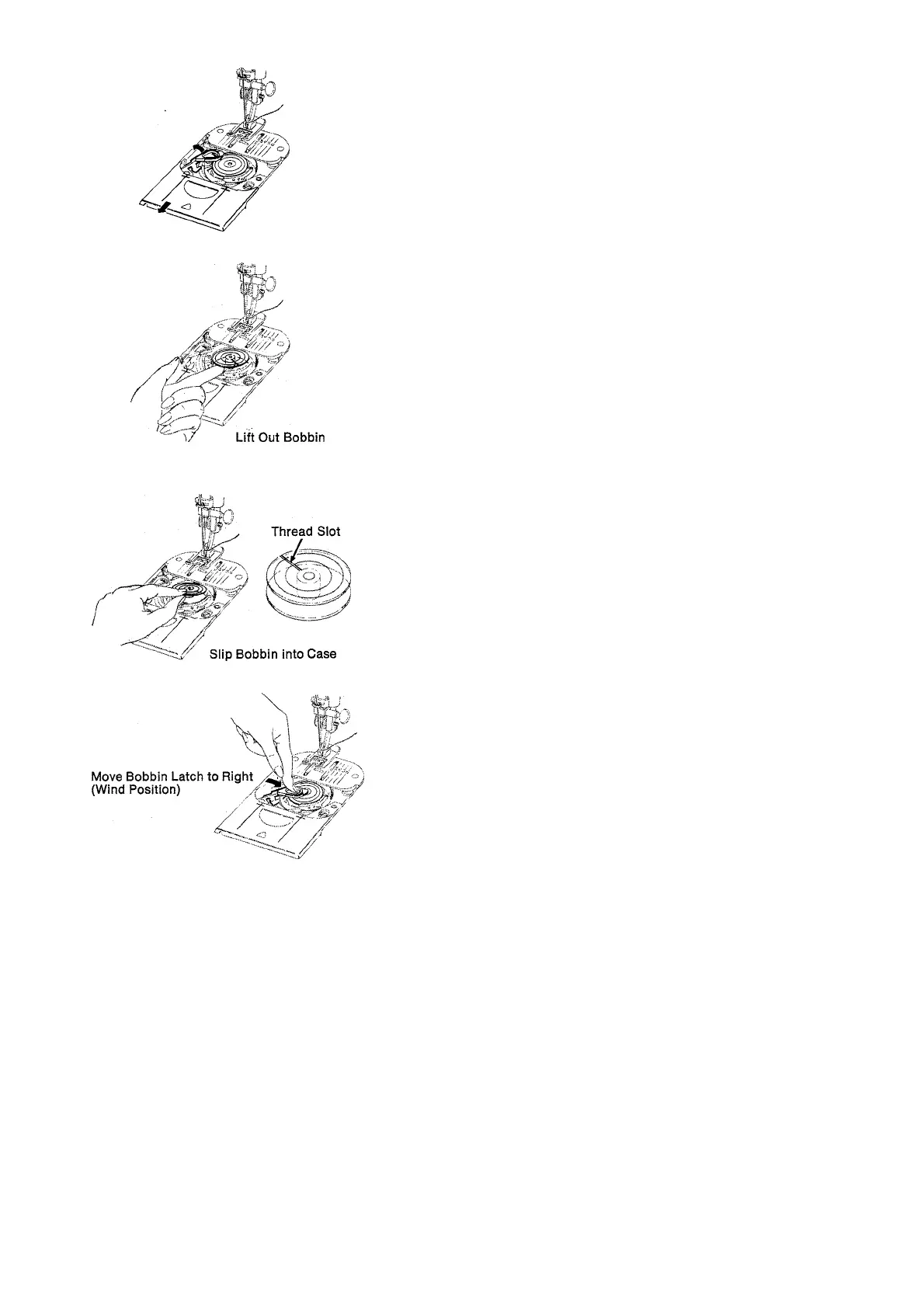

Removing Bobbin
Open Slide Plate and Move Bobbin Latch to Left
$ #'#' )))#
REMOVING THE BOBBIN
Raise take-up lever to its highest position.
1. Open slide plate; move bobbin latch to left.
2. Remove bobbin by inserting fingernail un
der rim of bobbin.
Replacing Empty Bobbin
REPLACING AN EMPTY BOBBIN
1. Slip bobbin (slot on top) into bobbin case.
2. Move bobbin latch to right (wind position).
3. Leave slide plate open until you have fin
ished winding the bobbin.
REMOVING THREAD FROM BOBBIN
You can leave the bobbin in place while re
moving thread. With slide plate closed, pull
thread end through the plate with a steady
motion. Do not pull the thread across the feed
as this may damage it.
12
