Straight and
Zigzag Stitch
Fitting
Figure 2
6
Figure 28
Figure 2
7

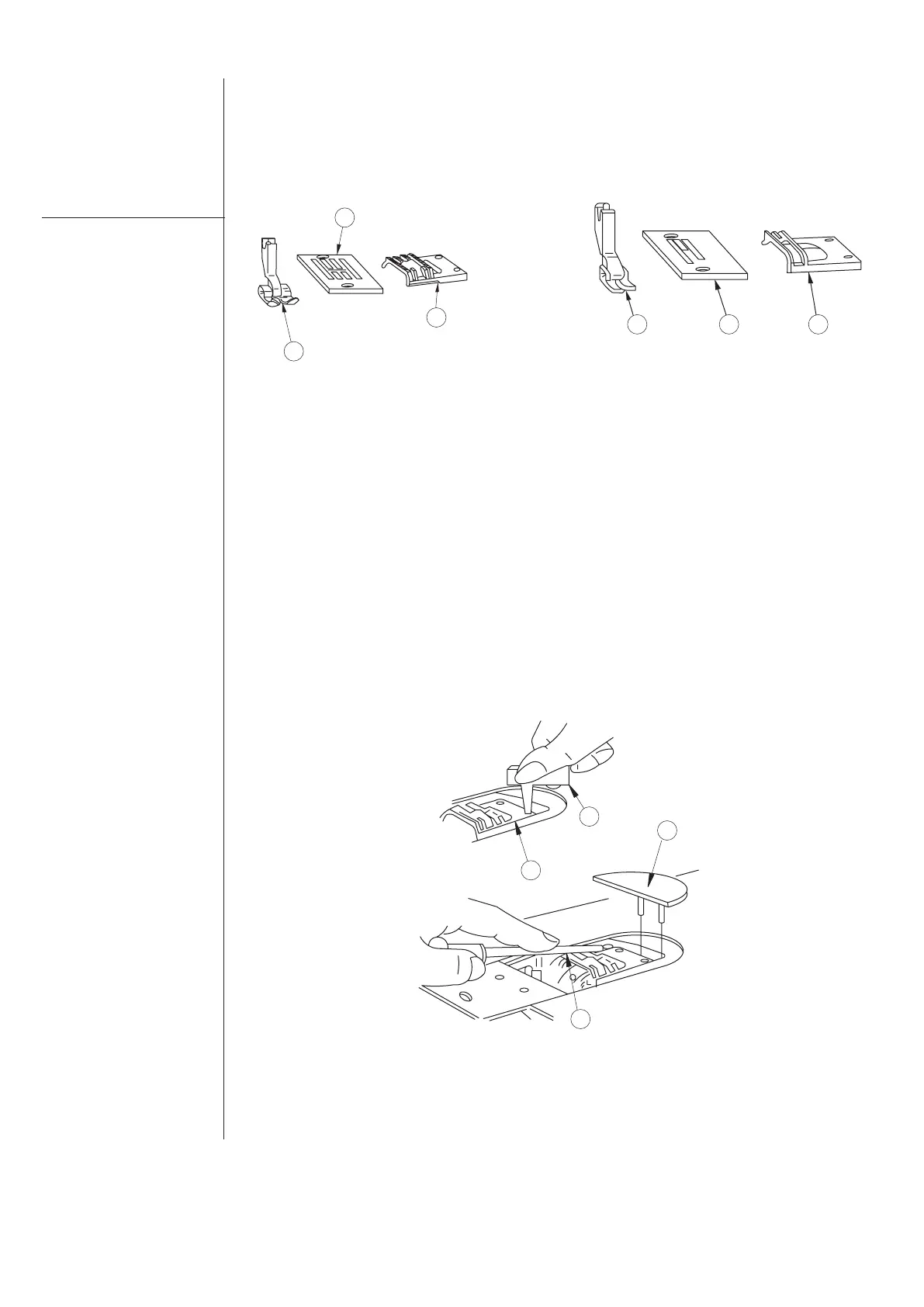

Zigzag stitch Presser Foot ‘1’,
Needle Plate ‘2’ and Feed Dog ‘3’
are used for straight and zigzag
stitching. (Figure 27)
Straight Stitch Presser Foot ‘1’,
Needle Plate ‘2’ and Feed Dog ‘3’
are used for straight stitching only.
(Figure 28)
Changing the needle plate and feed
dog (Figure 29)
Open bed slide, then remove
needle plate, (Use screwdriver ‘3’
furnished with machine for removal
and replacement of needle plate
and feed dog.)
Using a screwdriver ‘2’ remove bed
plate ‘1’ and remove feed dog ‘4’.
To replace general purpose or
straight stitch feed dog, fasten feed
dog to machine temporarily and
replace general purpose or straight
stitch needle plate. Set feed dog
correctly in position so that it will
not hit the edges of feed dog slots
in the needle plate.
Replace bed plate and press it
firmly in place.
Caution
Switch off the
machine.
606650(20U-105/105C)
606651(20U-125/125C)
606588(20U-105/105C)
606502(20U-125/125C)
606693 606695 606697
605652(20U-105/105C)
606402(20U-125/125C)
1
1
2
2
3
3
1
2
3
4
Zigzag
Sewing Machine
|
Instruction Manual and Parts List
