39
SECTION 6
CARING FOR YOUR MACHINE

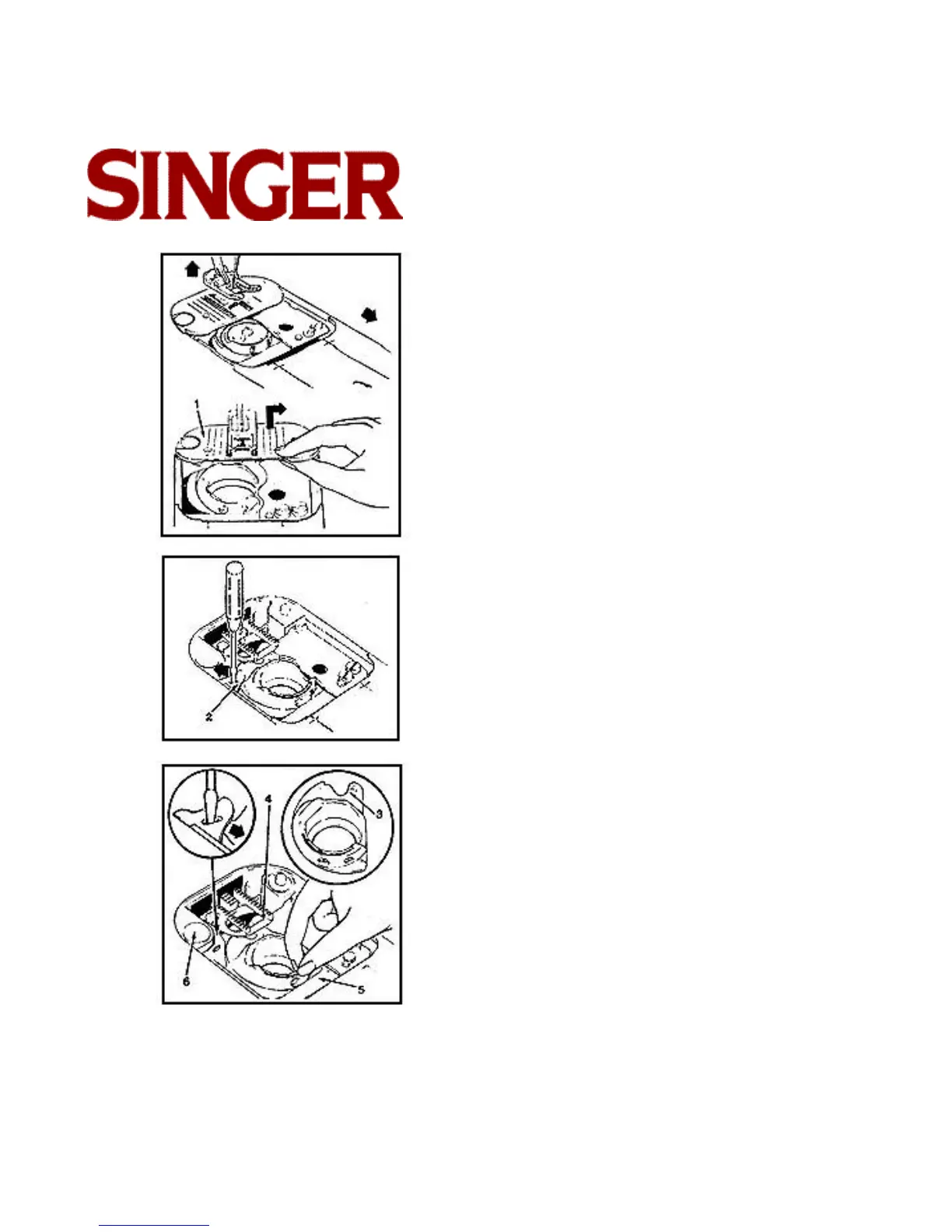

REMOVING AND REPLACING BOBBIN CASE
CAUTION: Before cleaning or adjusting the machine,
remove plug from the socket outlet.
• Raise presser foot and needle.
• Open slide plate and remove bobbin.
• To remove the bobbin case, the needle plate must be
removed first.
• Lift needle plate (1) from right corner and slide out
from under foot.
TO REMOVE BOBBIN CASE
• With a small screwdriver, turn lever (2) back as far as
it will go.
• Lift out bobbin case.
TO REPLACE THE BOBBIN CASE
• Guide forked end (3) of bobbin case under feed (4).
• Draw rim of bobbin case under position plate (5).
• Turn lever (2) toward you, locking bobbin case in
place.
NOTE: After locking case in place, be sure it is not
tight, but can move slightly.
• To replace needle plate, slide it under pin (6) and
push it to the left.
• Press needle plate down in place.
• Insert bobbin and close slide plate.
