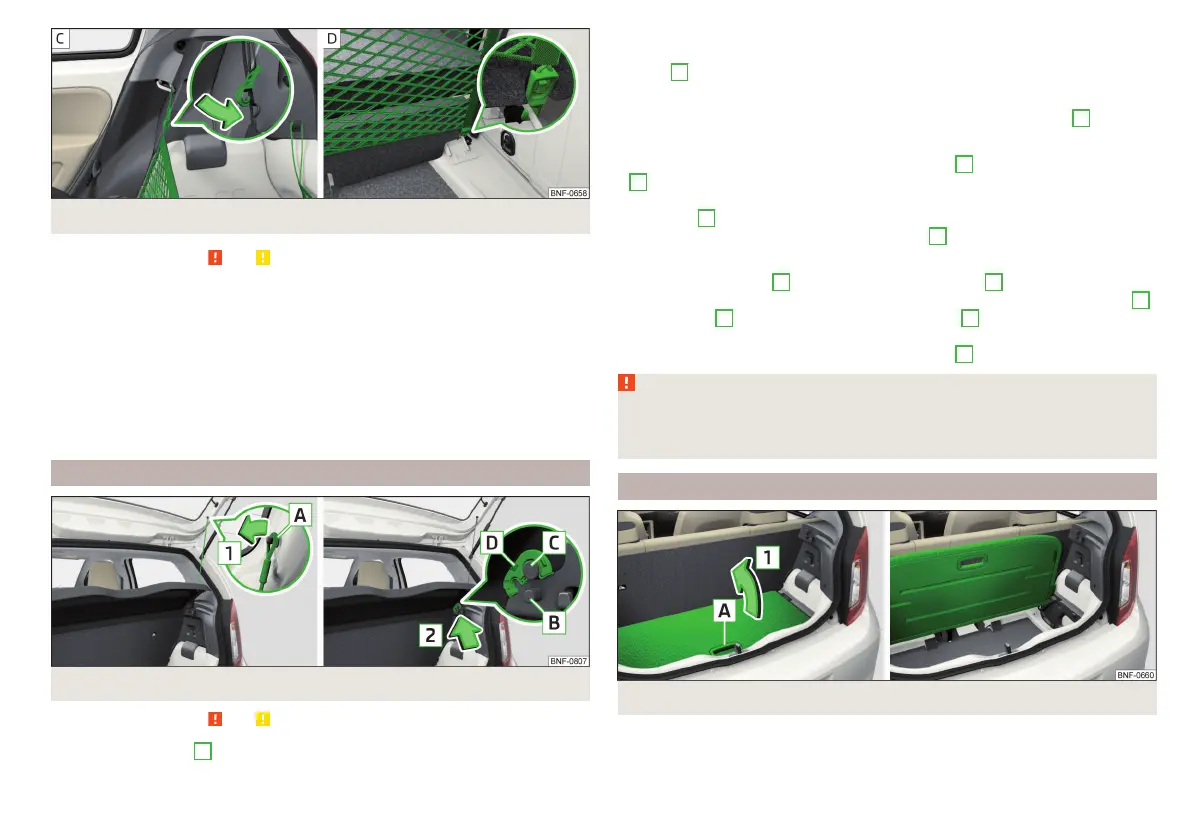

Fig. 80 Details of the fastening behind the rear seats
Read and observe and on page 68 first.
Fastening examples for nets » Fig. 79 and » Fig. 80
cross bags
Fastening details in the rear area of the luggage compartment
Details of the fastening to the upper lashing eyes behind the foldable rear
seat rest
Details of the fastening to the lashing eyes on the luggage compartment
floor behind the rear seats
The maximum permissible load for each of the nets is 1.5 kg.
Luggage compartment cover
Fig. 81 Remove the luggage compartment cover
Read and observe and on page 68 first.
If the support straps
A
» Fig. 81 are attached to the boot lid, then opening the
lid will raise the boot lid cover (hereafter referred to as cover).
Fold up and lock
›
Raise the cover and bolt it down » Fig. 81on both sides of the boot lid in the
studs
B
.
Unlocking
›
Fold the raised cover down. The cover is released from the studs
B
» Fig. 81.
Removal
›
On both sides of the boot lid unhook the straps
A
in the direction of arrow
1
» Fig. 81.
›
Press down on both sides on the underside of the cover to free them from
the studs
C
.
›
Take out the cover in the direction of arrow
2
.
Inserting
›
Position the fixtures
D
on the cover over the studs
C
» Fig. 81.
›
Press down on both sides on the top of the cover in the area of the studs
C
.
The fixtures
D
must lock into place in the studs
C
on both sides of the lug-
gage compartment.
›
On both sides of the boot lid unhook the straps
A
.
WARNING
■
Do not place any objects on the cover during the trip - risk of injury if
braking suddenly or colliding!
■
Never ride with the cover up - risk of damage to the cover.
Variable loading floor
Fig. 82 Variable loading floor in the raised position: raise / raised
69
Transport of cargo
