SKY-WATCHER EQ6-R MOUNT User Manual

14

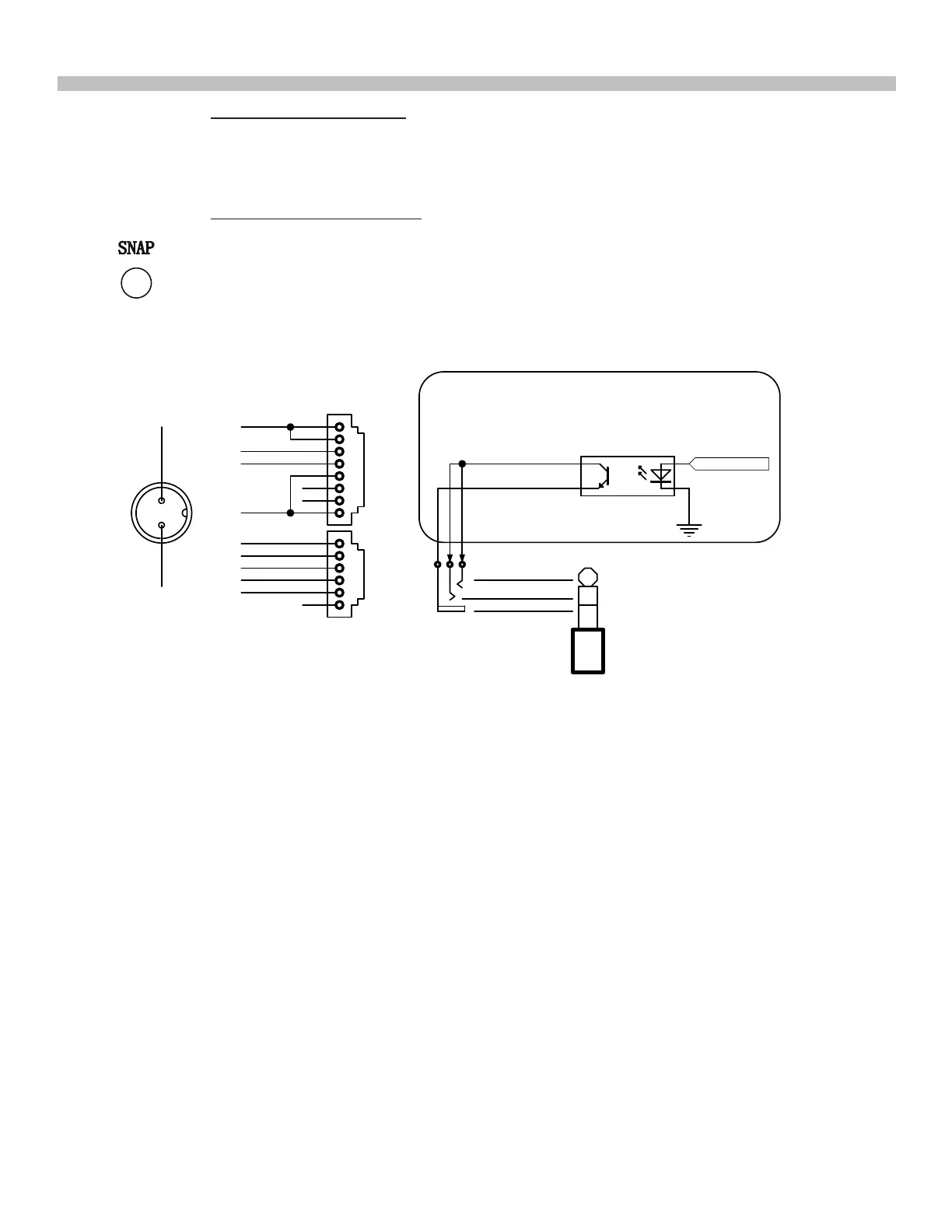

4.3 Pinout of the Interfaces:
Fig. 4.3
PART IV: ELECTRONIC CONTROL INTERFACE
Note:
• The SNAP port provides two trigger signals to the stereo plug. Some cameras need both
“Shutter“ and “Focus“ signals.
• For a camera which only needs a shutter-release signal, either trigger signals will work. For
a camera which requires a “Focus” signal ahead of the shutter-release signal, both signals
should be connected properly.
• The camera control cable shipped with the EQ6-R mount is for a Canon EOS series DSLR
camera. Cable for other cameras is optional and can be ordered separately.
• Output Voltage: DC 11V (minimum) to DC 16V (maximum). Voltage not in this range might
cause permanent damage to the motor controller or the hand controller.
• Output Current: 4A for power supply with 11V output voltage, 2.5A for power supply with
16V output voltage.
• Do not use an un-regulated AC-to-DC adapter. Contact a Skywatcher product retailer for a
recommended “AC-DC Adapter for SynScan Goto”, SKU#79024.
• If the power voltage is too low, the motor controller will stop the motors automatically.
4.4 Power Supply Requirements
4. Intermittent two ashes: The PPEC training routine has been started and the
controller in the mount has received the worm index signal and started to record
the PE correction. When the intermittent two ashes stops, it means the PPEC
training has nished.
5. Intermittent, three ashes: Sidereal tracking with PEC is now enabled.
SNAP:This is a stereo outlet for connecting to a camera’s remote control port.
2
3
4
1
5
6
7
8
HAND CONTROL
GND
Vpp+
RX(3.3V)
TX(3.3V)
2
3
4
1
5
6
AUTO GUIDE
GND
RA+
RA-
DEC+
DEC-
SNAP
Optoisolator
GND
Vpp+
POWER
Control Signal
Internal Circuit
GND
TRIGGER
