Sloan CX Series User Manual

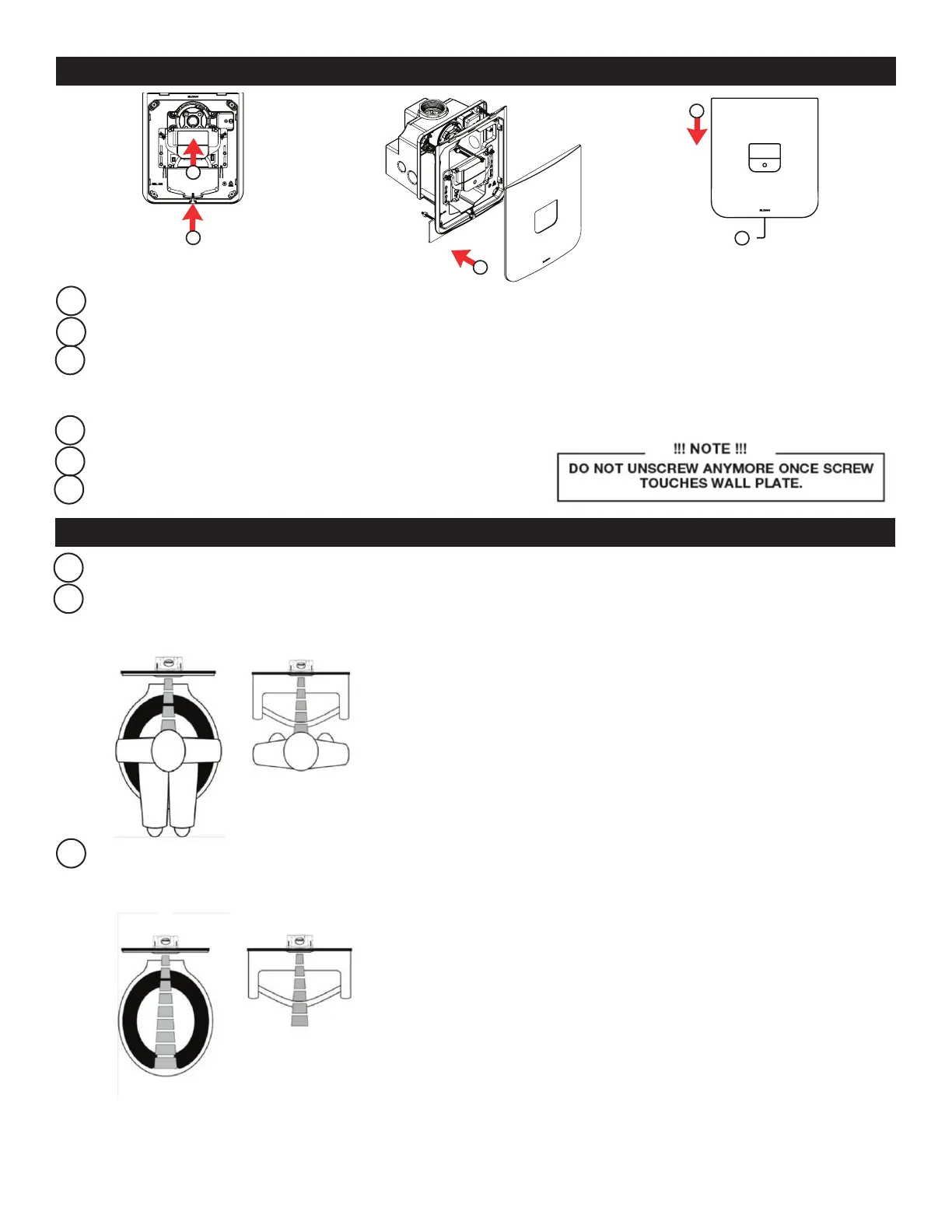

INSTALL WALL PLATE
Make sure retaining screw on bracket is fully tightened
Slide Sensor Assembly all the way up.
Align Wall Plate cut out with the window and Override Button of Sensor Assembly and
push Wall Plate all the way in.
i.Make sure sensor window and button are sitting inside the wall plate cut out.
Slide Wall Plate all the way down.
Unscrew the retaining screw using supplied Allen key until it touches wall plate.
Make sure Wall Plate doesn’t slide up.
A
B
C
OPERATION
A continuous, INVISIBLE light beam is emitted from the Sloan CX Sensor.
After the user enters the beam’s effective range, 22 to 31 inches (559 mm to 787 mm) for closet installations and 9 to 21 inches (381 mm to
762 mm) for urinal installations for ten (10) seconds the ushometer is armed.
A
B
When the user steps away, the sensor initiates a “one-time” signal that activates the ushing cycle to ush the xture (1 second delay for urinal,
3 seconds delay for closet). The Circuit automatically resets and is ready for the next user.
C
A
B
D
E
C
A
B
D
E
C
A
B
D
E
C
D
E
F
12
