22
Regular Maintenance
*2397
LUBRICATION

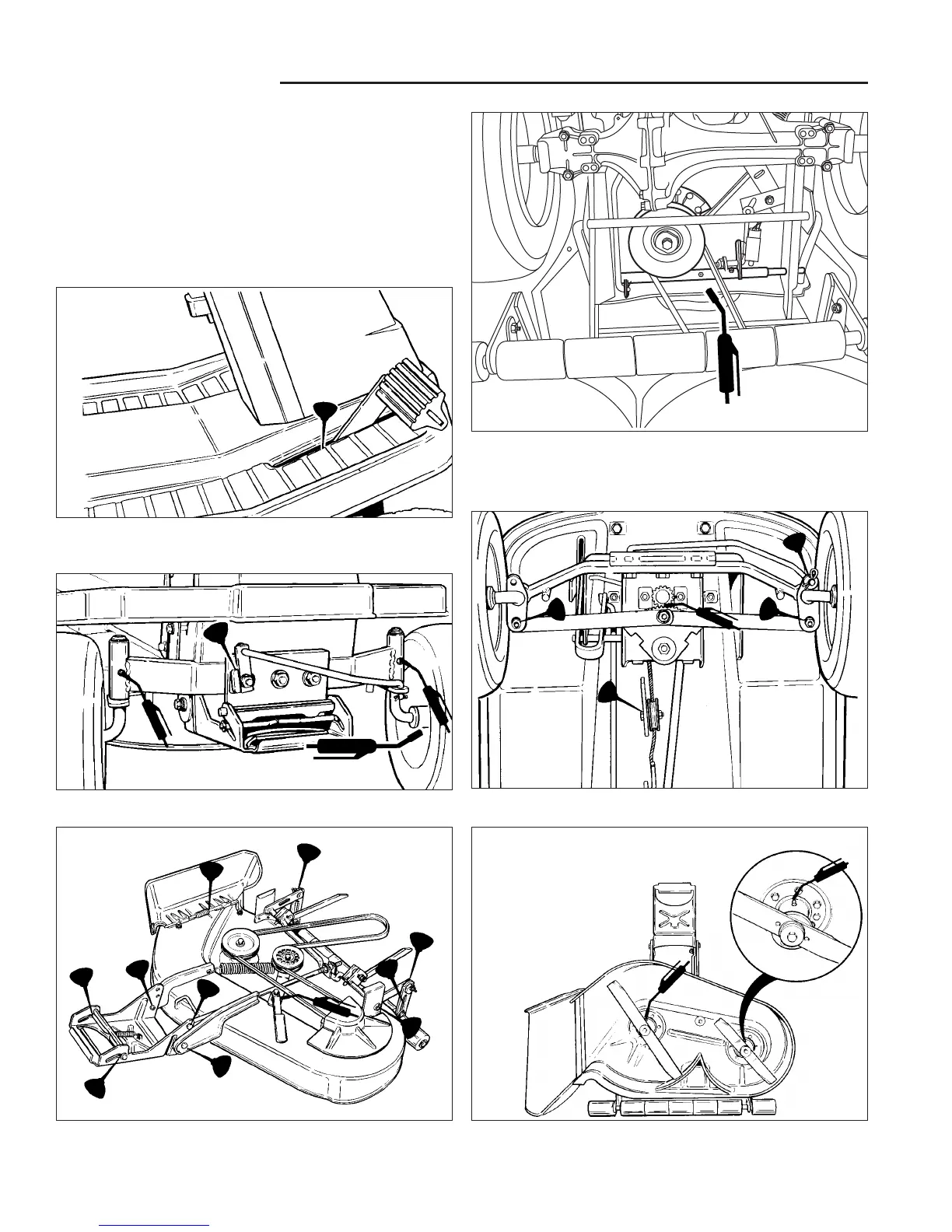

Lubricate the rider and mower as shown in Figures 11 -
16. When a grease gun is shown, wipe the fitting clean,
apply two or three shots of lithium base automotive
grease, and wipe off excess grease. When an oil can is
shown, wipe the area clean, apply a few drops of oil
(SAE 30), then wipe up drips or spills.
*2388B
Figure 11. Brake Pedal Pivot Point
Figure 12. Front Axle Lubrication Points
Figure 14. Rider Lubrication Points - Rear Half (Gear
Model Shown)
Figure 13. Mower Deck Lubrication Points
Figure 15. Rider Lubrication Points - Front Half
*2390
Figure 16. Arbor Lubrication Points
Note: On 30” mower,
grease fitting is on
topside of deck.
