Visualisation
Controller ATyS
OPERATION
59
SOCOMEC - Réf.: 532 214 C

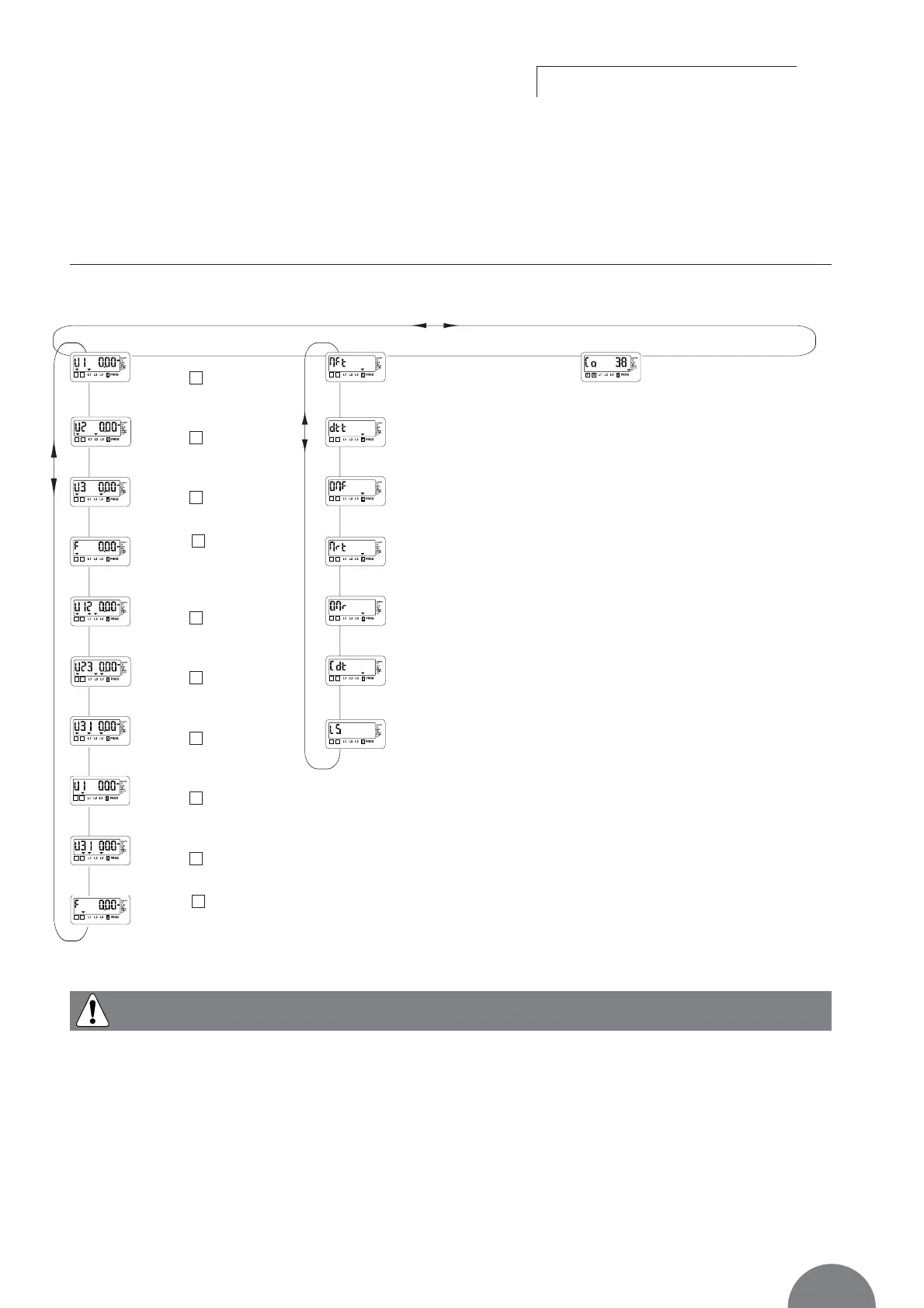

MENUS
Metering Timers Counter
Phase-neutral voltage V1 Main Failure Timer Priority source ->
network Emergency source
transfer counter
Phase-neutral voltage V2 Delay on Transfer Timer
network
Phase-neutral voltage V3 O Main Failure Timer
network
Network frequency Main Return Timer
Phase-phase U12 O Main Return Timer
network
Phase-phase U23 Cool Down Timer
network
Phase-phase U31 Load shedding*
network
Phase-neutral voltage V1
network
Phase-phase U31
network
Network frequency
* If selected.
2
2
2
1
1
1
1
1
1
1
VISUALISATION ARCHITECTURE MODE
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
1 2
All values indicated might not be available according to programmed network. Refer to annexes.
