Front/Right Side
You can use the buttons on the control panel with the same names as those on the remote
control to operate the projector.

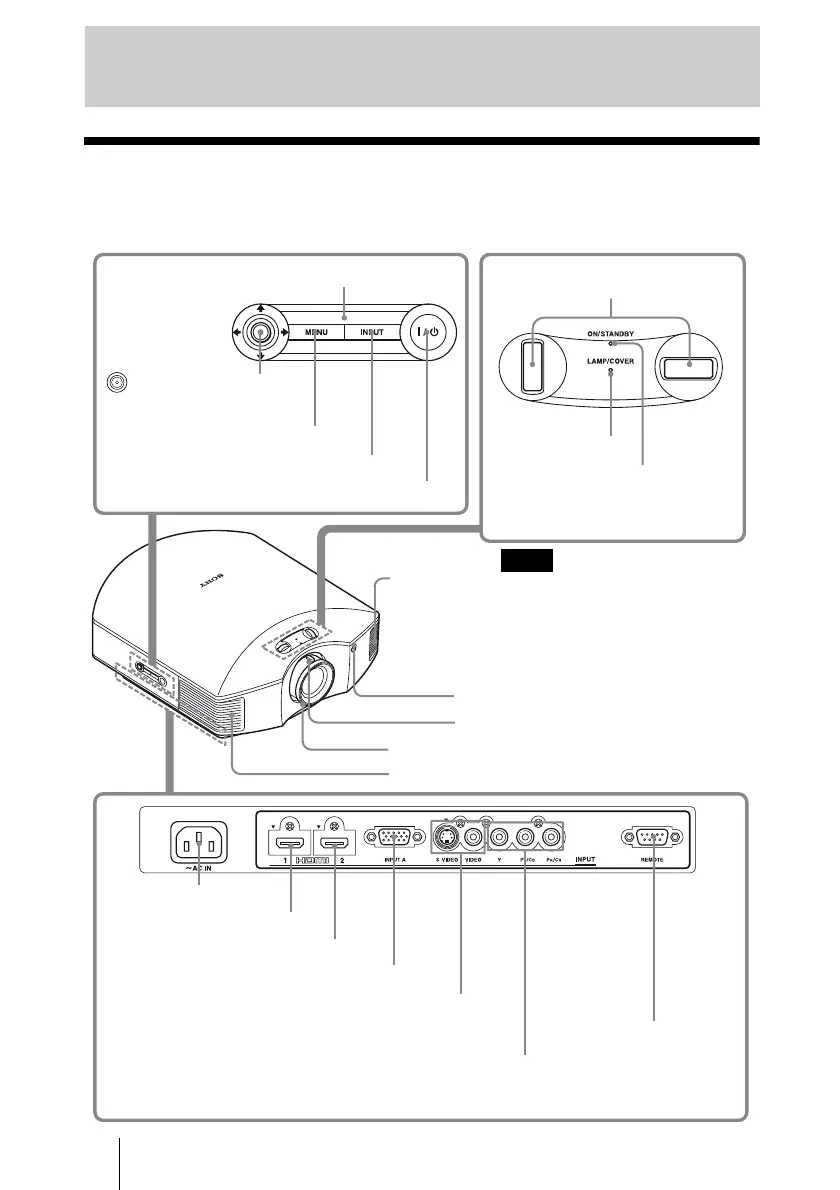

Location of Controls
INPUT button (1 page 28)
MENU button (1 page 37)
ON/STANDBY
indicator
(1 page 22)
Remote control detector (1 page 22)
Ventilation
holes (exhaust)
(1 page 13)
?/1 (ON/STANDBY) switch (1 page 23)
LAMP/COVER
indicator
(1 page 57)
M/m/</, (arrow)/
(enter) button (1 page 37)
Ventilation holes (exhaust) (1 page 13)
- AC IN socket
S VIDEO INPUT connector (mini DIN 4-pin)/VIDEO INPUT
connector (phono type) (1 page 20)
Y P
B/CB PR/CR connector
(phono type) (1 page 18)
INPUT A connector (1 page 21)
HDMI 1 connector (1 page 19)
REMOTE connector
Connects to a computer,
etc. for remote control
HDMI 2 connector (1 page 19)
While the ON/STANDBY indicator
lights in orange, the power saving
mode is on. (1 page 47)
Note
Lens shift dials (1 page 23)
Zoom lever (1 page 25)
Focus ring (1 page 25)
Control panel
