40

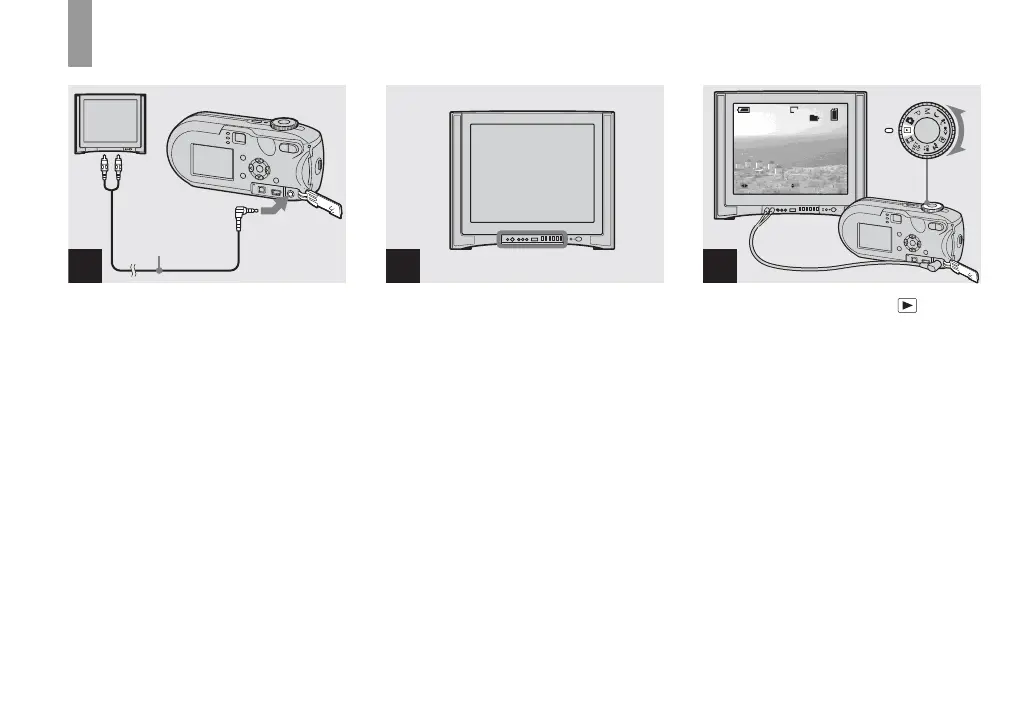

Viewing images on a TV screen
, Connect the supplied A/V
connecting cable to the A/V
OUT (MONO) jack of the
camera and the audio/video
input jacks of the TV.
If your TV has stereo type input jacks,
connect the audio plug (black) of the A/V
connecting cable to the Lch audio input
jack.
• Turn off both the camera and the TV before
connecting the camera and the TV with the A/V
connecting cable.
, Turn on the TV, and set the TV/
Video switch to “Video.”
• The name and location of this switch may differ
depending on your TV. For details, refer to the
operating instructions supplied with the TV.
, Set the mode dial to , and
turn on the camera.
Press b/B on the control button to select the
desired image.
• When using the camera abroad, it may be
necessary to switch the video output signal to
match that of your TV system (page 117).
1
A/V OUT
(MONO)
jack
A/V connecting
cable (supplied)
2
TV/Video switch
3
BACK/NEXT
10:30PM2005 1 1101-0002
VOLUME
2/9
101
VGA
