25
US
Getting Started

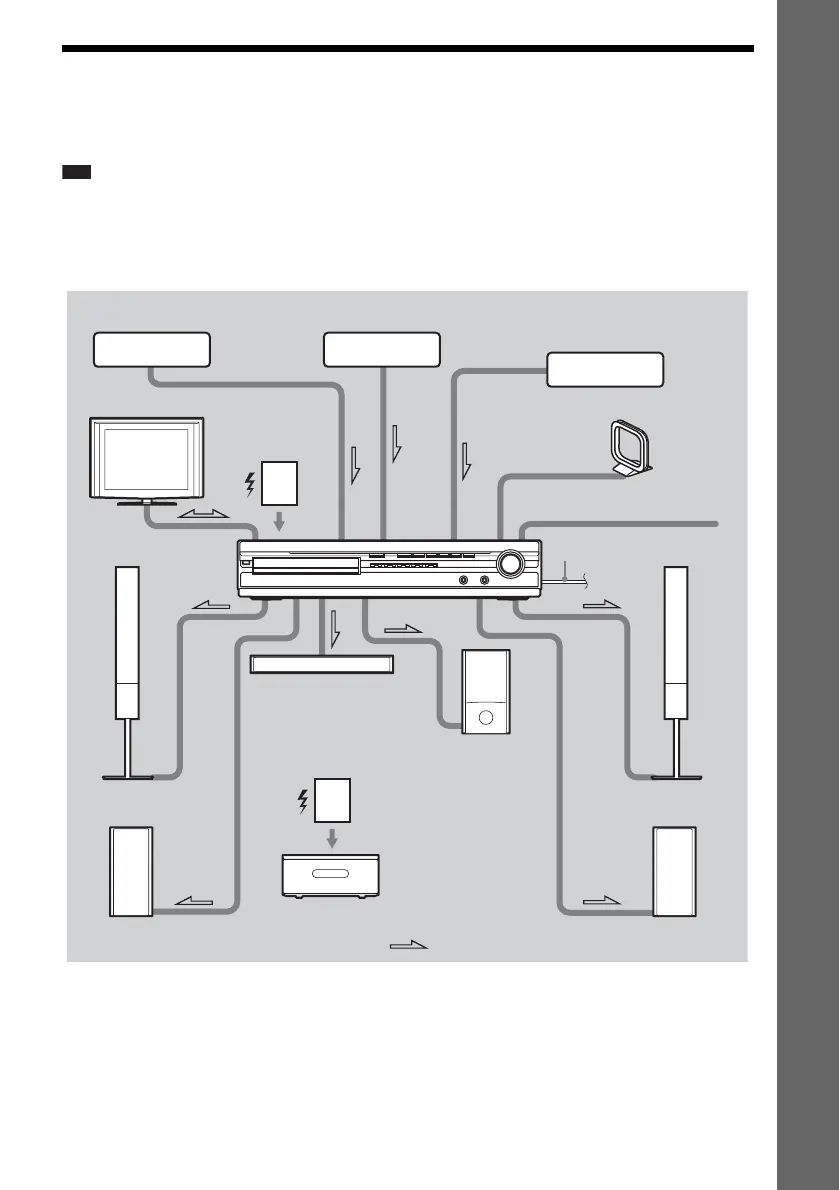

Step 3: Connecting the System
See the connection diagram below, and read the additional information from 1 to 6 on the following
pages.
Note
• Be sure to make connections securely to avoid hum and noise.
• When you connect another component with a volume control, turn up the volume of the other components to a level
where sound is not distorted.
DAV-HDX575WC
4 AM loop antenna (aerial)
1 Subwoofer
6 AC power cord (mains lead)
4 FM wire antenna (aerial)
2 TV
1 Front speaker (L)
1 Center speaker
1 Front speaker (R)
1 Surround speaker (L)
1 Surround speaker (R)
:Signal flow
3 DIGITAL MEDIA
PORT adapter
3 Portable audio source
3 VCR, digital satellite receiver,
or PlayStation, etc.
5 Wireless
transceiver
S-AIR receiver
5 Wireless
transceiver
To Next Page
