2-2-2. CABINET (REAR) SECTION
Follow the disassembly in the numerical order given.
1 Cabinet (Rear) (1-1 to 1-4)
2 Cabinet (Upper) (2-1 to 2-8)

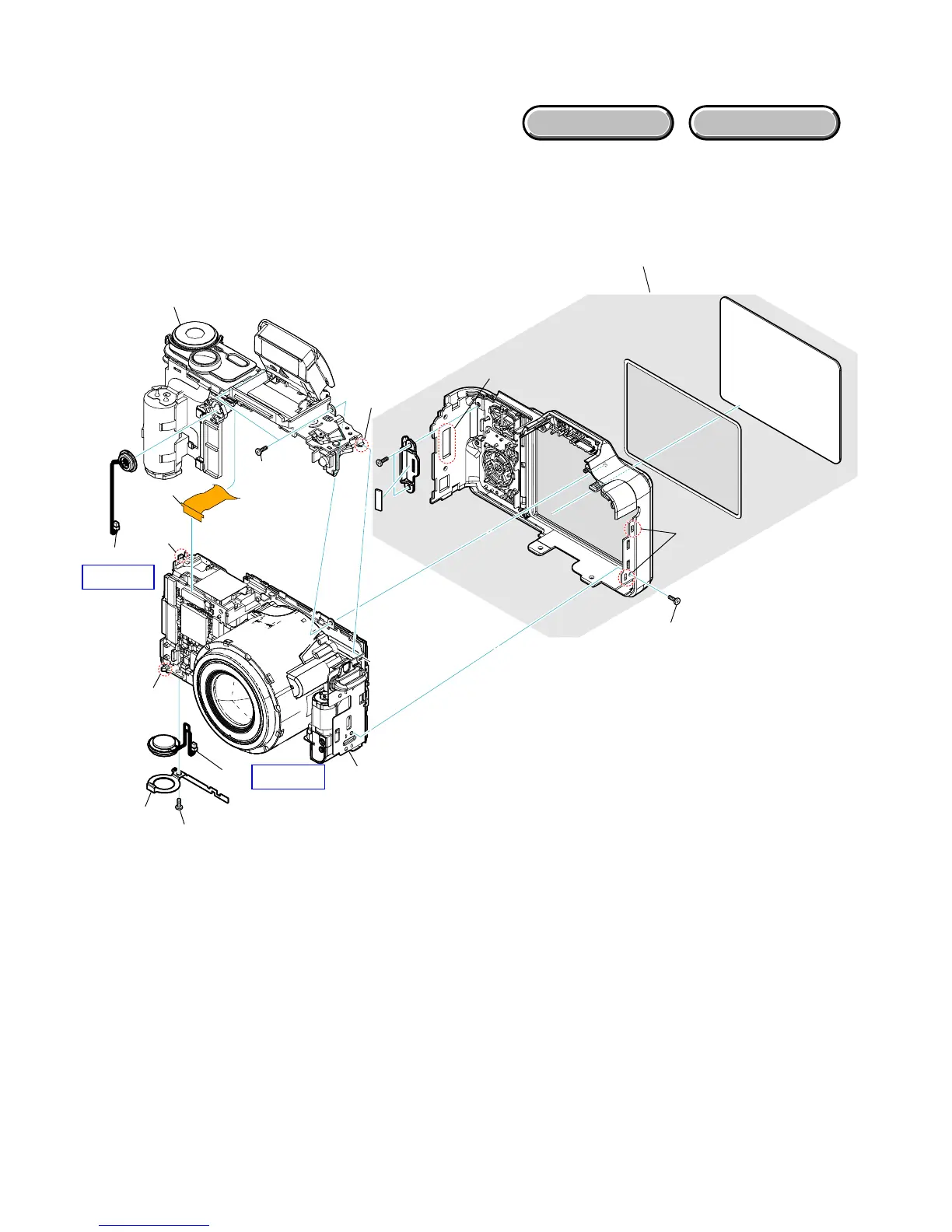

EXPLODED VIEW
HARDWARE LIST
Main Board Section
(See Page 2-6)
2-1 (#69)
2-5
(Claw)
2-2
2-3
2-6
(Claw)
2-4
2-8
2 Cabinet (Upper)
HELP01
HELP01
1 Cabinet (Rear)
1-1 (#25/#69)
1-3 (Claw)
1-4 (MC Connector)
1-2 (#23)
2-7
(Claw)
