5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H10_L2

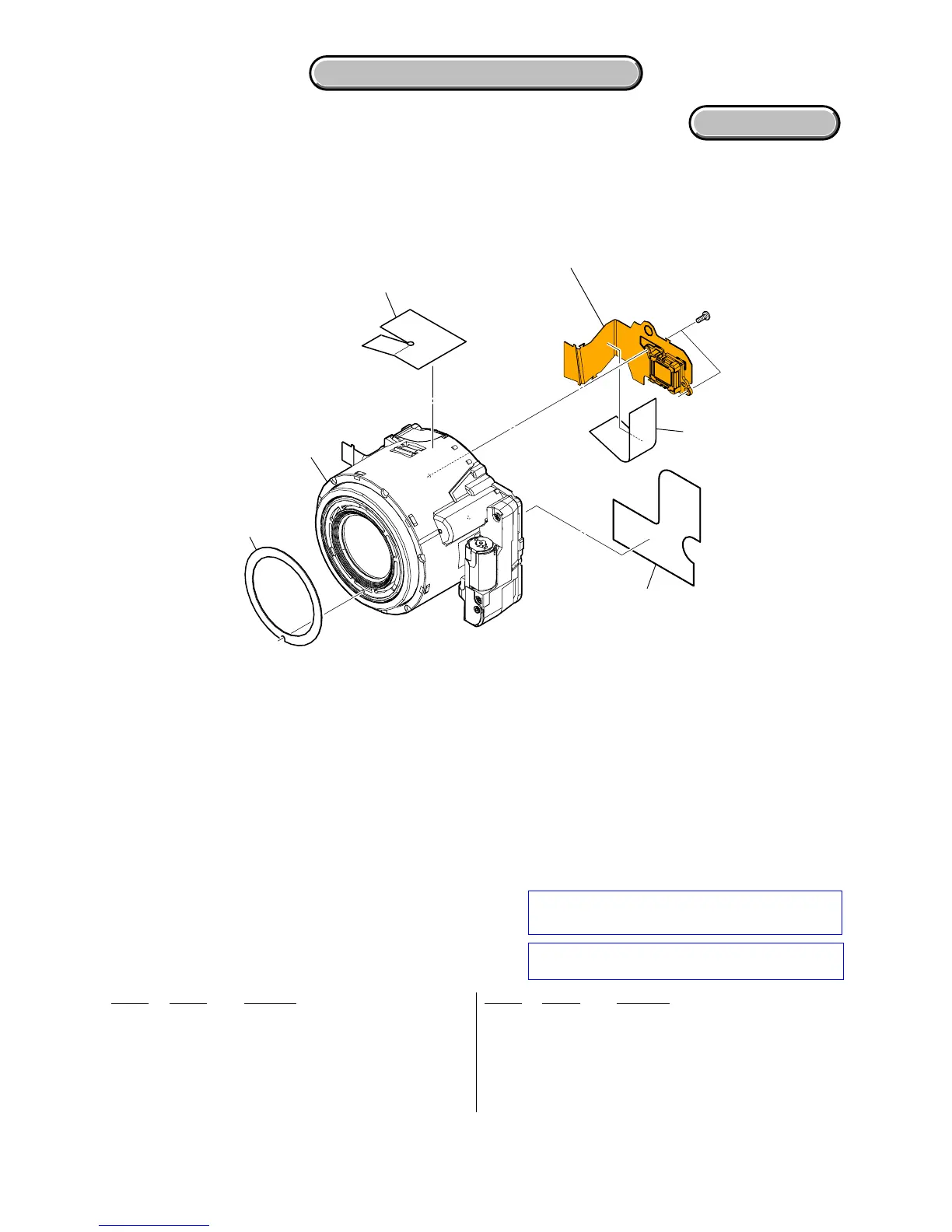

5-1-5. LENS SECTION
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
Note: Be sure to read “Precuations for Replacement of
Imager” on page 4-2.
#3
0
201
202
203
206
204
205
(including IC001 (CCD imager) and
CD-708 flexible complete board) (Note)
201 3-271-144-01 LABEL, LENS
202 A-1530-429-A LENS BLOCK ASSY (SERVICE USE)
* 203 3-271-143-01 SHEET, LENS FLEXIBLE PROTECTION
* 204 3-271-033-01 CUSHION, LENS RETAINER
205 A-1253-418-A CCD BLOCK ASSY
(including IC001(CCD imager) and CD-708 flexible complete
board)(Note)
206 3-452-320-01 SHEET, CD RADIATION
#30 3-086-156-11 SCREW B1.2 (White)
