5-5

5. REPAIR PARTS LIST

DSC-H10_L2

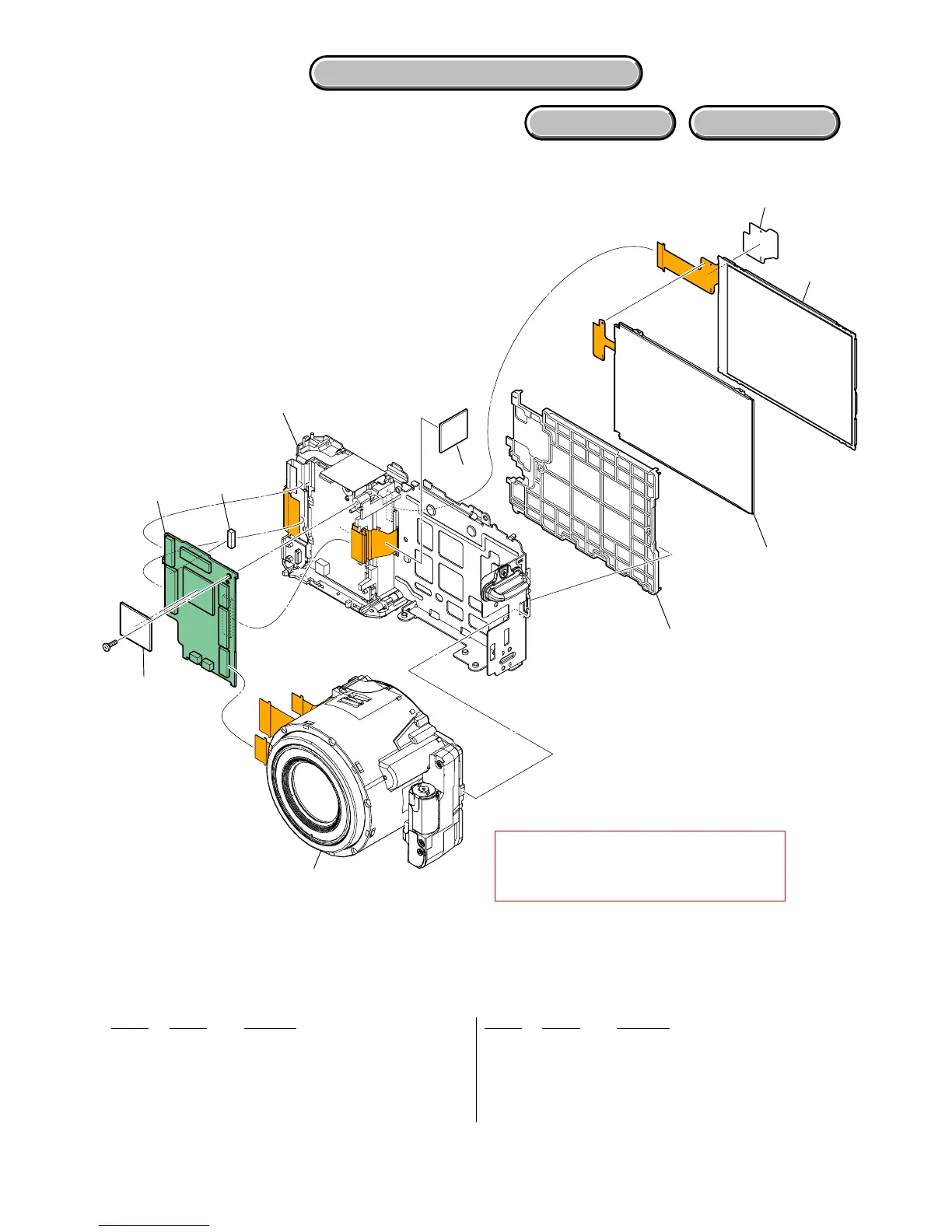

5-1-4. MAIN BOARD SECTION

HARDWARE LIST

Ref. No. Part No. Description Ref. No. Part No. Description

DISASSEMBLY

SY-210

151

157

Lens Section

(See Page 5-6)

BT Holder Section

(See Page 5-7)

LCD901

#23

(Note)

152

153

156

155

154

In case of attaching SY radiation sheet,

be sure to attach it in the center of IC softly.

(Do not attach it out of the IC outline and

press it forcefully.)

Note:

151 A-1540-062-A SY-210 BOARD, COMPLETE (SERVICE)

* 152 3-271-034-01 SPACER, SY

* 153 3-876-936-01 SHEET KK

154 3-299-189-01 HOLDER, LCD

155 1-480-592-11 BLOCK, LIGHT GUIDE PLATE (3.0)

156 3-279-518-01 SHEET, FLEXIBLE PROTECTION

* 157 3-211-271-01 SHEET, SY RADIATION (Note)

LCD901 A-1313-464-A SERVICE, LCD BLOCK ASSY

#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
