5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H10_L2

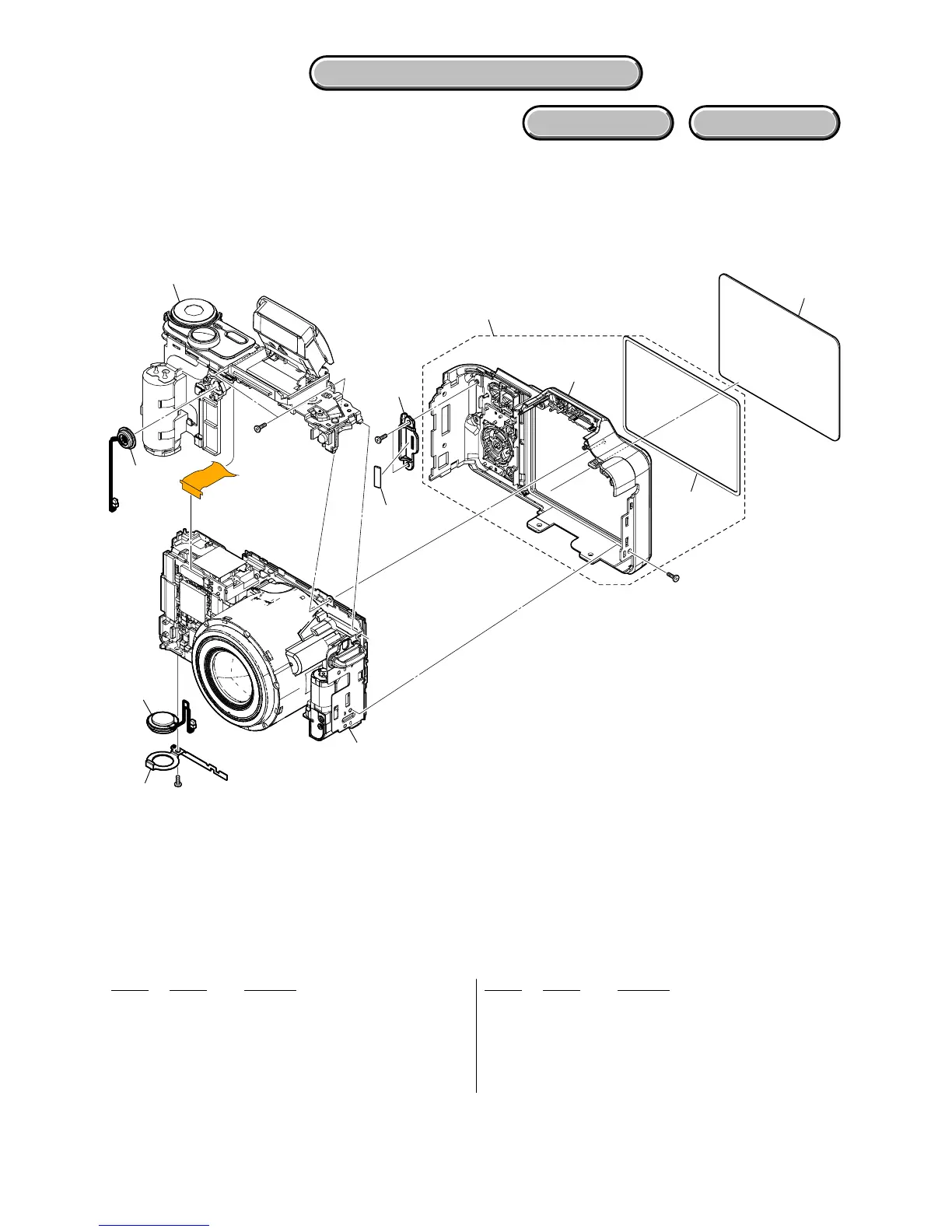

5-1-2. CABINET (REAR) SECTION
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
SP901
ns
52
51
ns
#25
#69
#69
#23
#23
MIC901
53
54
55
Main Board Section
(See page 5-5)
Cabinet (Upper) Section
(See page 5-4)
* 51 3-299-186-01 SHEET, RADIATION
52 3-299-185-01 BRACKET (BT), STRAP
53 X-2189-799-1 CABINET (REAR) ASSY (SILVER)
53 X-2189-800-1 CABINET (REAR) ASSY (BLACK)
54 3-299-176-01 SHEET, LCD WINDOW ADHESIVE
55 3-299-191-01 WINDOW, LCD
MIC901 1-542-728-21 MICROPHONE
SP901 1-825-945-51 LOUDSPEAKER (1.3CM)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#25 2-635-562-21 SCREW (M1.7) (Black)
#69 2-599-475-21 SCREW (M1.7) (Silver)
