4-1
DSC-S700
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-210-010-01 SCREW TP1.7*3
2 3-209-036-01 SCREW TP1.7*3
3 X-2177-832-1 CABINET (FRONT) ASSY
4 3-197-606-01 LID, BT
5 3-197-603-01 MIDDLE COVER (LEFT)
6 3-197-601-01 BOTTOM, CABINET
7 3-197-605-01 LID, JK
8 3-197-602-01 MIDDLE COVER (RIGHT)
9 A-1254-905-A CABINET (UPPER) BLOCK ASSY
10 X-2177-833-1 CABINET (REAR) ASSY
11 3-209-037-01 SCREW TP1.7*3
12 3-197-610-01 KEY, SHEET
4. REPAIR PARTS LIST
4-1. EXPLODED VIEWS

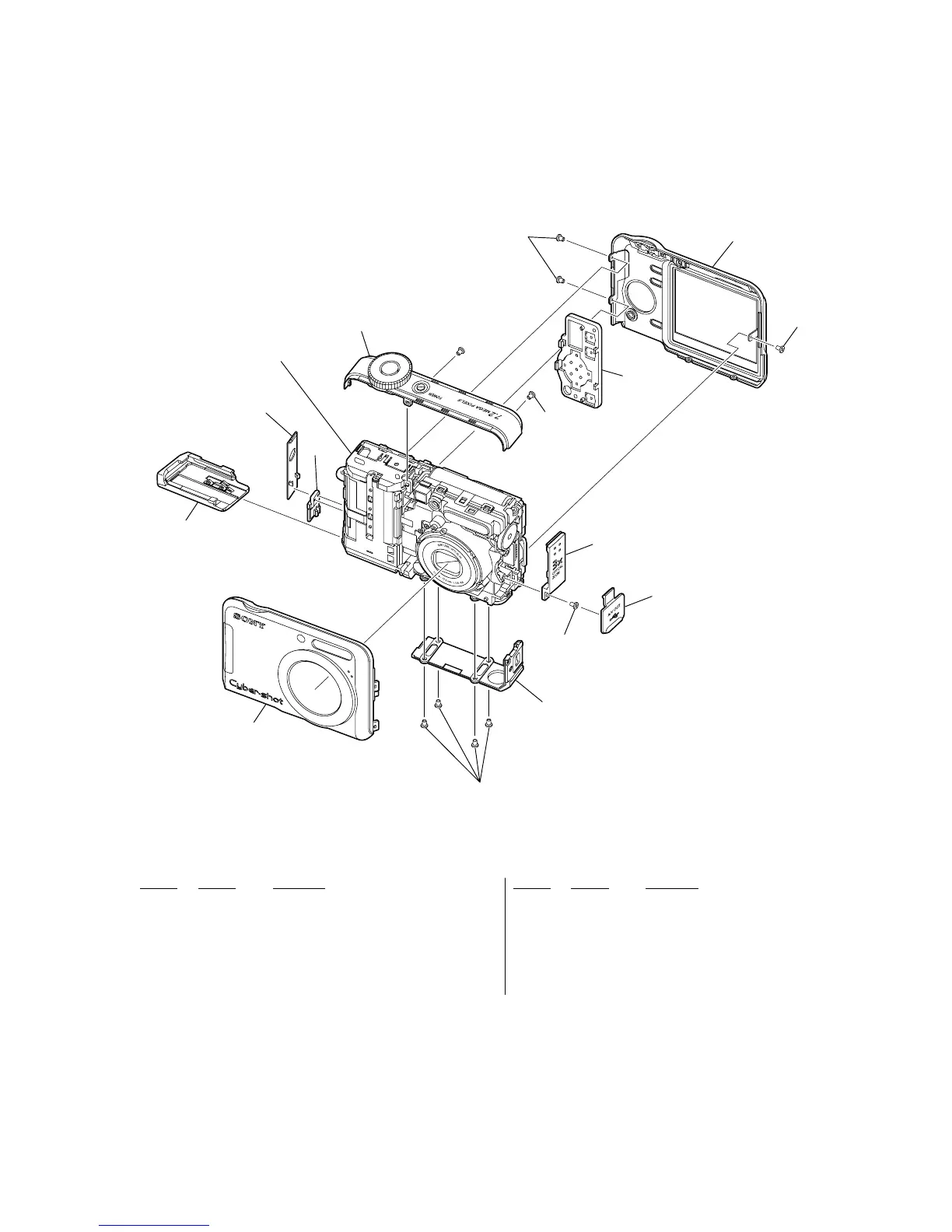

4-1-1. OVERALL SECTION
ns: not supplied
Main Frame Block
(See 4-1-2)
2
2
11
12
10
2
9
5
4
3
6
7
8
11
1
ns
