4-2
DSC-S700
Ref. No. Part No. Description

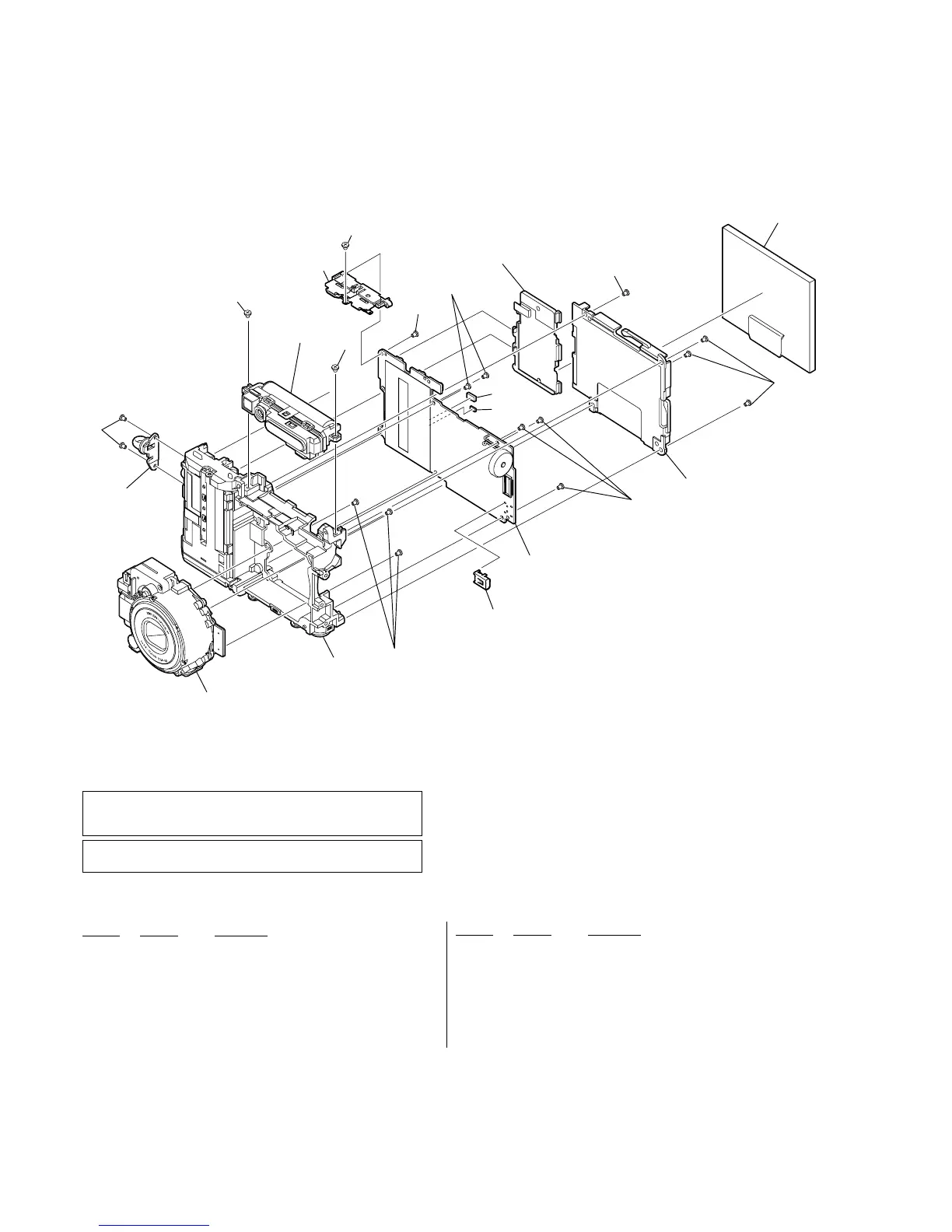

4-1-2. MAIN FRAME BLOCK
51 3-113-002-01 SCREW TP1.4*3
52 3-209-036-01 SCREW TP1.7*3
53 3-197-607-01 BRACKET, STRAP
0 54 A-1249-950-A ST BLOCK ASSY (Note 2)
55 3-197-609-01 HOLDER, LCD
56 A-1254-907-A FLEXIBLE BLOCK ASSY, SW
4. REPAIR PARTS LIST
ns: not supplied
(Note 2) The adjustment is not required after replacing the ST block
assembly or LCD.
• Refer to cover for mark 0.
(Note 1) In case of the main board, or main frame assembly
failure, contact your local Sony Service Headquarter for
the measures.
Ref. No. Part No. Description
57 3-197-608-01 LCD (Note 2)
* 58 1-820-333-11 MULTI CONNECTOR (REC) 8P
59 X-2319-398-1 BASE, BT
0 F1 1-576-913-11 FUSE, MICRO (1608 TYPE) (1.6A/36V)
0 F2 1-576-363-11 FUSE, MICRO (1005 TYPE) (1A/30V)
Lens Block
(See 4-3)
ns
(Note 1)
ns
(Note 1)
57
(Note 2)
51
52
58
55
52
52
56
52
52
59
51
52
52
52
53
54
(Note 2)
F1
F2
Ver. 1.3 2008.07
The changed portions from
Ver. 1.2 are shown in blue.
• Items marked “*” are not stocked since they are seldom required for
routine service. Some delay should be anticipated when or
dering these items.
