2-1
DSC-S700
2. DISASSEMBLY
2-1. DISASSEMBLY

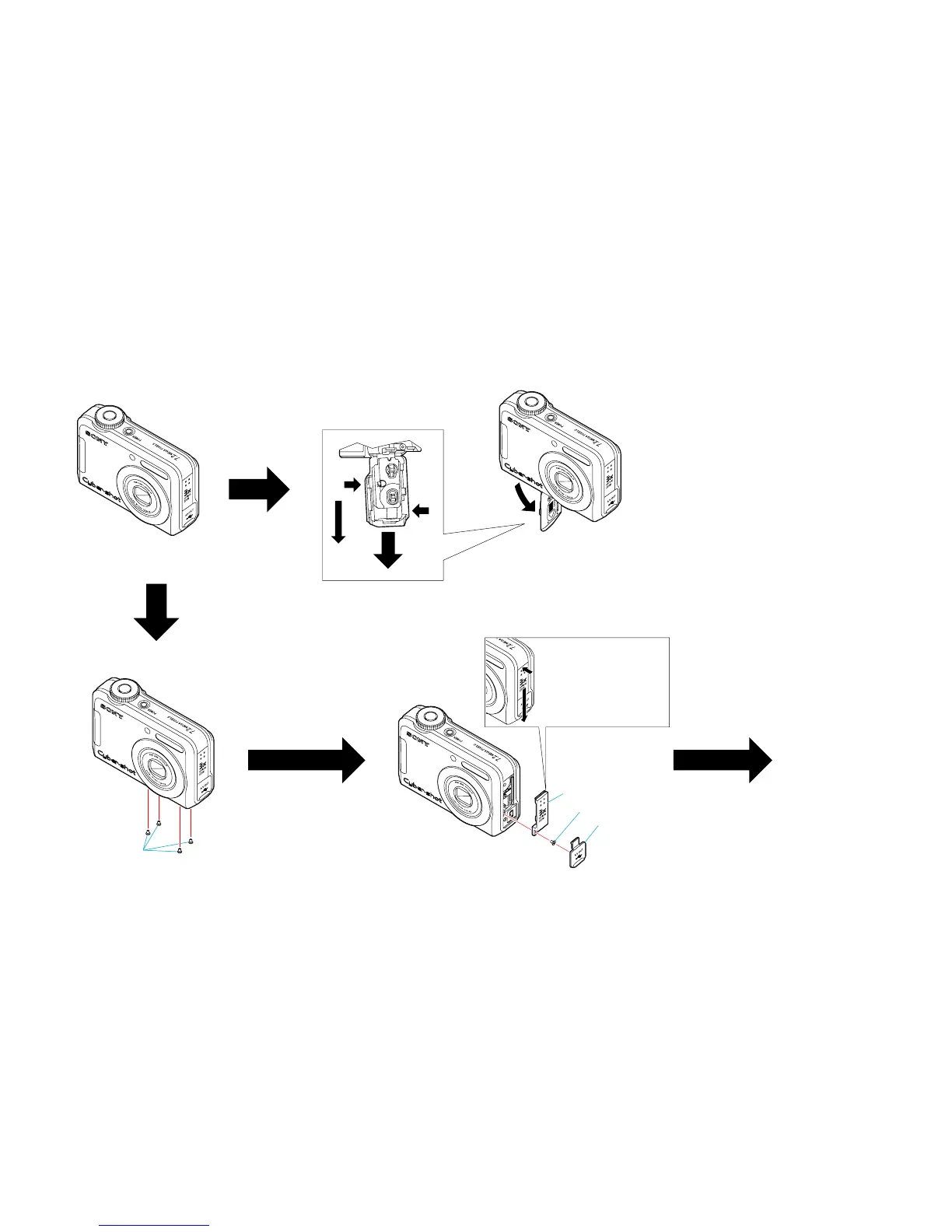

The following flow chart shows the disassembly procedure.
(See Page 2-2)
1
3
2
1
3
1
2
A
1 Screw TP1.7 × 3.0
Battery case lid removal
1 Pull out the battery case slowly until stop
2 Put a nail into a slot
3 Pull the battery case in the direction of arrow A
Push middle cover (right) as
shown to reveal the gap.
1 Screw TP1.7
× 3.0
2 Middle Cover (Right)
3 Jack Cover
