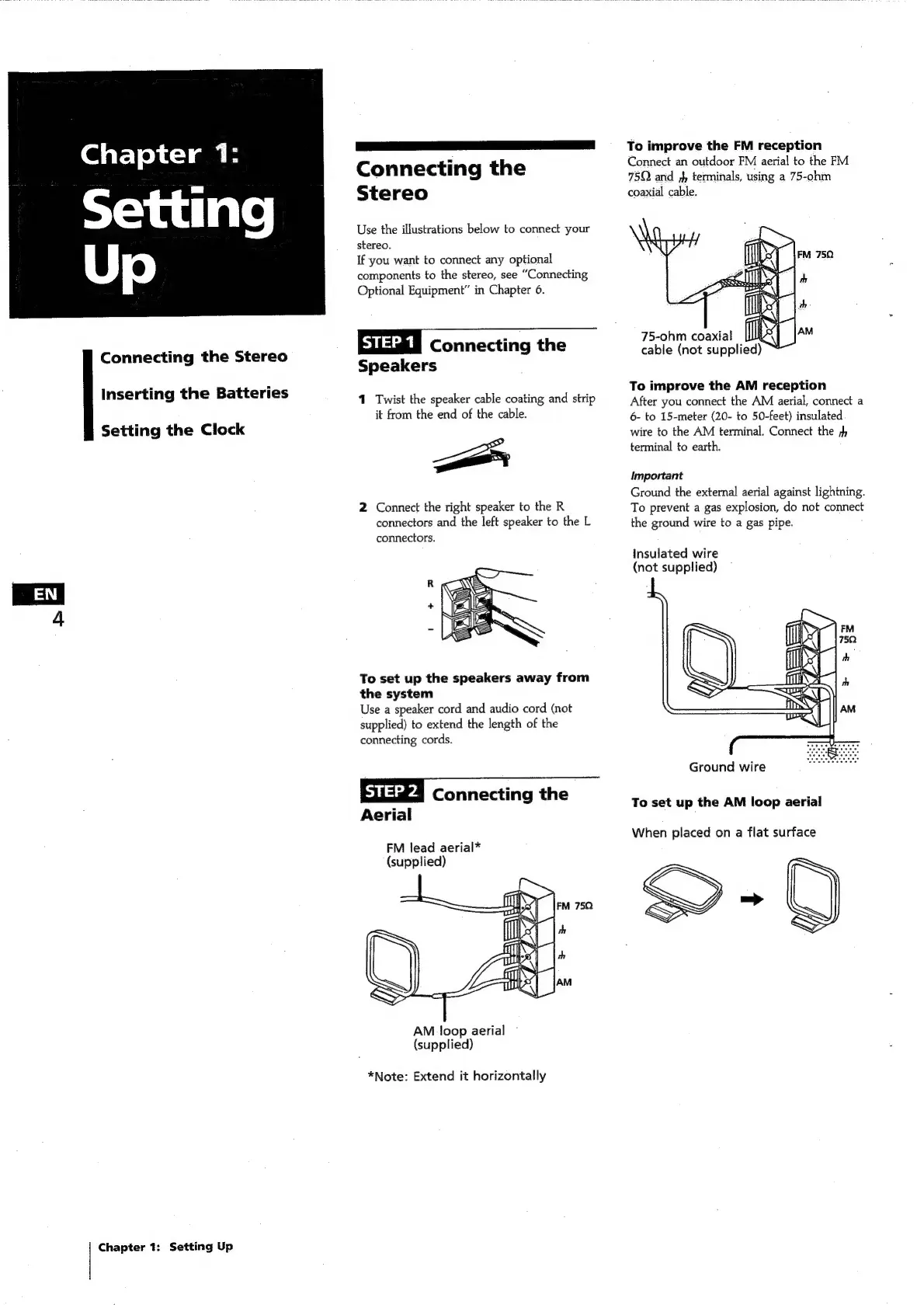

Chapter 1: Setting Up
Sa ee eee
Connecting the
Stereo
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see “Connecting
Optional Equipment” in Chapter 6.
| STEP 1 | Connecting the
Speakers
1 Twist the speaker cable coating and strip
it from the end of the cable.
a
2 Connect the right speaker to the R
connectors and the left speaker to the L
connectors.
To set up the speakers away from
the system
Use a speaker cord and audio cord (not
supplied) to extend the length of the
connecting cords.
|STEP 2 Connecting the
Aerial
FM lead aerial*
(supplied)
AM loop aerial
(supplied)
*Note: Extend it horizontally
To improve the FM reception
Connect an outdoor FM aerial to the FM
75Q, and j, terminals, using a 75-ohm
coaxial cable.
To improve the AM reception
After you connect the AM aerial, connect a
6- to 15-meter (20- to 50-feet) insulated
wire to the AM terminal. Connect the 4,
terminal to earth.
important
Ground the external aerial against lightning.
To prevent a gas explosion, do not connect
the ground wire to a gas pipe.
Insulated wire
(not supplied)
Ground wire
To set up the AM loop aerial
When placed on a flat surface
