61
HCD-DH50R/DH70SWR
SECTION 6
EXPLODED VIEWS
1 3-077-331-21 +BV3 (3-CR)
2 4-141-548-01 SIDE_R
3 4-141-547-01 SIDE_L
4 X-2514-318-1 TOP ASSY (DH50R: AEP)
4 X-2514-319-1 TOP ASSY (DH50R: RU, SP, TW, KR, TH)
4 X-2514-320-1 TOP ASSY (DH70SWR: AEP)
4 X-2514-321-1 TOP ASSY (DH70SWR: RU)
5 X-2514-754-1 TOUCH PANEL ASSY (Including KEY board)
6 3-087-053-01 +BVTP2.6 (3CR)
7 4-141-507-01 COVER, BACK
8 4-156-673-01 CUSHION (10X20)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
KR : Korean model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model

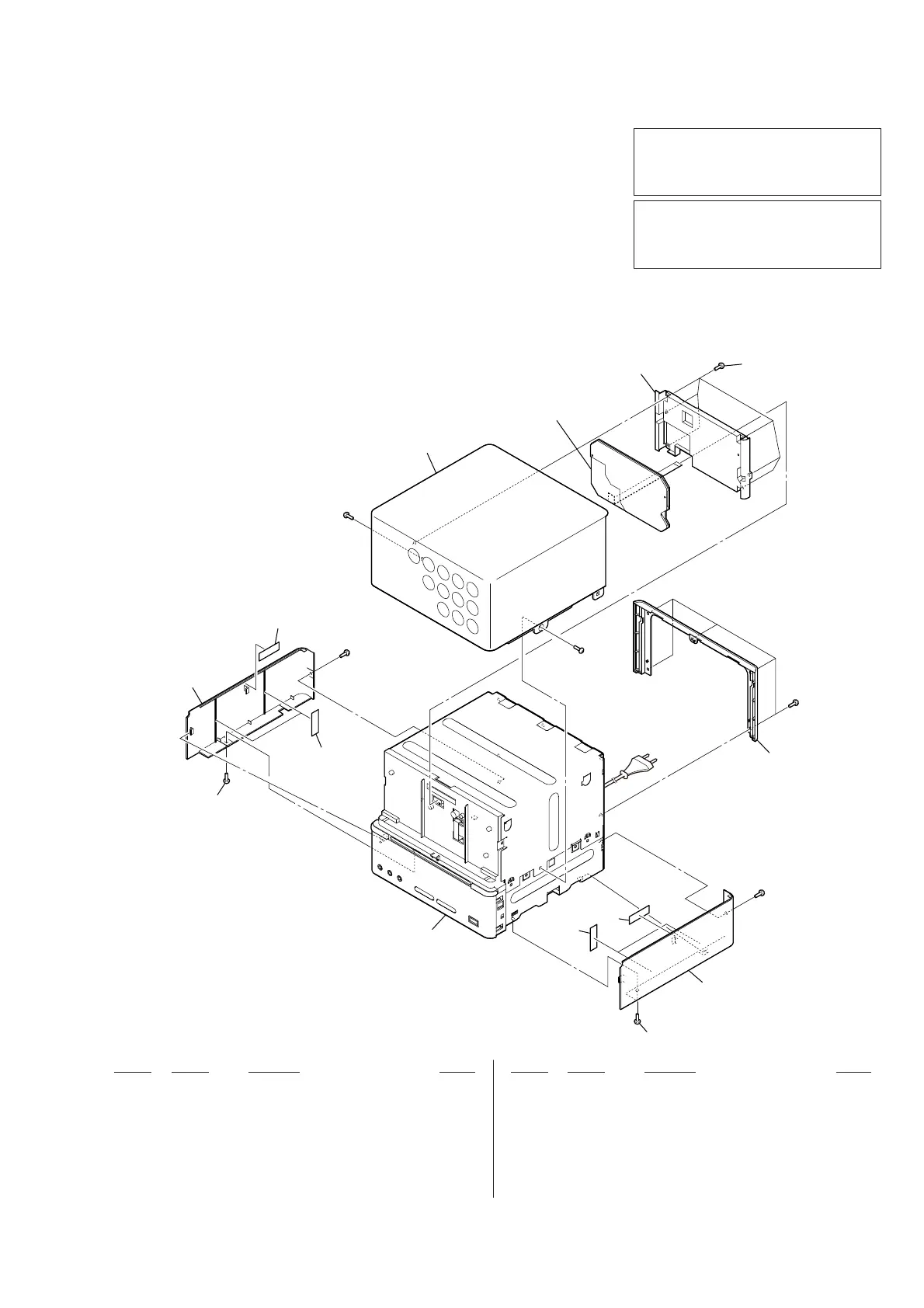

6-1. TOP PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
not supplied
#2
#2
#1
rear panel section
#1
#1
1
1
2
7
6
5
(including KEY board)
4
3
8
8
8
8
Ver. 1.1
To Next Page
