Sony HCD-DH70SWR User Manual

63
HCD-DH50R/DH70SWR

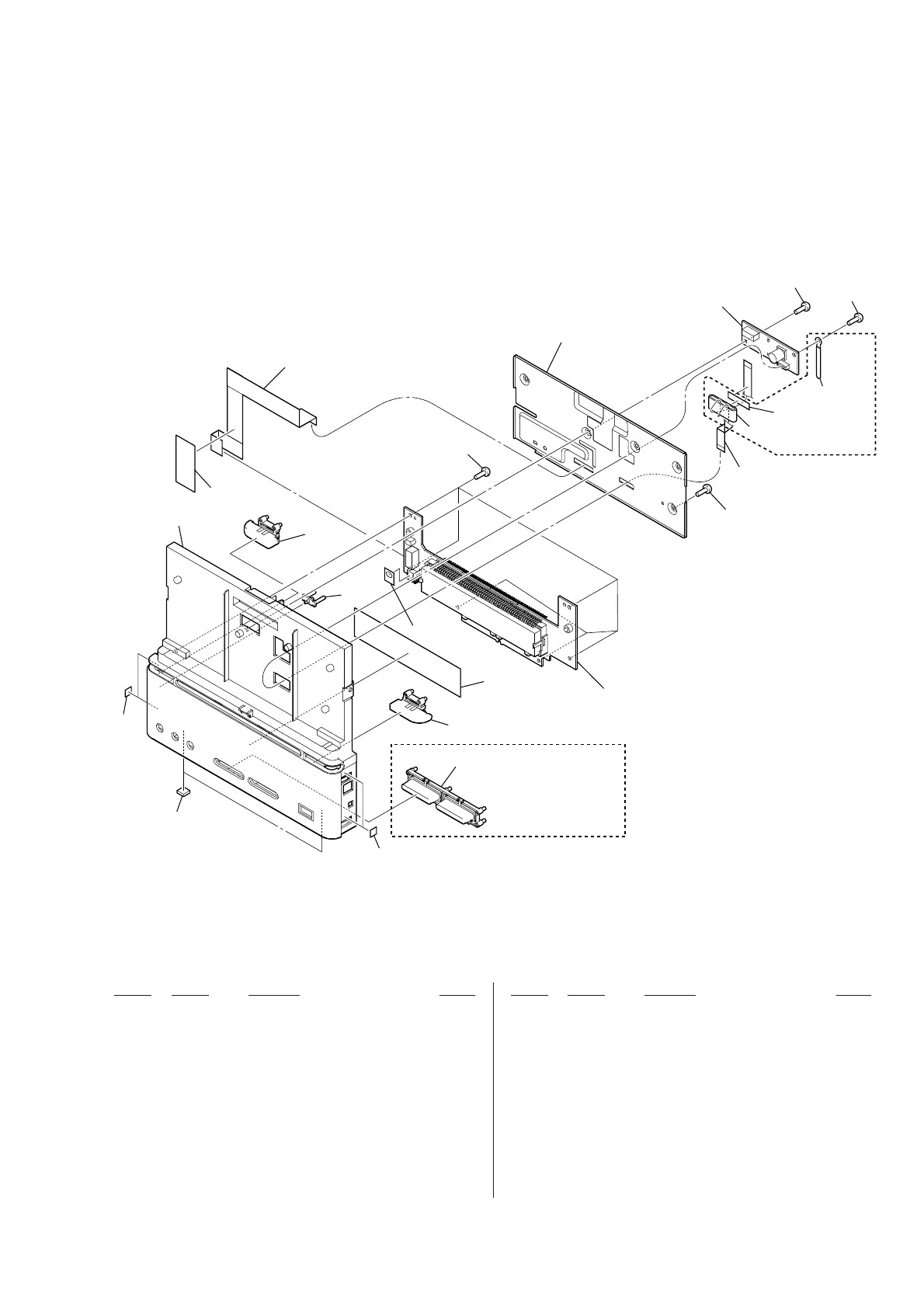

6-3. FRONT PANEL SECTION
101 4-233-372-02 FOOT (FELT)
102 A-1711-945-A FRONT PANEL ASSY (CE1) (DH50R: AEP)
102 A-1711-946-A FRONT PANEL ASSY (RU1)
(DH50R: RU, SP, TW, KR, TH)
102 A-1711-947-A FRONT PANEL ASSY (DH70SWR: AEP)
102 A-1711-948-A FRONT PANEL ASSY (DH70SWR: RU)
103 4-141-534-01 BTNEJECT (
Z
)
104 4-141-535-01 BTNMIC (– MIC LEVEL +, – ECHO LEVEL +)
(RU, SP, TW, KR, TH)
105 4-141-608-01 FL SHEET
106 4-141-540-01 IND_POWER (I/
1
)
107 4-141-536-01 BTNPOWER (I/
1
)
108 4-145-432-01 SHEET, FFC
109 1-832-577-21 CABLE, FLEXIBLE FLAT (13 CORE)
110 3-087-053-01 +BVTP2.6 (3CR)
111 1-832-543-21 CABLE, FLEXIBLE FLAT (7 CORE)
(DH70SWR: AEP)
111 1-832-545-21 CABLE, FLEXIBLE FLAT (7 CORE)
(DH50R/DH70SWR: RU)
112 1-457-413-11 CORE, FERRITE (DH50R/DH70SWR: RU)
113 2-681-451-01 SHEET (RM)
114 3-831-441-11 CUSHION (B)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
(JUNCTION board)
not supplied
not supplied
not supplied
(PANEL board)
not supplied
110
110
112
111
110
110
109
108
107
113
105
106
102
101
104
103
(RU, SP, TW, KR, TH)
(DH50R/
DH70SWR: RU)
114
114
Ver. 1.1
