9
HCD-DZ555K/DZ556KB/DZ750K
SECTION 2
GENERAL
This section is extracted
from instruction manual.

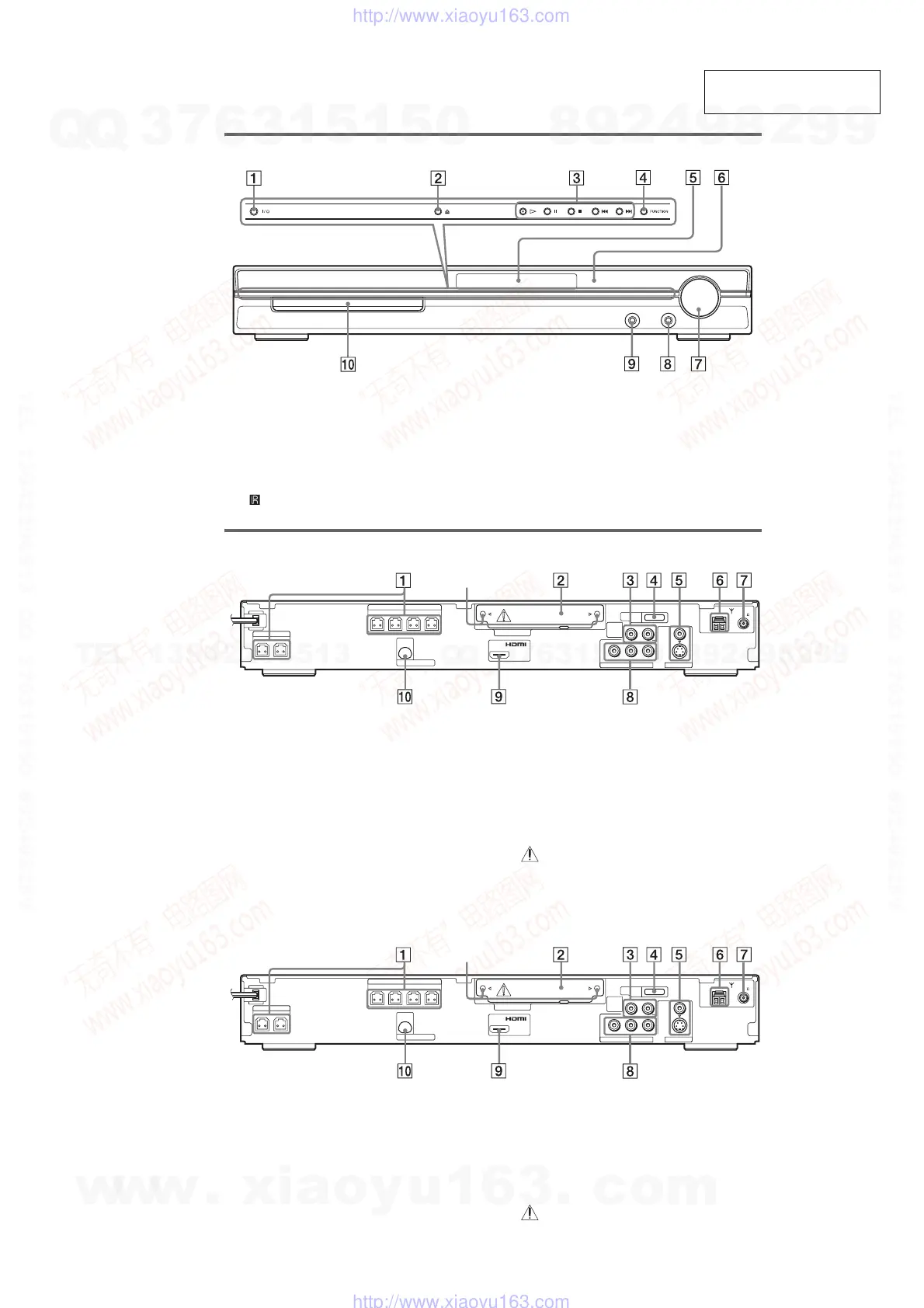

Front panel
A "/1 (on/standby) (31)
B A (open/close) (31)
C Disc operation (31)
D FUNCTION (31)
E Front panel display (101)
F (remote sensor) (9)
G VOLUME control (31)
H MIC 2 jack (64)
I AUDIO IN/MIC 1/A.CAL MIC jack (20, 29,
64)
J Disc tray (31)
Rear panel
DZ555K/DZ556KB
A SPEAKER jacks (15)
B DIR-TC1 slot for the WAHT-SD1 (29)
C TV/VIDEO (AUDIO IN R/L) jacks (29)
D DMPORT (DIGITAL MEDIA PORT) jack
(except for Mexican and Latin
American models) (29, 69)
E MONITOR OUT (S VIDEO/VIDEO) jacks
(25)
F AM terminal (15)
G COAXIAL FM 75Ω jack (15)
H COMPONENT VIDEO OUT jacks (25)
I HDMI OUT jack (25)
J D-LIGHT SYNC OUT jack (29)
(Singaporean, Mexican, and Latin
Ameri
(Terminals for TH destination are
same as those for SP destination.)
can models only)
* CAUTION
Please do not remove the screws before
installing the WAHT-SD1.
D-LIGHT SYNC OUT
COAXIAL
AM
FM75
(DVD ONLY)
OUT
DMPORT
DIR-TC1
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
SPEAKER
SPEAKER
TV /
VIDEO
MONITOR OUTCOMPONENT VIDEO OUT
RLAUDIO IN
(DVD ONLY)
VIDEO
(DVD ONLY)
S VIDEO
YP
B
/C
B
P
R
/C
R
Screws*
DZ750K
A SPEAKER jacks (19)
B DIR-TC1 slot for the WAHT-SD1 (33)
C TV/VIDEO (AUDIO IN R/L) jacks (33)
D DMPORT (DIGITAL MEDIA PORT) jack
(33, 73)
E MONITOR OUT (S VIDEO/VIDEO) jacks
(29)
F AM terminal (19)
G COAXIAL FM 75Ω jack (19)
H COMPONENT VIDEO OUT jacks (29)
I HDMI OUT jack (29)
J D-LIGHT SYNC OUT (Singaporean
mo
(Terminals for TH destination are
same as those for SP destination.)
del only) jack (33)
* CAUTION
Please do not remove the screws before
installing the WAHT-SD1.
D-LIGHT SYNC OUT
COAXIAL
AM
FM75
(DVD ONLY)
OUT
DMPORT
DIR-TC1
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
SPEAKER
SPEAKER
TV /
VIDEO
MONITOR OUTCOMPONENT VIDEO OUT
RLAUDIO IN
(DVD ONLY)
VIDEO
(DVD ONLY)
S VIDEO
YP
B
/C
B
P
R
/C
R
Screws*
