6-26. PRINTED WIRING BOARD – S-AIR-CON Board (DZ570K/DZ777K) –
• : Uses unleaded solder.• See page 31 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
23456789101112
216
171
11
1
2
29
30
42
EZW-T100
(S-AIR TRANSMITTER)

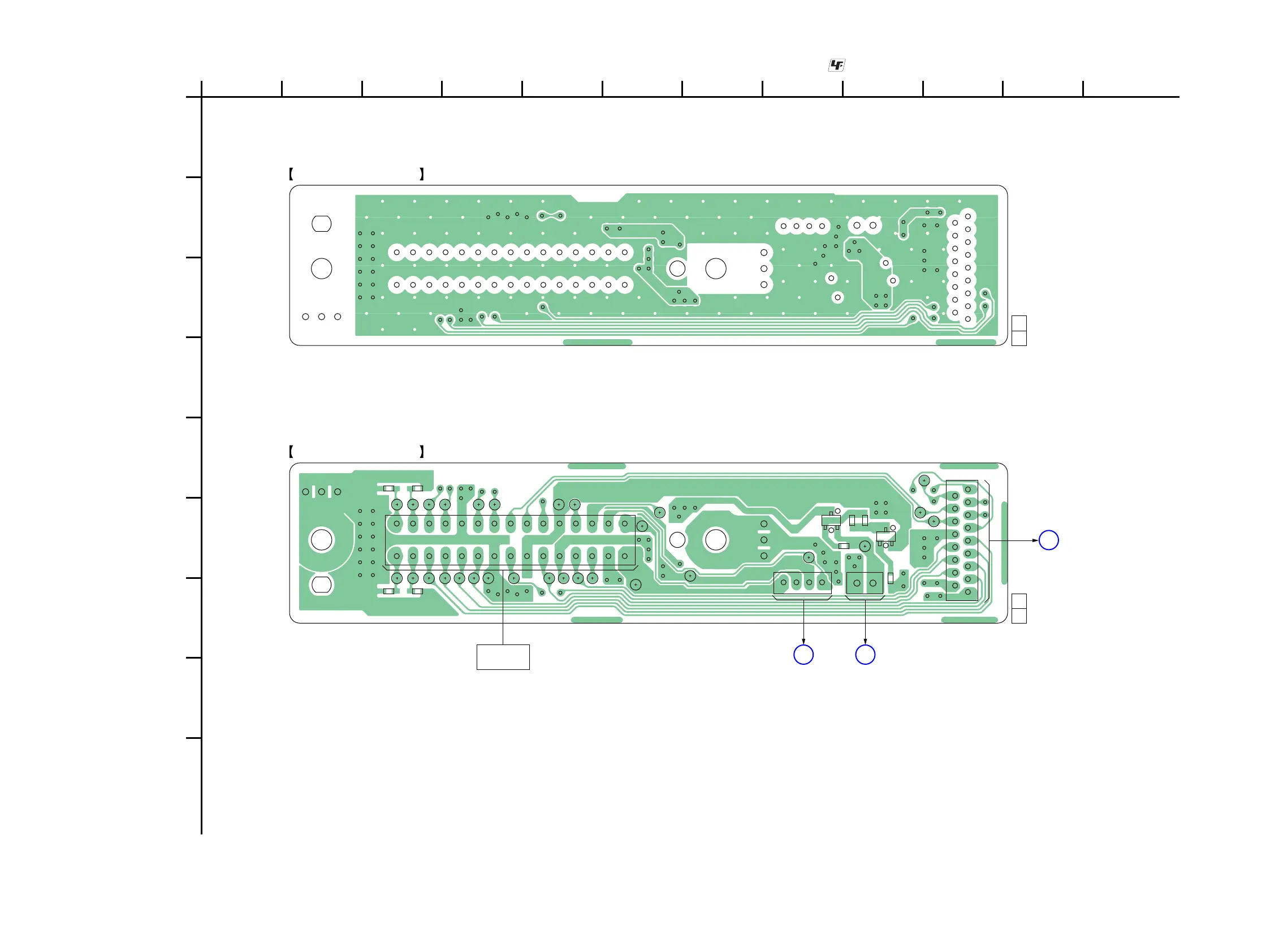

S-AIR-CON BOARD (SIDE A) (DZ570K/DZ777K)
S-AIR-CON BOARD (SIDE B) (DZ570K/DZ777K)
11
(11)
1-876-186-
11
(11)
1-876-186-
MAIN
BOARD
CN651
K
POWER
BOARD
CN908
T
IO-COMPONENT
BOARD
CN408
S
Q120
Q121
CL212
CL213
CL214
CL215
CL216
CL217
CL218
CL219
CL220
CL221
CL222
CL223
CL224
CL226
CL227
CL228
CL229
CL230
CL231
CL232
CL233
CL235
CL236
CL237
CL239
R195
R197
R199
CL241
CL242
CN113
R198R200
R194 R196
E
E
CN112
R193
CN110 CN111
CL238CL240
(Page 52) (Page 60)
(Page 40)
